Schwinn LED Solar Powered Bike Light Instruction Manual

1. Product Overview

This manual provides instructions for the Schwinn LED Solar Powered Bike Light set, which includes a headlight and a taillight. This system is designed to enhance visibility during cycling by utilizing solar energy for battery recharging.

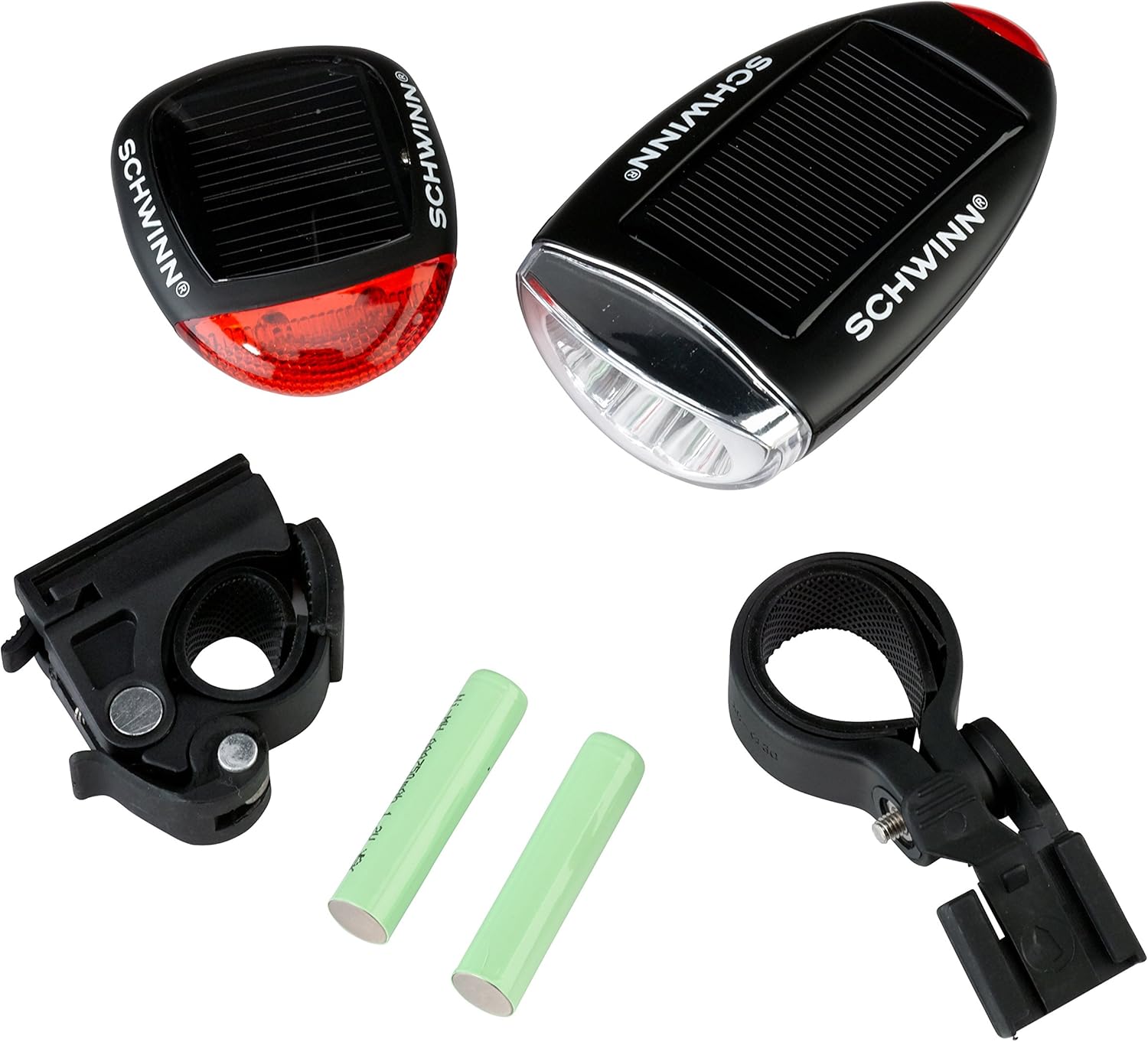

Image 1.1: Components of the Schwinn LED Solar Powered Bike Light set, including the headlight, taillight, mounting hardware, and rechargeable batteries.

2. Setup and Installation

2.1 Unpacking

Carefully remove all components from the packaging. Verify that you have the headlight, taillight, mounting brackets, and any included batteries.

Image 2.1: Front view of the product packaging, showing the headlight and taillight.

2.2 Battery Installation and Initial Charge

The lights operate on rechargeable batteries. Ensure batteries are correctly inserted into their respective compartments. For optimal performance, allow the lights to charge in direct sunlight for at least 8 hours before first use. The solar panels are located on the top surface of both the headlight and taillight.

2.3 Headlight Mounting

1. Select a suitable position on your bicycle's handlebar.
2. Attach the headlight mounting bracket to the handlebar. Tighten securely to prevent rotation during use.
3. Slide the headlight onto the mounted bracket until it clicks into place. Ensure the light is facing forward and is level.

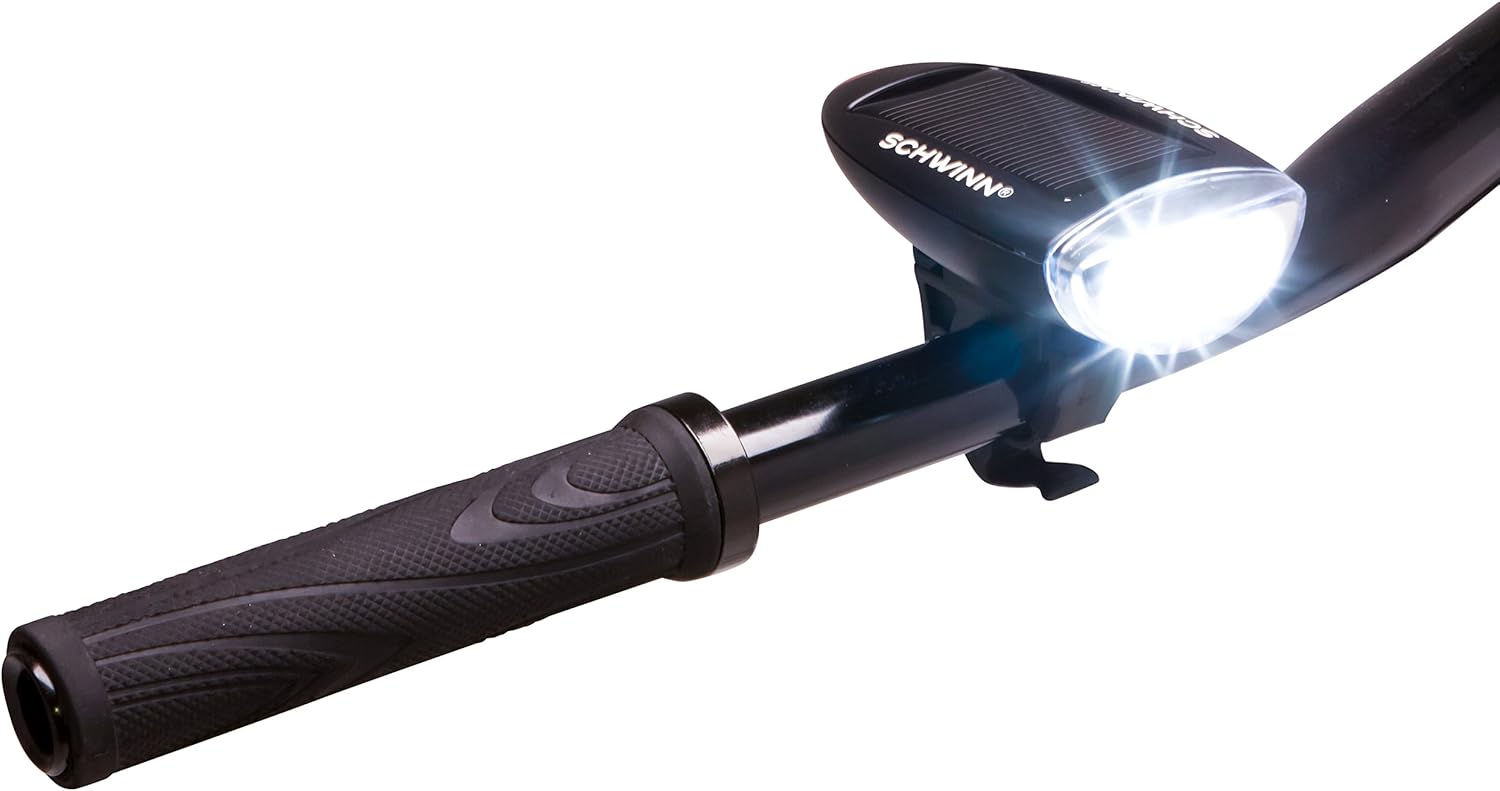

Image 2.2: The Schwinn LED Headlight securely mounted on a bicycle handlebar, ready for use.

2.4 Taillight Mounting

1. Choose a position on your bicycle's seat post that allows for clear visibility from the rear.
2. Attach the taillight mounting bracket to the seat post. Tighten securely.
3. Slide the taillight onto the mounted bracket. Ensure the light is facing directly backward and is level.

Image 2.3: The Schwinn LED Taillight mounted on a bicycle seat post, positioned for maximum rear visibility.

3. Operating Instructions

3.1 Power On/Off

To turn on or off either the headlight or taillight, press the power button located on each unit. A single press typically cycles through modes or turns the unit on/off.

3.2 Taillight Modes

The taillight features three distinct operating modes to suit various riding conditions:

• Rapid Flash: Provides high visibility with quick, intermittent flashes.
• Slow Flash: Offers a steady, slower flashing pattern for visibility.
• Steady: Maintains a constant illumination.

Cycle through these modes by pressing the power button on the taillight.

3.3 Solar Charging

Both the headlight and taillight are equipped with solar panels for recharging. For effective charging, ensure the solar panels are exposed to direct sunlight. The lights will charge automatically when exposed to light, reducing the need for manual battery replacement.

4. Maintenance

4.1 Cleaning

To maintain optimal performance, regularly clean the solar panels and LED lenses with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the plastic or electronic components.

4.2 Battery Care

While the lights are solar-powered, prolonged periods without sunlight may deplete the batteries. If the lights are stored for an extended time or used frequently in low-light conditions, ensure they receive adequate sunlight exposure to recharge. The front light uses NiMH AAA batteries, which can be replaced if necessary. The rear light's battery is internal and not user-replaceable.

4.3 Water Exposure

The Schwinn LED Solar Powered Bike Light has an International Protection Rating of IPX4, meaning it is resistant to splashing water from any direction. However, it is not water resistant for submersion. Avoid exposing the lights to heavy rain or submerging them in water to prevent damage.

5. Troubleshooting

5.1 Light Not Turning On

• Ensure the batteries are correctly installed and fully charged.
• Expose the solar panels to direct sunlight for several hours to recharge.
• Check for any visible damage to the light unit or battery compartment.

5.2 Light Not Charging

• Verify that the solar panel is clean and unobstructed.
• Ensure the light is placed in direct sunlight for an adequate duration (minimum 8 hours for a full charge).
• Confirm that the ambient temperature is suitable for charging (extreme cold or heat can affect battery performance).

5.3 Mounting Issues

• If the light rotates or feels loose, re-tighten the mounting bracket screws.
• Ensure the bracket is compatible with your handlebar/seat post diameter.

6. Specifications

7. Warranty and Support

For warranty information, product support, or to inquire about replacement parts, please contact Schwinn customer service directly. Refer to the official Schwinn website or product packaging for the most current contact details.
