George Foreman GR10ABW Grill with Bun Warmer - Instruction Manual

Introduction

Welcome to your new George Foreman GR10ABW Grill with Bun Warmer. Designed for healthy indoor cooking, this compact electric grill allows you to prepare delicious meals with less fat and easy cleanup. Its patented sloped design helps drain fat away from food, and the non-stick plates ensure effortless food release. The integrated bun warmer adds convenience, allowing you to heat buns or bread while grilling.

Important Safety Information

• Read all instructions before using the appliance.
• Do not immerse the electrical components (control panel, power cord, or plug) in water or other liquids.
• Close supervision is necessary when any appliance is used by or near children.
• Always unplug the grill from the outlet when not in use and before cleaning. Allow to cool before handling parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors. This appliance is for indoor use only.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• To disconnect, turn any control to 'off', then remove the plug from the wall outlet.
• Do not use the appliance for other than intended use.
• Always attach plug to appliance first, then plug cord into the wall outlet.

Product Overview

The George Foreman GR10ABW Grill with Bun Warmer is designed for efficiency and ease of use. It features double non-stick coated grilling plates, an indicator light for optimal cooking temperature, and a convenient drip tray to collect excess fat. The unique floating hinge accommodates various food thicknesses, ensuring even cooking. This model also includes a bun warmer on top for added versatility.

Image: The George Foreman GR10ABW Grill with Bun Warmer shown open, revealing the top and bottom non-stick grilling plates. The unit is black with a silver trim, and the power cord is visible.

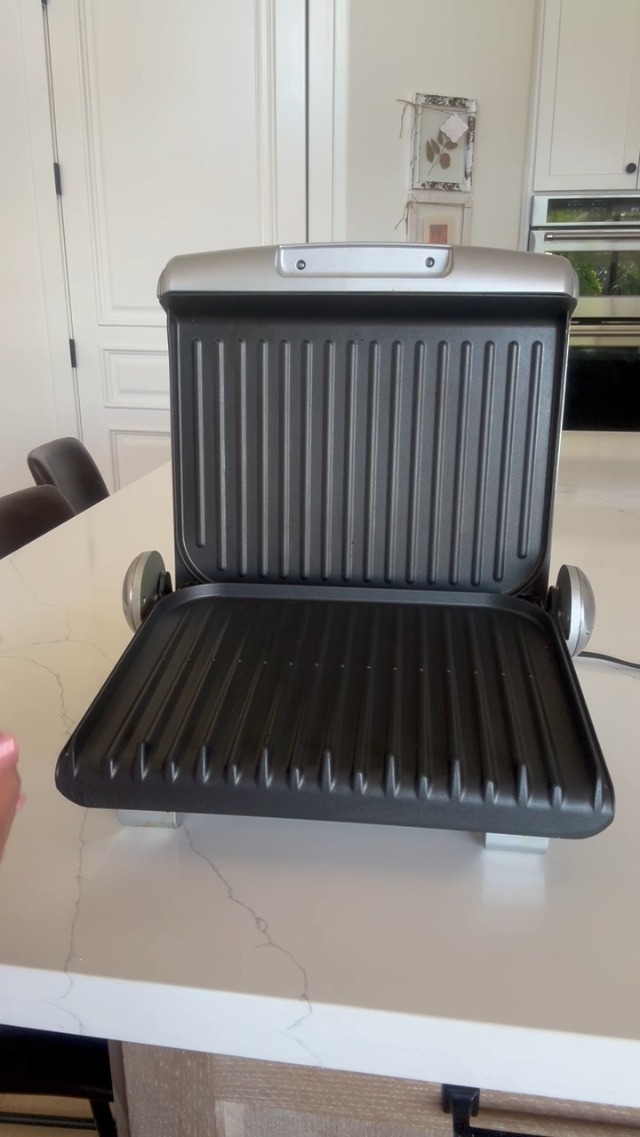

Image: A close-up view of the George Foreman GR10ABW Grill's interior, highlighting the non-stick grilling plates and the integrated drip tray at the front, designed to collect fat and juices.

Setup

1. Unpack: Carefully unpack all components and remove any packaging materials.
2. Initial Cleaning: Before first use, wash the grilling plates and drip tray with warm, soapy water. Rinse thoroughly and dry completely.
3. Placement: Place the grill on a stable, heat-resistant, and level surface, away from walls or cabinets.
4. Insert Drip Tray: Ensure the drip tray is correctly inserted into the front of the grill to collect excess fat and juices.
5. Connect Control Panel: Firmly connect the removable control panel into the designated slot at the back of the grill.

Operating Instructions

Preheating

1. Plug In: Plug the grill into a standard electrical outlet. The indicator light will illuminate.
2. Preheat: Allow the grill to preheat for approximately 3-4 minutes. The indicator light will turn off when the grill has reached its optimal cooking temperature, indicating it is ready for use.

Grilling

1. Prepare Plates: For best results and to prevent sticking, lightly spray the non-stick grilling plates with a non-stick cooking spray before placing food.
2. Place Food: Place your food (e.g., burgers, chicken, steaks) directly onto the bottom grilling plate. The floating hinge design accommodates various food thicknesses for even cooking.
3. Close Lid: Close the top lid.
4. Cook: Cook according to desired doneness. General cooking guidelines for typical items:
   • Burgers (1/4 lb): 4-7 minutes
   • Chicken Breasts (boneless, skinless): 5-8 minutes
   • Steaks (1/2 inch thick): 4-7 minutes

Using the Bun Warmer

The integrated bun warmer allows you to gently heat buns or bread while your main course cooks. Simply place items on the warming surface located on top of the grill during the last few minutes of grilling.

Maintenance and Cleaning

1. Cool Down: Always unplug the grill from the electrical outlet and allow it to cool completely before cleaning.
2. Remove Drip Tray: Remove the drip tray from the front of the grill.
3. Detach Control Panel: Carefully detach the removable control panel from the back of the grill.
4. Dishwasher Safe Parts: The grilling plates and drip tray are dishwasher safe for convenient cleaning.
5. Hand Washing: Alternatively, hand wash the grilling plates and drip tray with warm, soapy water and a non-abrasive sponge. Rinse thoroughly and dry.
6. Exterior Cleaning: Wipe the exterior of the grill base with a damp cloth. Do not immerse the grill base or control panel in water.

Troubleshooting

• Grill not heating: Ensure the control panel is securely attached and the unit is plugged into a working electrical outlet.
• Food sticking: Always preheat the grill fully until the indicator light turns off. Consider using a light coating of non-stick cooking spray on the plates.
• Uneven cooking: Ensure food is placed evenly on the plates and the floating hinge is properly engaged to allow the top plate to rest flat on the food.

Specifications

• Brand: George Foreman
• Model Name: GR10ABW
• Special Feature: Grease Management System
• Color: Teal and Silver
• Fuel Type: Electric
• Recommended Uses: Indoor
• Finish Type: Non-Stick
• Item Dimensions (L x W x H): 10.6 x 9.5 x 6.7 inches
• Included Components: Drip tray, plastic spatula
• Material: Plastic
• Item Weight: 4.45 Pounds
• Wattage: 1000 watts
• Main Burner Count: 2
• Number of Racks: 1
• Number of Power Levels: 3
• Heating Elements: 1
• Grill Configuration: Portable
• Manufacturer: Applica Consumer Products
• UPC: 082846023245

Warranty and Support

This George Foreman GR10ABW Grill is manufactured by Applica Consumer Products. For detailed warranty information, product registration, or customer support, please refer to the full warranty card included in your product packaging or visit the official George Foreman website. Keep your purchase receipt as proof of purchase for any warranty claims.
