Introduction
This manual provides important instructions for the safe and correct installation, operation, and maintenance of your Beko Genuine 1800 Watt Turbo Oven Fan Element, part number 462900010. This element is a critical component for ensuring efficient and even heating in compatible ovens. Please read this manual thoroughly before attempting any installation or maintenance.
Safety Information
- Always disconnect the oven from the main power supply before attempting any installation, maintenance, or repair. Failure to do so can result in electric shock or serious injury.
- Only qualified personnel should perform electrical repairs or installations. If you are unsure, consult a professional.
- Wear appropriate personal protective equipment, such as gloves, to prevent cuts or burns.
- Ensure all connections are secure and correctly insulated after installation.
- Keep children and pets away from the work area during installation.
Compatibility
This 1800 Watt Turbo Oven Fan Element (Part Number 462900010) is a genuine replacement part compatible with a range of Beko, Altus, Blomberg, and Leisure oven models. Known compatible models include, but are not limited to:
- Beko al6cdw
- Beko ap10frk
- Beko cm10frc/10 frk
- Beko d533s/533 W/65
- Other Altus, Blomberg, and Leisure models requiring part 462900010.
Always verify the part number on your existing element or consult your oven's service manual to confirm compatibility before purchase and installation.
Setup (Installation)
Follow these steps carefully to install the new fan element:
- Power Disconnection: Ensure the oven is completely disconnected from the electrical supply at the wall socket or circuit breaker.
- Access the Element: Open the oven door and locate the fan element, typically at the rear of the oven cavity. You may need to remove the oven's back panel or fan cover, which is usually secured by screws.
- Disconnect Wiring: Carefully disconnect the electrical wires from the terminals of the old element. Note their positions for correct re-connection.
- Remove Old Element: Unscrew or unclip the old element from its mounting points and carefully remove it from the oven.
- Install New Element: Position the new Beko 462900010 element in the same location as the old one. Secure it with the screws or clips.
- Connect Wiring: Reconnect the electrical wires to the terminals of the new element, ensuring they are secure and correctly positioned.
- Reassemble: Replace any covers or panels that were removed.
- Visual Inspection: Double-check all connections and ensure no tools or debris are left inside the oven.

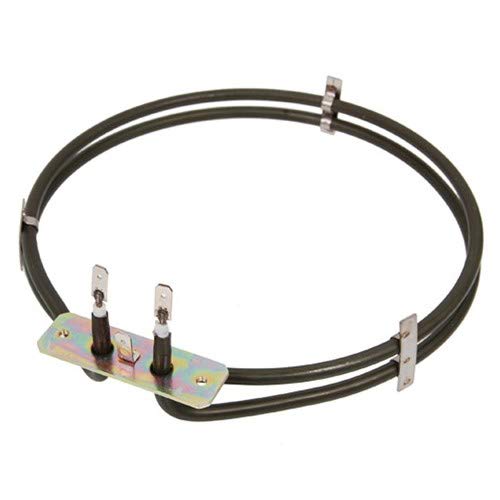

Image: The Beko Genuine 1800 Watt Turbo Oven Fan Element, part number 462900010. This image shows the circular heating element with its electrical terminals, ready for installation into a compatible oven.
Operating (Testing)
After successful installation, perform the following test:
- Restore Power: Reconnect the oven to the main power supply.
- Initial Test: Set the oven to a fan-assisted heating mode at a moderate temperature (e.g., 180°C / 350°F).
- Observe Heating: Allow the oven to preheat. The element should begin to glow red and the oven should reach the set temperature.
- Check Fan Operation: Ensure the fan is operating smoothly, distributing heat evenly.
- Monitor for Issues: Listen for unusual noises or observe for any smoke or burning smells. If any issues arise, immediately disconnect power and refer to the Troubleshooting section.
Maintenance
The fan element itself requires minimal maintenance. However, regular inspection can prolong its life and ensure optimal oven performance:
- Periodic Inspection: Annually, or if you notice reduced heating performance, disconnect the oven from power and visually inspect the element for any signs of damage, such as cracks, bulges, or discoloration.
- Cleaning: The element should not be cleaned directly. Any food spills or debris in the oven cavity should be cleaned according to your oven's manufacturer instructions, ensuring the oven is cool and disconnected from power.
- Professional Check: If you suspect an issue but cannot identify it, consult a qualified appliance technician.
Troubleshooting
If you encounter problems after installing the new element, consider the following:
| Problem | Possible Cause | Solution |
|---|---|---|
| Oven not heating or heating unevenly after element replacement. | Incorrect wiring connection; faulty new element; tripped circuit breaker. | Disconnect power, recheck all wiring connections. Check the circuit breaker. If issues persist, the element may be faulty (contact supplier). |
| Element not glowing. | No power to the oven; loose connection; element failure. | Ensure oven is plugged in and power is on. Disconnect power, check connections. If still not working, the element may be faulty. |
| Burning smell during first use. | Residual manufacturing oils burning off. | This is often normal for a new element. Run the oven empty at high temperature for 30-60 minutes in a well-ventilated area. If smell persists or is accompanied by smoke, disconnect power and inspect. |
If troubleshooting steps do not resolve the issue, it is recommended to contact a qualified appliance technician.
Specifications
- Part Number: 462900010
- Type: Turbo (Circular) Fan Element
- Power: 1800 Watt
- Voltage: 240 V
- Brand: Beko Genuine Part
- ASIN: B002YQURC4
Warranty and Support
As a genuine Beko part, this element is manufactured to high standards. For warranty information, please refer to the terms and conditions provided by your retailer or Beko's official website. Keep your proof of purchase for any warranty claims.
For technical support or further assistance, please contact the retailer from whom you purchased this part or visit the official Beko support channels.
