Hayward AXV230DWH Automatic Pool Cleaner Lower Body Instruction Manual

Introduction

This instruction manual provides essential information for the proper installation and maintenance of the Hayward AXV230DWH Automatic Pool Cleaner Lower Body. This component is a genuine replacement part designed to restore the functionality of your automatic pool cleaner. Please read these instructions thoroughly before proceeding with installation.

Compatibility

The Hayward AXV230DWH Lower Body is compatible with the following Hayward automatic pool cleaner models:

• Hayward Pool Vac (All models)
• Hayward Navigator (All models)

Ensure your pool cleaner model is listed above for proper fit and function.

Safety Information

Always observe basic safety precautions when working with pool equipment. Failure to do so may result in personal injury or equipment damage.

• Disconnect Power: Before performing any service or maintenance on your pool cleaner, ensure the pool pump and cleaner are turned off and unplugged from their power source.
• Read Instructions: Carefully read and understand all instructions before installation or service.
• Use Proper Tools: Use only appropriate tools for the task to prevent damage to the part or injury.
• Keep Children Away: Keep children and unauthorized persons away from the work area.

Installation Instructions

Follow these steps to replace the lower body of your Hayward automatic pool cleaner:

1. Prepare the Cleaner: Turn off and unplug the automatic pool cleaner from its power source.
2. Locate and Remove Old Part: Identify the existing lower body component. Carefully remove any fasteners (e.g., screws) securing it to the main cleaner assembly.
3. Detach Old Lower Body: Gently detach the old lower body from the pool cleaner. Note its orientation for correct installation of the new part.
4. Align New Lower Body: Position the new Hayward AXV230DWH lower body, ensuring it aligns correctly with the mounting points on the pool cleaner.
5. Secure New Lower Body: Re-attach the new lower body using the original fasteners. Ensure all connections are secure but do not overtighten.
6. Verify Operation: Restore power to the pool cleaner and observe its operation to confirm the new lower body is functioning correctly.

Figure 1: The Hayward AXV230DWH Automatic Pool Cleaner Lower Body. This component forms the base structure of the pool cleaner, housing internal mechanisms and providing attachment points for other parts.

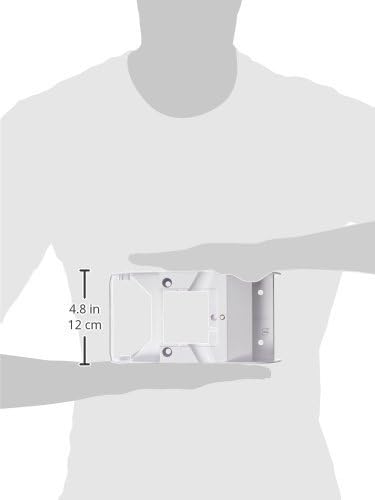

Figure 2: Illustrative image showing the approximate dimensions of the lower body, indicating a height of 4.8 inches (12 cm) for reference during installation or part identification.

Maintenance

To ensure the longevity and optimal performance of your pool cleaner and its new lower body, consider the following general maintenance tips:

• Regular Inspection: Periodically inspect the lower body and other cleaner components for signs of wear, cracks, or damage.
• Cleanliness: Keep the pool cleaner free from debris and obstructions that could impede its movement or damage its parts.
• Storage: When not in use for extended periods, store the pool cleaner in a clean, dry, and shaded area to protect it from harsh elements.

Troubleshooting

If your pool cleaner does not operate as expected after replacing the lower body, consider these general troubleshooting steps:

• Check Connections: Ensure all fasteners are securely tightened and the lower body is correctly seated.
• Power Supply: Verify that the pool cleaner is properly plugged in and receiving power.
• Other Components: Inspect other parts of the pool cleaner for damage or wear that might be affecting overall performance. Refer to your cleaner's main instruction manual for comprehensive troubleshooting.
• Professional Assistance: If issues persist, contact a qualified pool equipment technician or Hayward customer support.

Specifications

Warranty Information

This Hayward AXV230DWH Automatic Pool Cleaner Lower Body comes with a Limited Warranty. For specific details regarding warranty coverage, duration, and claims process, please refer to the official Hayward warranty documentation provided with your original pool cleaner or visit the Hayward official website.

Customer Support

For further assistance, technical support, or inquiries regarding the Hayward AXV230DWH Lower Body, please contact Hayward customer service or visit their official website. You may also refer to the complete instruction manual for your specific Hayward automatic pool cleaner model.

Hayward Official Website: www.hayward.com
