Briggs & Stratton 494553 Valve Keeper Instruction Manual

Introduction

This manual provides essential information for the proper handling, installation, and maintenance context of the Briggs & Stratton 494553 Valve Keeper. This component is a genuine Original Equipment Manufacturer (OEM) part designed to ensure the correct operation of your Briggs & Stratton engine's valve train. It replaces the old Briggs & Stratton part number 93630.

The valve keeper is a small but critical component that secures the valve spring retainer to the valve stem, preventing the valve from dropping into the cylinder. Proper installation is crucial for engine performance and longevity.

Product Overview

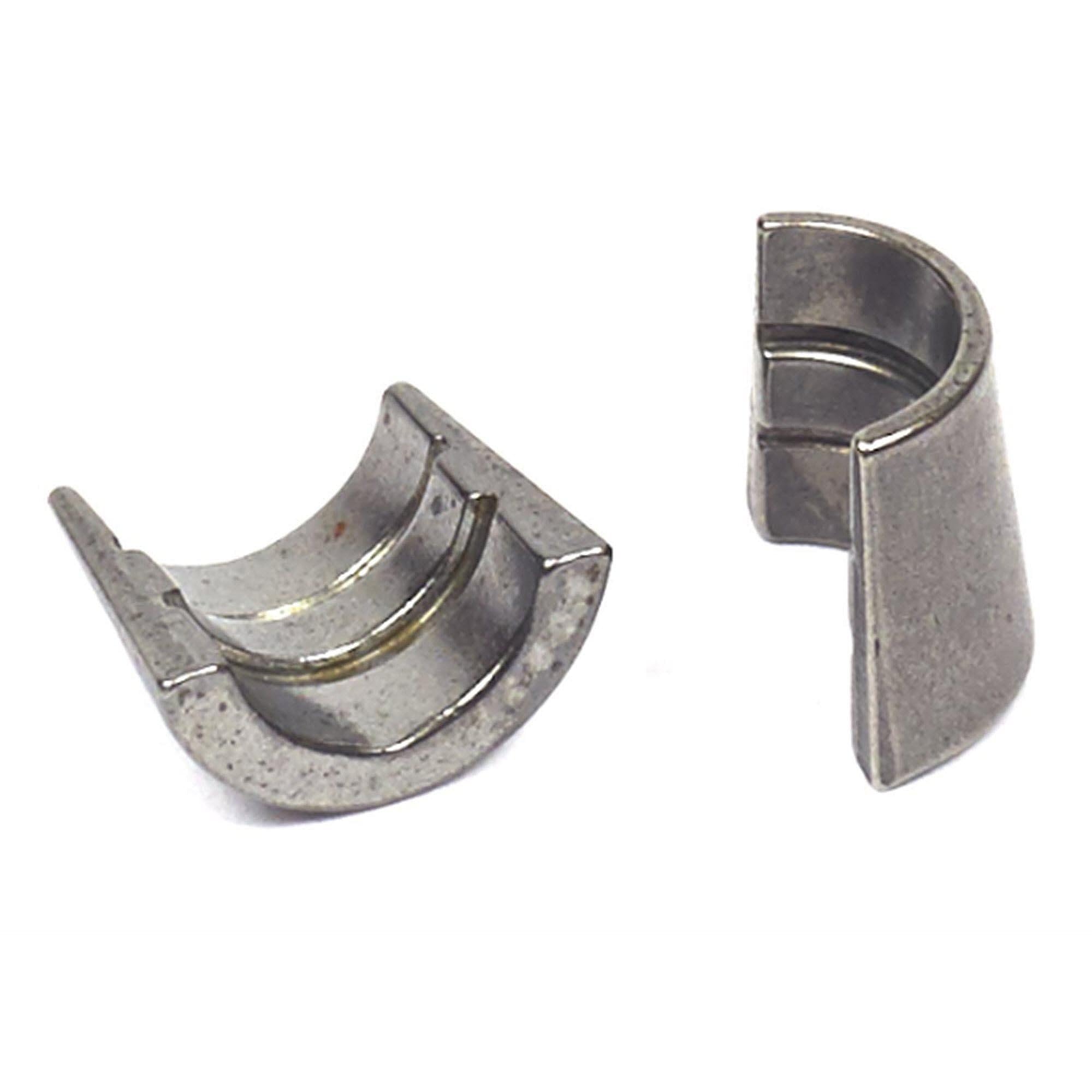

Image: The Briggs & Stratton 494553 Valve Keeper, a small metal component essential for valve train assembly.

The Briggs & Stratton 494553 Valve Keeper is manufactured to precise specifications to ensure compatibility and reliable performance with Briggs & Stratton engines. It is designed to withstand the forces exerted by the valve springs during engine operation.

Installation (Setup)

Safety First: Always ensure the engine is cool, disconnected from its power source (e.g., spark plug wire removed), and stable before beginning any service. Wear appropriate personal protective equipment, including safety glasses.

Required Tools:

• Valve spring compressor tool
• Socket set and wrenches
• Feeler gauges (for valve lash adjustment, if applicable)
• Engine service manual (specific to your engine model)

Installation Steps:

1. Engine Disassembly: Carefully remove engine components as necessary to gain access to the cylinder head and valve train. This may include the fuel tank, carburetor, air filter, and valve cover. Refer to your engine's specific service manual for detailed disassembly instructions.
2. Valve Spring Compression: Position the valve spring compressor tool over the valve spring and retainer. Compress the valve spring sufficiently to expose the valve keepers.
3. Remove Old Keepers: Once the spring is compressed, carefully remove the old valve keepers. Note their orientation.
4. Inspect Components: Inspect the valve stem, valve spring, and spring retainer for any signs of wear, damage, or fatigue. Replace any worn components as needed.
5. Install New Keepers: Place the new Briggs & Stratton 494553 Valve Keepers onto the valve stem in the correct orientation. Ensure they are seated properly in the grooves of the valve stem.
6. Release Spring Compressor: Slowly and carefully release the valve spring compressor, ensuring the valve spring retainer seats correctly over the new keepers. Verify that the keepers are securely holding the retainer.
7. Reassembly: Reassemble all engine components in reverse order of disassembly. Pay close attention to torque specifications for fasteners, especially the cylinder head bolts and valve cover bolts, as specified in your engine's service manual.
8. Valve Lash Adjustment: If your engine requires valve lash adjustment, perform this step according to the engine service manual after reassembly.

Important: Always consult your specific Briggs & Stratton engine service manual for detailed, model-specific instructions and torque specifications. Incorrect installation can lead to severe engine damage.

Operation

The Briggs & Stratton 494553 Valve Keeper is a static mechanical component and does not have operational controls. Its function is integral to the engine's valve train operation. Once correctly installed, it works continuously to secure the valve spring retainer, allowing the valves to open and close precisely as dictated by the camshaft.

Proper installation ensures the valve train operates smoothly, contributing to optimal engine performance, fuel efficiency, and emission control.

Maintenance

Valve keepers themselves do not require routine maintenance. However, their condition should be inspected whenever the engine's valve train is accessed for other service or repair.

Inspection Points:

• Wear: Check for any signs of wear on the keeper's contact surfaces with the valve stem and retainer.
• Damage: Look for cracks, deformation, or any other physical damage.
• Seating: Ensure the keepers are properly seated in the valve stem grooves and securely hold the retainer.

If any wear or damage is observed, the valve keepers should be replaced immediately to prevent potential engine failure. Always use genuine Briggs & Stratton replacement parts to maintain engine integrity and performance.

Troubleshooting

Issues related to valve keepers typically stem from incorrect installation or severe wear/damage, leading to valve train malfunction.

Symptoms of a Faulty Valve Keeper:

• Valve Drop: The most severe symptom, where the valve keeper fails, causing the valve to drop into the cylinder. This results in catastrophic engine damage.
• Engine Misfire: If a keeper is partially dislodged or worn, it can affect valve timing or seating, leading to misfires.
• Loss of Compression: Improper valve seating due to keeper issues can cause a loss of compression in the affected cylinder.
• Unusual Engine Noises: Clicking or tapping noises from the valve cover area may indicate loose or damaged valve train components, including keepers.

Diagnostic Steps:

1. Visual Inspection: If possible, remove the valve cover and visually inspect the valve keepers and spring retainers for proper seating and any visible damage.
2. Compression Test: Perform a compression test on all cylinders. Low compression in a specific cylinder can point to valve train issues.
3. Consult Service Manual: Refer to your engine's service manual for specific diagnostic procedures related to valve train components.

If a valve keeper is suspected to be faulty, it is recommended to replace it immediately to prevent further engine damage. Always use genuine Briggs & Stratton parts.

Specifications

Warranty Information

Briggs & Stratton genuine parts are backed by the manufacturer's warranty against defects in material and workmanship. The specific terms and duration of the warranty may vary. Please retain your proof of purchase. For detailed warranty information, refer to the official Briggs & Stratton website or contact their customer support.

Support and Contact

For further assistance, technical support, or to locate an authorized service dealer, please refer to the official Briggs & Stratton resources:

• Official Website: Visit the Briggs & Stratton website for product information, FAQs, and service locator.
• Engine Service Manuals: Always consult the specific service manual for your engine model for detailed repair and maintenance procedures.
• Customer Service: Contact Briggs & Stratton customer support for direct assistance with parts or engine-related inquiries.
