GLI Pool Products 16 x 32 Foot Rectangle Safety Pool Cover User Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your GLI Pool Products 16 x 32 Foot Rectangle Safety Pool Cover. Please read this manual thoroughly before attempting to install or use the product to ensure safety and optimal performance.

The GLI Pool Products Original Mesh Safety Cover is designed to provide a barrier against accidental entry into your swimming pool, filtering debris while allowing water to drain through. This specific cover is sized for a 16' x 32' rectangular pool, with an actual cover size of 18' x 34' to provide a 1-foot overlap on all sides for secure anchoring.

Image 1.1: The GLI Pool Products 16 x 32 Foot Rectangle Safety Pool Cover, showcasing its green mesh material and rectangular shape.

2. Safety Information

Always prioritize safety during installation and use. This safety cover is intended to reduce the risk of accidental drowning but is not a substitute for constant adult supervision. Adhere to all local building codes and safety regulations.

• Ensure the cover is properly secured at all anchor points before leaving the pool area unattended.
• Do not walk or stand on the pool cover. While designed for safety, it is not a walking surface.
• Keep children and pets away from the pool area during installation and removal of the cover.
• Inspect the cover and all hardware regularly for wear, damage, or loose connections. Replace damaged components immediately.
• Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

3. Package Contents

Verify that all components are present and undamaged before beginning installation. Contact customer support if any items are missing or damaged.

• 16 x 32 Foot Rectangle Safety Pool Cover (Forest Green)
• Brass Anchors (for concrete decks)
• Stainless Steel Springs
• Installation Tool
• Storage Bag

4. Setup and Installation

Proper installation is crucial for the safety and effectiveness of your pool cover. This cover is designed for rectangular pools only and will not accommodate a step section. Installation requires drilling into concrete for anchor placement.

4.1 Site Preparation

• Ensure the pool deck area around the pool is clean and free of debris.
• Confirm that the pool is filled to its normal operating level.
• Clear any obstacles or sharp edges around the pool perimeter that could damage the cover.

4.2 Anchor Placement and Drilling

The cover requires brass anchors to be installed into your concrete deck. The actual cover size is 18' x 34', providing a 1-foot overlap on each side. Mark the anchor points precisely, ensuring they are equidistant and aligned for proper tension.

• Lay the cover over the pool, centering it to ensure the 1-foot overlap on all sides.
• Identify the location for each anchor point, typically aligned with the straps on the cover.
• Using an appropriate drill bit for concrete, drill holes at each marked anchor point. Ensure the drill is held perfectly perpendicular to the concrete surface to ensure anchors are installed straight.
• Insert the brass anchors into the drilled holes.

4.3 Attaching Springs and Securing the Cover

Once anchors are in place, attach the stainless steel springs to the cover straps and then to the brass anchors. Use the provided installation tool to stretch the springs and hook them onto the anchors, ensuring even tension around the entire perimeter.

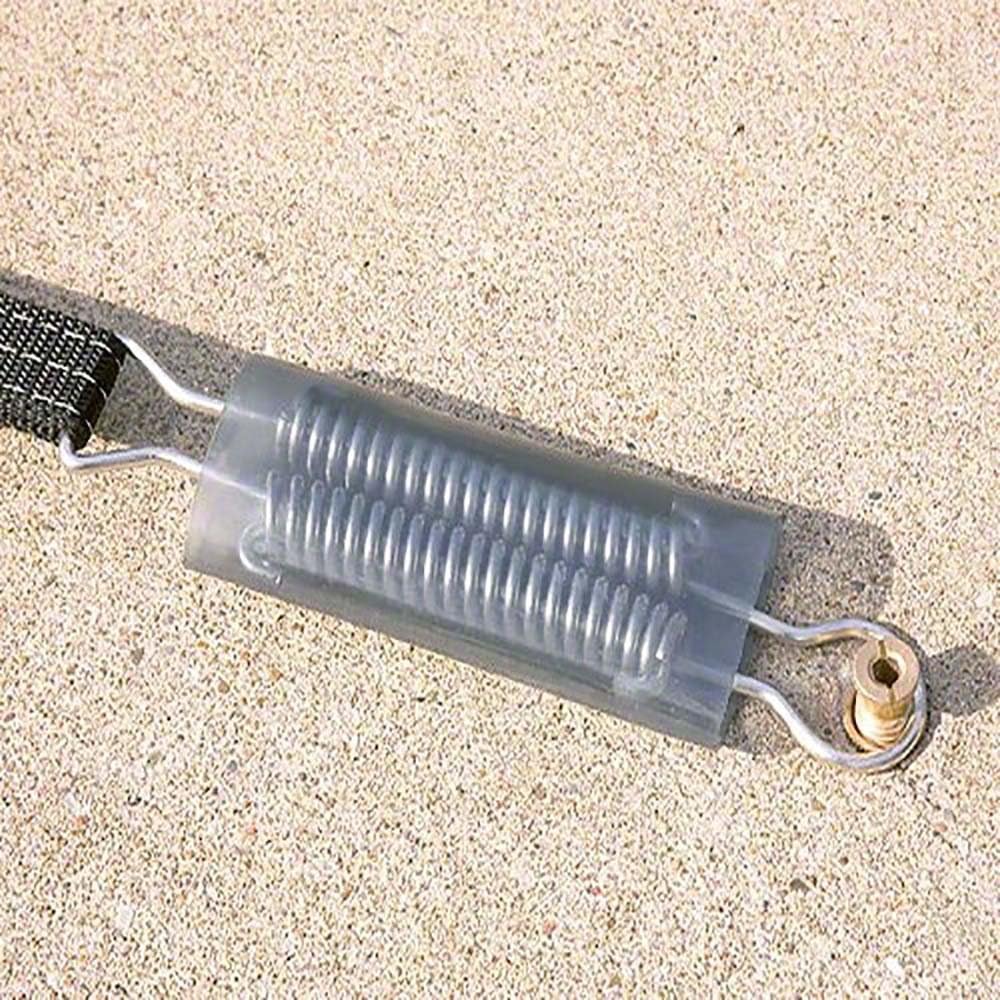

Image 4.1: Detail of a stainless steel spring connected to a brass anchor, illustrating the securing mechanism.

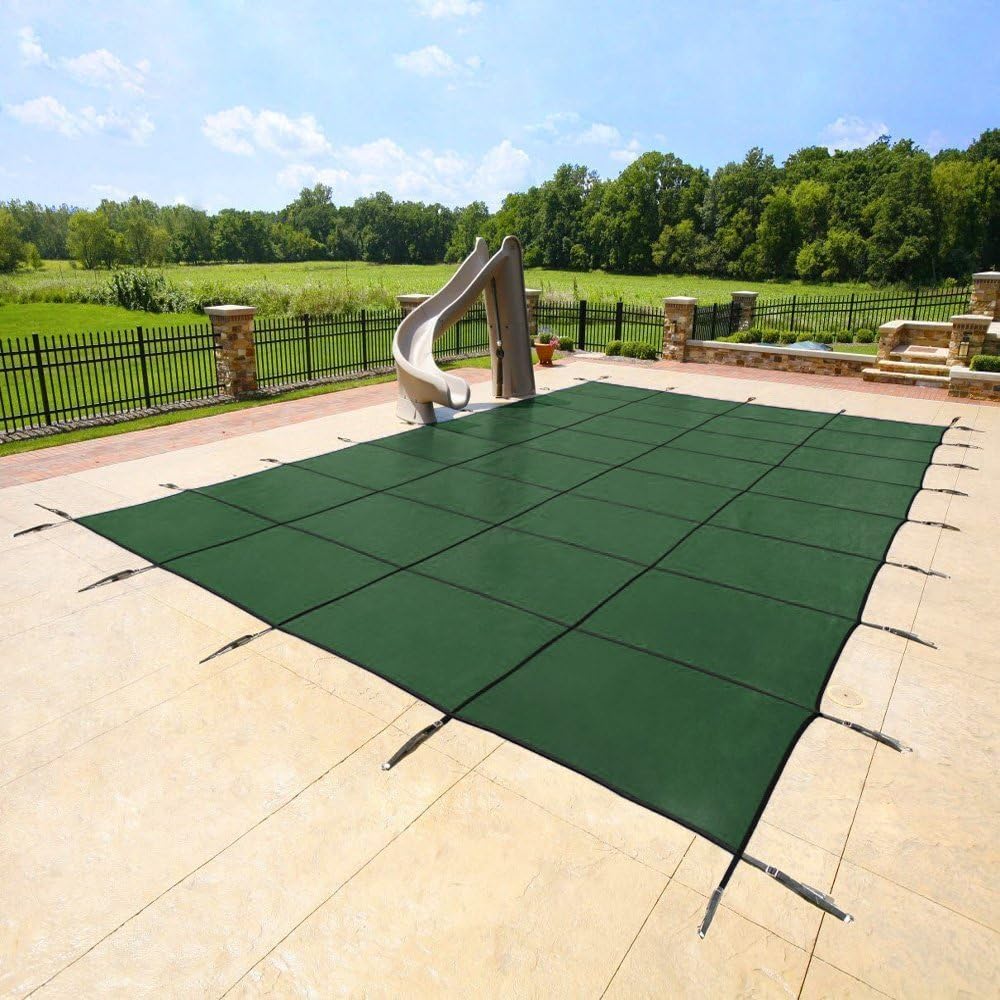

Image 4.2: The safety cover fully installed on a rectangular pool, demonstrating proper tension and coverage.

5. Operation and Usage

The GLI Pool Products safety cover is designed for seasonal use, typically during the off-season to protect the pool and prevent accidental entry. Its mesh construction allows water to drain through while filtering out leaves and large debris.

5.1 Covering the Pool

• Ensure the pool is clean and free of large floating debris before covering.
• Carefully spread the cover over the pool, aligning it with the anchor points.
• Attach all springs to their respective anchors using the installation tool, ensuring the cover is taut and secure across the entire pool surface.

5.2 Uncovering the Pool

• Before removing the cover, clear any accumulated debris from its surface.
• Use the installation tool to detach the springs from the anchors, working systematically around the pool.
• Carefully fold or roll the cover for storage.

6. Maintenance

Regular maintenance will extend the life of your pool cover and ensure its continued effectiveness.

• Cleaning: Periodically clean the cover surface to remove accumulated dirt, leaves, and other debris. A soft brush and mild soap solution can be used, followed by rinsing with water.
• Inspection: Regularly inspect the cover for any signs of wear, tears, fraying, or damage to the mesh material or straps. Check springs and anchors for corrosion or deformation.
• Storage: When not in use, clean the cover thoroughly, allow it to dry completely, and store it in the provided storage bag in a cool, dry place away from direct sunlight and pests. This prevents mildew and material degradation.
• Anchor Maintenance: Ensure brass anchors are clean and free of debris. If they become difficult to operate, a small amount of silicone lubricant can be applied.

7. Troubleshooting

This section addresses common issues you might encounter with your pool cover.

8. Specifications

9. Warranty and Support

For information regarding product warranty, returns, or technical support, please refer to the manufacturer's official website or contact GLI Pool Products customer service directly. Keep your purchase receipt and model number (201632RESAPGRN) readily available when contacting support.

Note: Warranty terms and conditions may vary and are subject to the manufacturer's policy at the time of purchase.
