TONE 3130MP 3/8-Inch Drive 18-Piece Socket Wrench Set Instruction Manual

1. Introduction

This manual provides instructions for the safe and effective use of your TONE 3130MP 3/8-inch drive 18-piece socket wrench set. This set is designed for tightening and loosening hex bolts and nuts. It features a durable, lightweight, and portable resin case for convenient storage and transport.

2. Product Components

The TONE 3130MP socket wrench set includes 18 pieces, comprising 13 sockets and 5 handles, housed in a plastic case.

Image 1: The TONE 3130MP socket wrench set displayed open in its red and black plastic case, revealing all 18 components neatly organized within the foam insert.

2.1. Included Items

• Sockets (13 pieces):
  • Hexagonal (6pt) Sockets: 7mm, 8mm
  • 12-point Sockets: 10mm, 12mm, 13mm, 14mm, 16mm, 17mm, 18mm, 19mm, 21mm, 22mm, 24mm
• Handles (5 pieces):
  • Ratchet Handle (RH3H)
  • Spinner Handle (NS3)
  • Extension Bar (305 - 75mm)
  • Extension Bar (306 - 150mm)
  • Ball Joint (BJ30)
• Plastic Case: For storage and transport.

Image 2: A detailed diagram outlining the specific models and specifications for each component included in the TONE 3130MP socket wrench set, along with case dimensions and weight.

3. Setup

The TONE 3130MP socket wrench set is ready for immediate use upon opening the case. No assembly is required for the individual components. Ensure all pieces are present and free from damage before beginning work.

3.1. Preparing for Use

1. Open the plastic case by unlatching the two front clips.
2. Select the appropriate socket size for the fastener you intend to work with.
3. Attach the chosen socket to the square drive of the ratchet handle, spinner handle, or extension bar. Ensure it clicks securely into place.
4. If additional reach or angle is needed, attach an extension bar or the ball joint between the handle and the socket.

Image 3: An angled view of the TONE 3130MP socket wrench set, open and ready for component selection, highlighting the organized layout within the case.

4. Operating Instructions

Proper operation of the socket wrench set ensures efficiency and prevents damage to fasteners or tools.

4.1. Tightening Fasteners

1. Select the correct socket size that fits snugly over the fastener.
2. Attach the socket to the ratchet handle. Ensure the ratchet direction switch is set to the tightening position (typically clockwise rotation).
3. Place the socket onto the fastener.
4. Apply steady, firm pressure to the handle to turn the fastener. The ratchet mechanism allows for continuous turning without repositioning the wrench.
5. Tighten the fastener to the required torque specification, if applicable. Avoid over-tightening.

4.2. Loosening Fasteners

1. Select the correct socket size.
2. Attach the socket to the ratchet handle. Set the ratchet direction switch to the loosening position (typically counter-clockwise rotation).
3. Place the socket onto the fastener.
4. Apply steady, firm pressure to the handle to break the fastener loose. Once loose, you can often switch to the spinner handle for faster removal.

4.3. Using Extension Bars and Ball Joint

• Extension Bars: Use extension bars to reach fasteners in recessed or obstructed areas. Attach the extension bar between the handle and the socket.
• Ball Joint: The ball joint (universal joint) allows the socket to pivot, providing access to fasteners at an angle. Use it when a straight approach is not possible.

5. Care and Maintenance

Proper care and maintenance will extend the life of your TONE socket wrench set.

• Cleaning: After each use, wipe down all components with a clean, dry cloth to remove dirt, grease, and debris. For stubborn grime, use a mild degreaser and then wipe dry.
• Lubrication: Periodically apply a small amount of light machine oil to the moving parts of the ratchet mechanism to ensure smooth operation. Avoid excessive lubrication.
• Storage: Always store the socket wrench set in its original plastic case. The case protects the tools from dust, moisture, and damage, and keeps them organized. Store in a dry environment.
• Inspection: Regularly inspect all components for signs of wear, cracks, or damage. Do not use damaged tools; replace them as necessary.

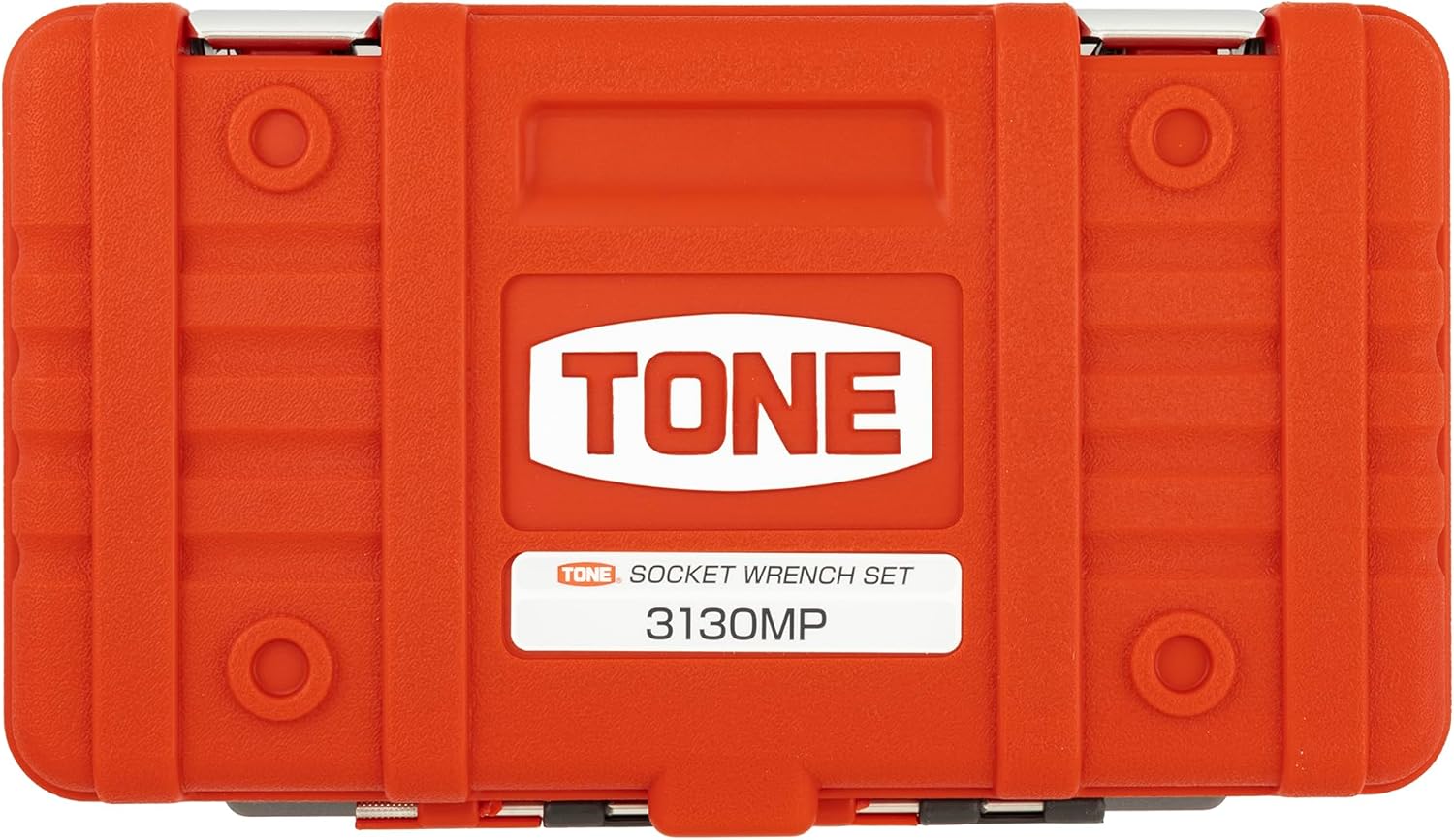

Image 4: The TONE 3130MP socket wrench set case, closed and ready for storage or transport, showcasing its compact and durable design.

6. Specifications

7. Safety Guidelines

Always follow these safety guidelines when using hand tools to prevent injury and damage.

• Wear Eye Protection: Always wear safety glasses or goggles to protect your eyes from flying debris.
• Use Correct Tool for the Job: Ensure the socket size matches the fastener exactly. Using an incorrect size can strip the fastener or damage the socket.
• Inspect Tools Before Use: Check all tools for cracks, chips, or other damage. Do not use damaged tools.
• Maintain a Firm Grip: Hold the wrench firmly to prevent slipping, which can cause injury or damage.
• Avoid Over-tightening: Over-tightening fasteners can cause them to break or strip, and can damage the tool.
• Keep Tools Clean and Dry: Oily or greasy tools can slip, leading to accidents. Rust can weaken tools.
• Do Not Use as a Pry Bar: Socket wrenches are not designed for prying. Using them for unintended purposes can cause breakage.
• Keep Children Away: Store tools out of reach of children.
