Introduction
The Xena XX6-SS is a high-grade mono-block stainless steel disc lock with an integrated alarm system, designed to secure motorcycles and scooters. It features a 6mm hardened steel locking pin and a 120dB alarm triggered by shock and motion sensors. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your Xena XX6-SS disc lock alarm.
Package Contents
- 1 XENA Disc-Lock (XX6-SS)
- 1 CR2 Battery
- 3 Keys
- 1 XENA lock tool etched with unique key code
Setup
Battery Installation
The alarm module is designed for easy replacement. To install or replace the CR2 battery, access the alarm module. Ensure correct polarity when inserting the battery. After battery installation, the unit will self-arm within 15 seconds, indicated by a short beep.
Initial Test
To test the alarm function, gently move the locked unit. The shock and motion sensors should trigger the 120dB alarm. This confirms the alarm system is operational.
Operating Instructions
Locking the Device
To lock the Xena XX6-SS, position it on your motorcycle or scooter's brake disc. Ensure the 6mm hardened steel pushdown locking pin aligns with a ventilation hole in the disc. Press the locking pin down firmly until it clicks into place. The unit will automatically arm itself within 15 seconds, indicated by a short beep.
Image: Xena XX6-SS Disc Lock Alarm. This image shows the Xena XX6-SS disc lock in its closed, locked position, ready for deployment on a motorcycle brake disc.

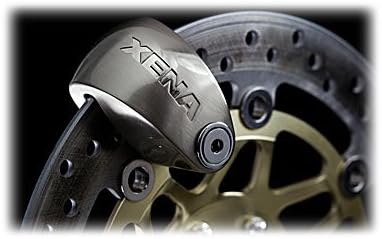

Image: Xena XX6-SS Disc Lock Alarm installed on a motorcycle brake disc. This image illustrates the disc lock securely attached to a motorcycle's brake disc, demonstrating its intended use.
Unlocking the Device
Insert the key into the lock cylinder and turn it to release the locking pin. The alarm will disarm automatically upon unlocking.
Alarm Functionality
The integrated alarm system features shock and motion sensors. If the locked device detects movement or tampering, it will trigger a loud 120dB alarm. The alarm will sound for a period and then automatically reset to armed mode if no further movement is detected.
Maintenance
Battery Replacement
The Xena XX6-SS uses one CR2 Lithium battery. Replace the battery when the alarm sounds weak or false alarms occur, as low current can cause malfunctions. Typical battery life is approximately 6 months. To replace, access the alarm module and insert a new CR2 battery, observing correct polarity.
Cleaning
Keep the unit clean, especially the reflector plate, as dirt can cause the alarm to malfunction. Use a soft, dry cloth for cleaning. Avoid exposing the unit to excessive moisture. Rain can cause false alarms; if wet, remove and dry the unit thoroughly before re-arming.
Lubrication
Periodically lubricate the key insertion opening and internal moving parts with powdered graphite to ensure smooth operation and prevent seizing.
Troubleshooting
False Alarms
- If the alarm triggers without apparent cause while locked on the disc, the battery may be low. Replace the CR2 battery.
- If the alarm triggers when off the disc, the internal reflector plate might be dirty. Clean the reflector plate inside the unit.
- Excessive moisture or rain can cause false alarms. Ensure the unit is dry.
Alarm Not Sounding
- Check battery level and replace if necessary.
- Ensure the locking pin is fully engaged and the unit has armed (indicated by a beep).
Difficulty Locking/Unlocking
- Lubricate the key mechanism and locking pin with powdered graphite.
- Ensure the key is fully inserted and turned correctly.
Specifications
- Model: XX6-SS
- Construction: High-grade mono-block stainless steel
- Locking Pin: 6mm hardened steel
- Alarm Volume: 120dB
- Sensors: Shock and motion
- Battery: 1 x CR2 Lithium (included)
- Dimensions: Approximately 3.3 x 2.3 x 1 inches (84 x 58 x 25 mm)
- Weight: Approximately 15.2 ounces (431 grams)
- Compatible Devices: Motorbikes, Scooters
- GTIN: 00876846003075
Image: Xena XX6-SS Disc Lock Alarm dimensions diagram. This diagram provides detailed measurements of the disc lock in millimeters and inches, including the 6mm locking pin and the 120dB alarm indicator.
Warranty and Support
For warranty information or technical support, please contact Xena Intelligent Security X directly through their official channels. Retain your proof of purchase for warranty claims.
