Introduction
The Gardena 39107 Premium 4-Pattern Garden Spray Nozzle is designed to provide a versatile and convenient solution for various watering tasks in your garden. This manual provides essential information for the proper setup, operation, and maintenance of your spray nozzle to ensure optimal performance and longevity.
Product Overview
The Gardena 39107 features a robust design with soft plastic components for a comfortable grip. It includes a hose connector for easy attachment to your garden hose and offers four distinct spray patterns for different watering needs.
Image: The Gardena 39107 Premium 4-Pattern Garden Spray Nozzle, showing its ergonomic design and quick connect fitting.
Setup
- Prepare Your Hose: Ensure your garden hose is free from kinks and has a standard hose end connector.
- Attach the Nozzle: Connect the Gardena 39107 spray nozzle to your garden hose. The integrated quick connector allows for a simple and secure attachment. Push the nozzle's connector firmly onto the hose end connector until it clicks into place.
- Check for Leaks: Turn on the water supply slowly and check for any leaks at the connection point. If leaks occur, ensure the connection is secure and that any rubber washers are properly seated.
Image: A person connecting a Gardena nozzle to a hose using the quick connect system.
Operating Instructions
Selecting Spray Patterns
The Gardena 39107 offers four distinct spray patterns. To change the pattern, rotate the nozzle head to align with your desired setting.
- Hard Jet: A powerful, concentrated stream for cleaning tasks.
- Flat Jet: A wide, flat spray suitable for rinsing surfaces.
- Soft Spray: A gentle, wide spray ideal for watering delicate plants.
- Full Spray: A broad, conical spray for general watering of larger areas.

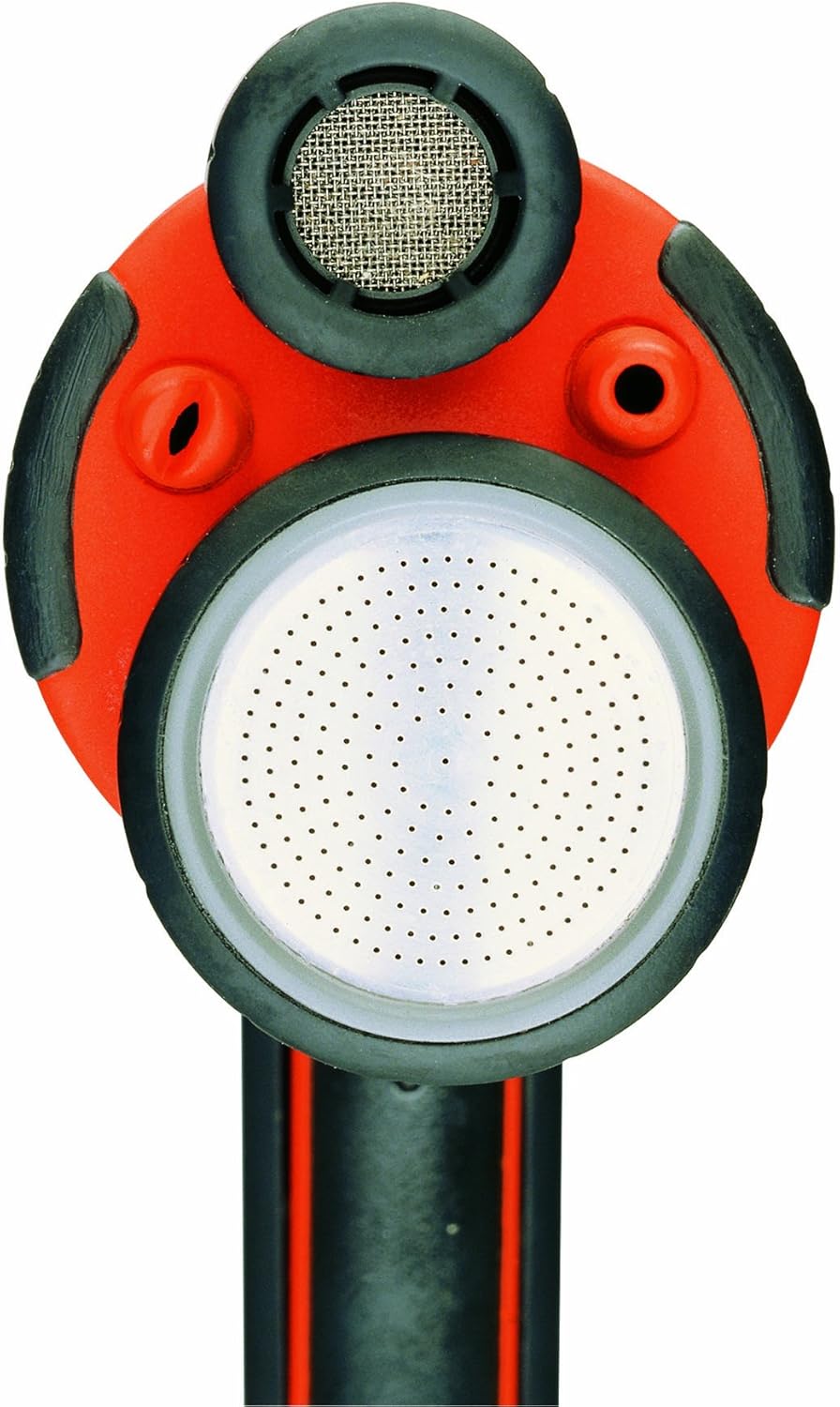

Image: Close-up of the nozzle head, illustrating the different spray pattern options.
Image: The nozzle emitting a soft spray, suitable for delicate plants.
Image: The nozzle emitting a full spray, covering a wider area.
Image: The nozzle emitting a hard jet, useful for targeted cleaning.
Water Flow Control
The nozzle features a trigger for immediate water flow control. Squeeze the trigger to start the flow and release it to stop. For continuous watering, engage the trigger lock mechanism, typically located near the trigger.
Maintenance
- Cleaning: Periodically clean the nozzle head to remove any mineral deposits or debris that may affect spray patterns. Use a soft brush and warm, soapy water.
- Storage: During colder months or when not in use for extended periods, drain all water from the nozzle and hose to prevent freezing and damage. Store the nozzle in a dry, protected area.
- Gasket Inspection: Regularly inspect the rubber gaskets and O-rings for wear or damage. Replace them if necessary to prevent leaks.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leaks from connection. | Loose connection, worn gasket. | Ensure nozzle is securely attached. Check and replace gasket if damaged. |
| Uneven or weak spray pattern. | Clogged nozzle holes, low water pressure. | Clean nozzle head to remove debris. Check water supply pressure. |
| Trigger is stiff or stuck. | Mineral buildup, lack of lubrication. | Clean trigger mechanism. Apply a silicone-based lubricant if necessary. |
Specifications
- Model Number: 39107
- Spray Patterns: Hard Jet, Flat Jet, Soft Spray, Full Spray
- Weight: 1.05 pounds
- Package Dimensions: 9.1 x 8 x 3 inches
- Manufacturer: Gardena
Warranty and Support
Gardena products come with a minimum 12-month parts and labor warranty. In the unlikely event that your Gardena product develops a fault within this period, it will be repaired or replaced free of charge. For products older than 12 months, a national repair service is available to provide a free estimate for parts and labor.
For further assistance or to inquire about repairs, please visit the official Gardena website or contact their customer support.
