Channellock VHBL.CL 12-16 Gallon High Efficiency Filter Bags Instruction Manual

Introduction

Thank you for choosing Channellock High Efficiency Filter Bags. These bags are designed to provide superior filtration for fine dust and debris in compatible 12 to 16 gallon wet/dry vacuums. Please read this manual carefully before installation and use to ensure optimal performance and safety.

Product Overview

The Channellock VHBL.CL filter bags are high-efficiency disposable bags, specifically engineered for dry pick-up applications. They are ideal for capturing fine particles such as drywall dust, sawdust, cold ashes, cement dust, and general household dirt.

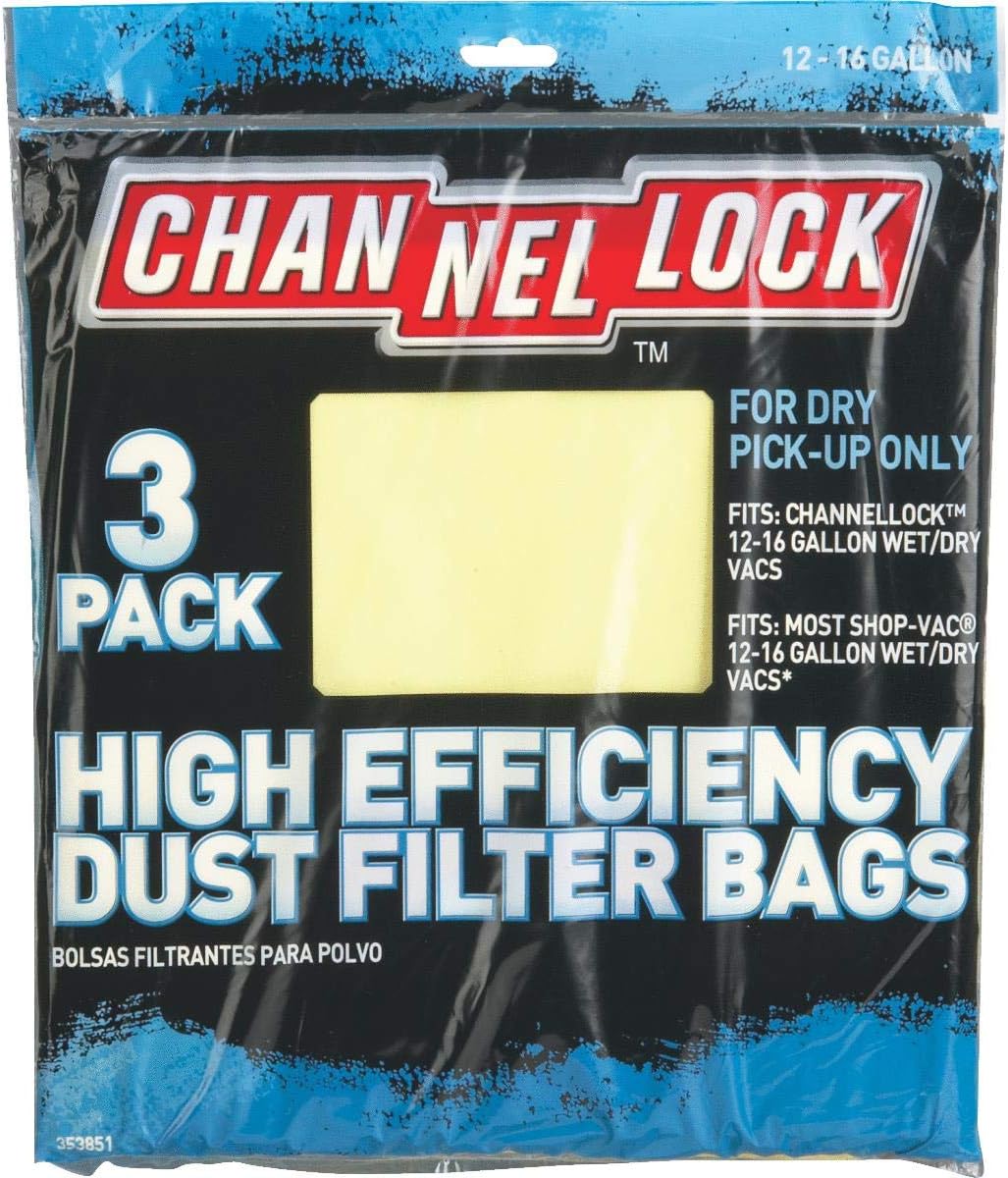

Figure 1: Packaging for Channellock 12-16 Gallon High Efficiency Dust Filter Bags (3-pack).

Figure 2: A single Channellock 12-16 Gallon High Efficiency Dust Filter Bag, showing the inlet port.

Setup

1. Prepare the Vacuum: Ensure your wet/dry vacuum cleaner is unplugged from the power source. Remove the vacuum's lid and any existing filter or debris from the tank.
2. Install the Filter Bag: Locate the inlet port inside the vacuum tank. Take one Channellock filter bag and carefully slide the bag's cardboard collar over the vacuum's inlet port. Ensure the collar fits snugly and securely around the port to prevent dust leakage.
3. Position the Bag: Gently unfold the filter bag and distribute it evenly inside the vacuum tank. Ensure the bag does not obstruct the vacuum's internal components or the lid's sealing mechanism.
4. Secure the Lid: Replace the vacuum lid, ensuring it is properly aligned and securely latched. A tight seal is crucial for effective filtration and suction.

Operating Instructions

• Dry Pick-Up Only: These filter bags are designed exclusively for dry pick-up applications. Do not use them for vacuuming liquids or wet debris, as this can damage the bag and the vacuum.
• Optimal Performance: The high-efficiency material of these bags is effective for capturing fine dust particles. For best results, ensure the bag is correctly installed and not overfilled.
• Monitor Bag Fullness: Regularly check the filter bag for fullness. An overfilled bag can reduce suction power and filtration efficiency.

Maintenance

• Bag Replacement: These are disposable filter bags. When the bag is full or when you notice a decrease in suction, it is time for replacement.
• Removal: Unplug the vacuum. Carefully remove the vacuum lid. Gently pull the filter bag's collar off the inlet port. It is recommended to seal the bag's opening (if applicable) before removal to contain dust.
• Disposal: Dispose of the used filter bag according to your local waste disposal regulations.
• Cleaning: These filter bags are not designed to be washed or reused. Attempting to clean and reuse them may compromise their filtration efficiency and structural integrity.

Troubleshooting

If you experience issues with your Channellock filter bags, consider the following:

• Reduced Suction: Check if the bag is full and needs replacement. Ensure the bag is properly installed and the vacuum lid is sealed. Also, check for any blockages in the hose or attachments.
• Dust Escaping: Verify that the filter bag's collar is securely attached to the vacuum's inlet port and that the vacuum lid is tightly sealed. A damaged bag may also cause dust to escape, requiring replacement.

Specifications

Warranty and Support

Specific warranty information for Channellock VHBL.CL filter bags is not provided in the product details. For any product-related inquiries, support, or warranty claims, please refer to the manufacturer's official website or contact their customer service directly.
