1. Product Overview
The Seca 217 Stadiometer is a high-quality, mobile device designed for accurate height measurement. Its robust construction and intelligent assembly system make it suitable for various professional environments, including medical practices, hospitals, and mobile health examinations in schools or homes. The stadiometer is designed for easy disassembly and transport.

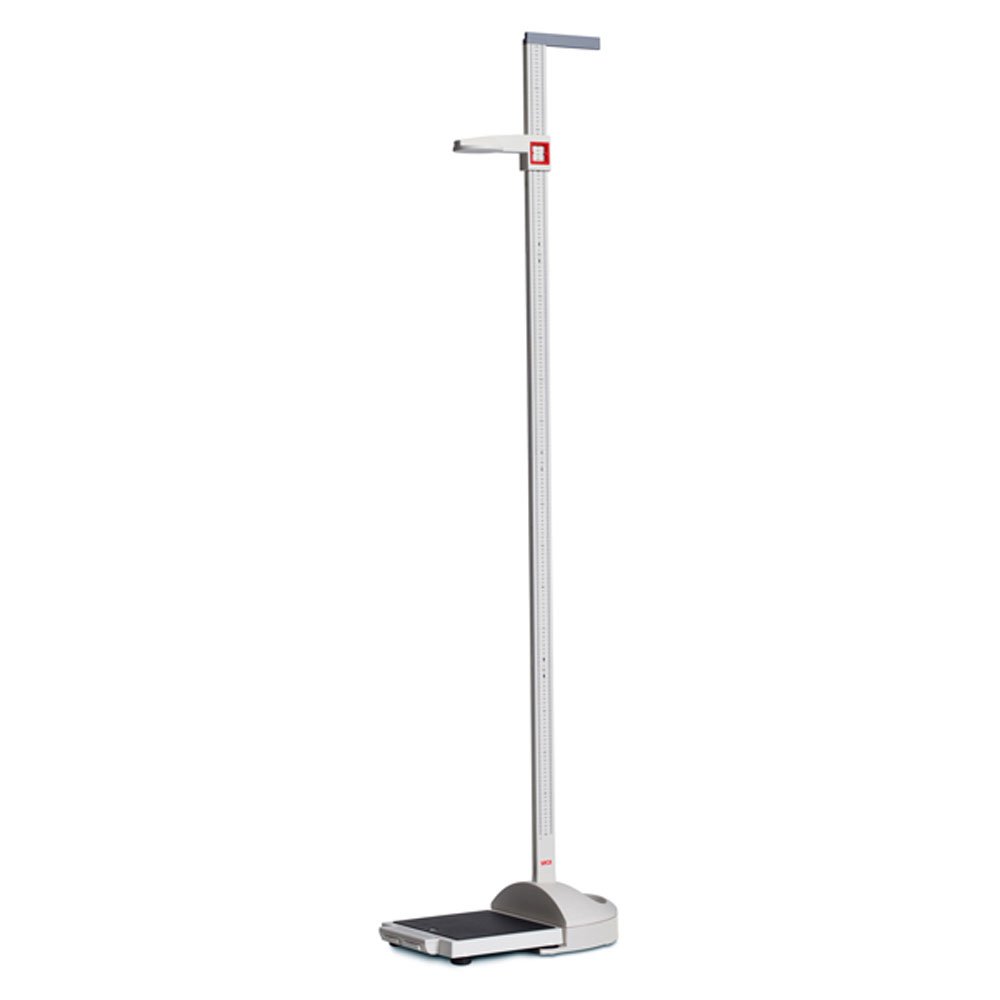

Image 1.1: The Seca 217 Stadiometer, fully assembled and ready for height measurement. This image shows the base, measuring rod, and headpiece.
Key Features:
- Measuring range: 20 - 205 cm / 8-81"
- Graduation: 1 mm / 1/8"
- Dimensions (WxHxD): 328 x 2,145 x 574 mm (assembled)
- High-quality materials for durability
- Cleverly designed assembly system for stability and ease of transport
- Optional adapter element (Seca 437) for connection to a flat scale (sold separately)
2. Setup Instructions
Follow these steps to correctly assemble your Seca 217 Stadiometer. Ensure all components are present before beginning assembly.
- Unpack Components: Carefully remove all parts from the packaging. Verify that you have the base plate, multiple rod segments, and the headpiece.
- Attach Base Plate: Place the base plate on a flat, stable surface.
- Assemble Rod Segments: Connect the rod segments one by one, ensuring they click securely into place. Start with the lowest segment that attaches to the base. The segments are designed for a precise fit.
- Install Headpiece: Once all rod segments are assembled, attach the headpiece to the top of the rod. Ensure it slides smoothly and locks into position for accurate measurement.
- Verify Stability: Gently shake the assembled stadiometer to ensure all connections are secure and the unit is stable.
Note: An image showing the step-by-step assembly process would be placed here if available.
3. Operating Instructions
To obtain accurate height measurements, follow these guidelines:
- Position the Stadiometer: Place the stadiometer on a firm, level surface, preferably against a wall for added stability if not connected to a scale.
- Prepare the Subject: Instruct the person to be measured to remove shoes, hats, and any bulky headwear.
- Position the Subject: Have the person stand with their back against the measuring rod, heels together, and feet flat on the base plate. Ensure their head, shoulders, buttocks, and heels are in contact with the rod (or as close as possible).
- Head Alignment: Instruct the person to look straight ahead, with their head in the Frankfort plane (the line from the lower border of the eye socket to the upper margin of the external auditory meatus should be horizontal).
- Lower Headpiece: Gently lower the headpiece until it rests firmly on the crown of the person's head, compressing the hair.
- Read Measurement: Read the height measurement directly from the indicator on the measuring rod. The graduation is 1 mm or 1/8 inch.
- Record Measurement: Document the measurement accurately.
Note: An image demonstrating correct subject positioning and measurement reading would be placed here if available.
4. Maintenance and Care
Proper maintenance ensures the longevity and accuracy of your Seca 217 Stadiometer.
- Cleaning: Clean the stadiometer regularly with a soft cloth dampened with a mild disinfectant or soapy water. Avoid abrasive cleaners or solvents that could damage the surface.
- Storage: When not in use, store the stadiometer in a dry, clean environment. For mobile use, disassemble the unit and store it in its original packaging or a suitable carrying case to protect components.
- Inspection: Periodically inspect all connections and components for wear or damage. Ensure the measuring rod slides smoothly and the headpiece moves freely.
- Calibration: The Seca 217 is a mechanical device and does not require electronic calibration. However, ensure all segments are correctly assembled to maintain measurement accuracy.
5. Troubleshooting
This section addresses common issues you might encounter with your stadiometer.
| Problem | Possible Cause | Solution |
|---|---|---|
| Inaccurate measurements | Improper assembly; subject not positioned correctly; uneven surface. | Re-assemble the stadiometer ensuring all segments are securely connected. Review operating instructions for correct subject positioning. Ensure the stadiometer is on a flat, stable surface. |
| Headpiece does not slide smoothly | Dust or debris on the measuring rod; minor misalignment. | Clean the measuring rod with a soft, damp cloth. Check for any obstructions. Ensure the headpiece is correctly seated on the rod. |
| Stadiometer feels unstable | Segments not fully locked; base not on a level surface. | Verify all rod segments are firmly connected. Place the stadiometer on a completely flat and stable floor. |
6. Technical Specifications
- Model Number: 2171821009
- Measuring Range: 20 - 205 cm / 8 - 81 inches
- Graduation: 1 mm / 1/8 inch
- Stadiometer Dimensions (WxHxD): 328 x 2145 x 574 mm (12.9 x 84.4 x 22.6 inches)
- Product Dimensions (Packaged): 24 x 14 x 9 inches
- Item Weight (Packaged): 10 Pounds
- Manufacturer: Seca
- Part Number: 217182100
7. Warranty and Support
Seca products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your product or visit the official Seca website. Typically, Seca offers a limited warranty against manufacturing defects.
For technical support, spare parts, or service inquiries, please contact your local Seca distributor or the manufacturer directly. Contact information can usually be found on the Seca official website or in the product packaging.
Manufacturer: Seca
Website: www.seca.com (Note: This is a general placeholder URL, please refer to your product documentation for the exact support website.)
