STANLEY FATMAX 26 Inch Deep Toolbox Storage (Model 1-95-617) User Manual

Model: 1-95-617 | Brand: Stanley - FatMax

Introduction

This manual provides comprehensive instructions for the safe and effective use of your STANLEY FATMAX 26 Inch Deep Toolbox Storage, Model 1-95-617. Designed for durability and organization, this toolbox combines the benefits of plastic with the sturdiness of metal, featuring heavy-duty metal latches and a removable tray for versatile storage.

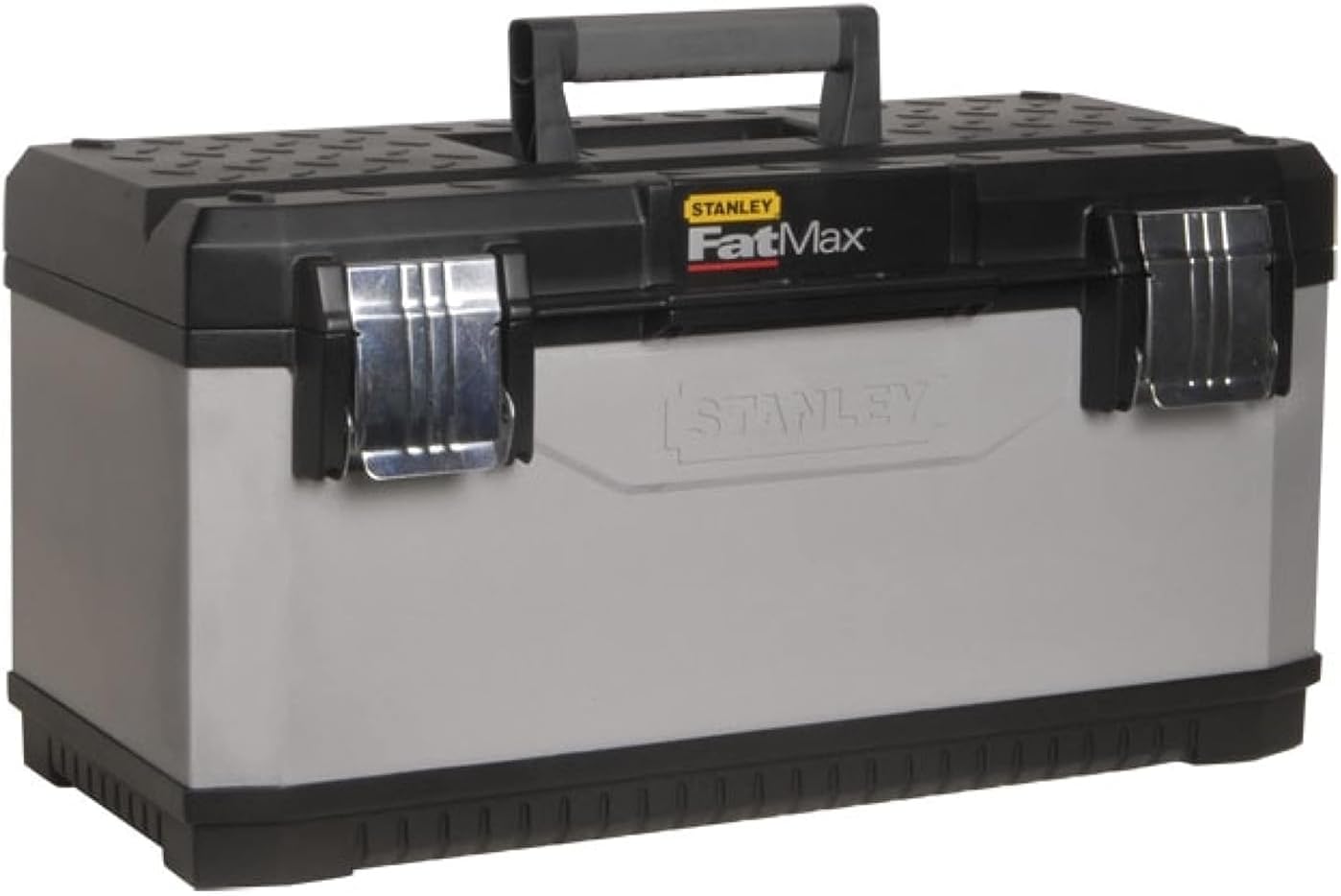

STANLEY FATMAX 26 Inch Deep Toolbox, front view

Image: Front view of the STANLEY FATMAX 26 Inch Deep Toolbox, showcasing its robust design and metal latches.

Key Features

  • Durable Construction: Combines plastic and metal for enhanced protection of stored equipment.
  • Heavy-Duty Metal Latches: Large, rust-proof metal latches with padlock eye for secure tool storage.
  • Ergonomic Bi-Material Handle: Designed for comfortable and easy carrying, even with heavy loads.
  • Removable Tray: A portable tray for organizing small parts and frequently used tools, allowing access to larger storage underneath.
  • Integrated V-Groove: Located on the top lid, suitable for working with pipes and lumber.
  • Tall Box Design: Provides extra height for storing larger items.
  • Embossed Branding: Durable and long-lasting STANLEY FATMAX logo branding.
STANLEY FATMAX 26 Inch Deep Toolbox with tools and removable tray

Image: The toolbox open, showing tools stored inside and the removable tray placed beside it, filled with smaller items.

Setup

The STANLEY FATMAX 26 Inch Deep Toolbox is designed for immediate use with minimal setup. Follow these steps to prepare your toolbox:

  1. Unpacking: Carefully remove the toolbox from its packaging. Inspect for any shipping damage.
  2. Initial Cleaning: Wipe down the exterior and interior surfaces with a clean, dry cloth to remove any dust or debris from manufacturing or transit.
  3. Tray Placement: The removable tray is typically placed inside the main compartment. Ensure it is seated correctly if you intend to use it for smaller items.
Close-up of the removable tray inside the STANLEY FATMAX toolbox

Image: A detailed view of the removable tray, showing its design for organizing small tools and parts.

Operation

Using your STANLEY FATMAX toolbox is straightforward. Here are instructions for its primary functions:

Opening and Closing the Toolbox

  • To Open: Lift the metal latches located on the front of the toolbox upwards until they disengage from the main body. Then, lift the lid by the handle.
  • To Close: Lower the lid until it aligns with the main body. Push the metal latches downwards until they securely snap into place. Ensure both latches are fully engaged to prevent accidental opening.

Using the Removable Tray

  • The removable tray sits inside the top portion of the toolbox. It can be lifted out to access the larger storage area beneath.
  • Use the compartments within the tray to organize smaller tools, fasteners, or accessories.
  • When placing the tray back, ensure it is properly seated to allow the lid to close securely.

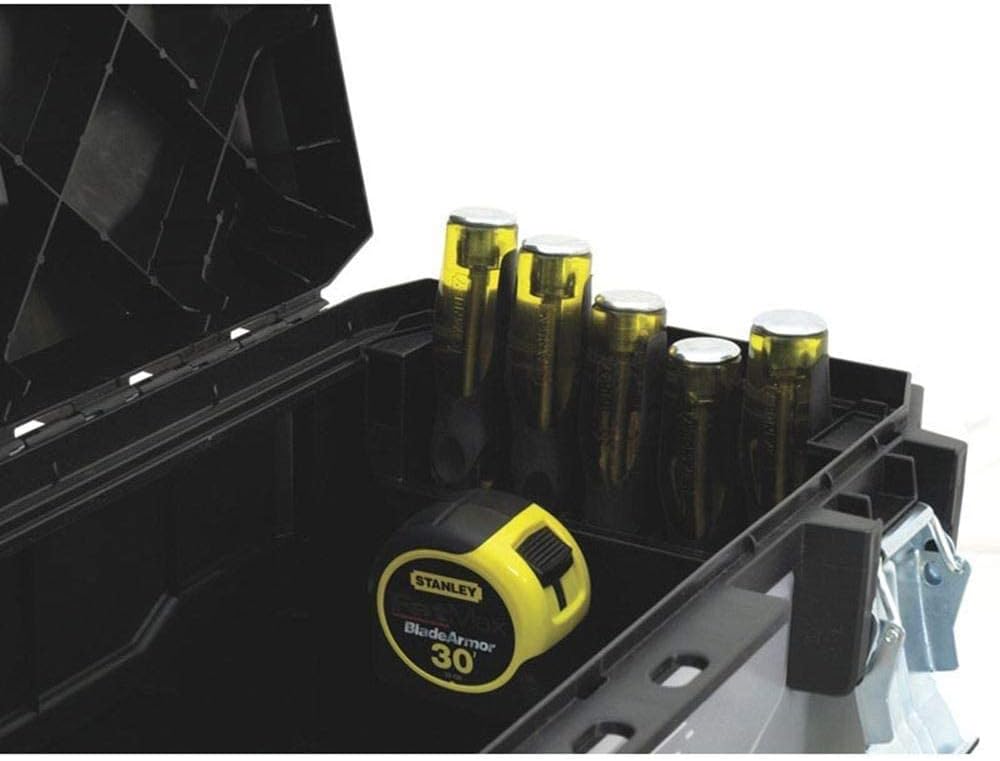

Tools organized within the removable tray of the STANLEY FATMAX toolbox

Image: A close-up of the removable tray with various small tools, such as a tape measure and screwdrivers, neatly arranged.

Maintenance and Care

Proper maintenance ensures the longevity and functionality of your toolbox.

  • Cleaning: Wipe the toolbox exterior and interior with a damp cloth and mild soap as needed. Avoid abrasive cleaners or solvents that could damage the material.
  • Drying: Ensure the toolbox is completely dry before closing or storing to prevent moisture buildup, which can lead to rust on metal tools.
  • Latch Care: Periodically check the metal latches for smooth operation. If they become stiff, a small amount of silicone spray lubricant can be applied to the pivot points.
  • Storage: Store the toolbox in a dry environment to protect its contents and materials.

Troubleshooting

Here are solutions to common issues you might encounter:

  • Latches not closing securely:
    • Check if the toolbox is overloaded or if items are obstructing the lid from closing fully.
    • Ensure the removable tray is correctly seated and not preventing the lid from aligning.
    • Inspect latches for any damage or debris. Clean if necessary.
  • Lid feels stiff to open/close:
    • Check the hinges for dirt or rust. Clean and apply a small amount of lubricant if needed.
  • Tools rattling inside:
    • Utilize the removable tray for smaller items to prevent them from moving freely in the main compartment.
    • Consider using tool wraps or foam inserts for delicate or oddly shaped tools.

Specifications

AttributeDetail
BrandStanley - FatMax
Model Number1-95-617
Size26 Inch Toolbox (66cm)
MaterialMetal Plastic
Product Dimensions (L x W x H)25.98" x 11.42" x 11.81" (66cm x 29cm x 30cm)
Item Weight8.29 pounds
Capacity30 Kilograms
Number of Compartments1 (plus removable tray)
Water Resistance LevelNot Water Resistant
UPC798256198175
STANLEY FATMAX 26 Inch Deep Toolbox with dimensions labeled

Image: The STANLEY FATMAX toolbox with its length (66cm), width (29cm), and height (30cm) clearly indicated.

Warranty and Customer Support

STANLEY - FatMax is committed to providing quality products and support. For any inquiries, service, or warranty claims, please refer to the contact information below.

STANLEY TOTAL CARE customer support information including phone, email, and WhatsApp

Image: STANLEY TOTAL CARE information, detailing sales and after-sales support, service network, warranty, original parts, information, and omnichannel support.

Contact Information:

© 2024 Stanley - FatMax. All rights reserved. This manual is for informational purposes only.
