Model: BD-V3200L-N | Brand: Hitachi
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Hitachi 10.0kg Drum-Type Washer Dryer, model BD-V3200L-N. Please read this manual thoroughly before using the appliance and keep it for future reference.
Experience reduced wrinkles with the innovative Wind Iron technology. High-speed airflow, reaching approximately 300 km/h, smooths out creases, minimizing the need for ironing. This low-temperature drying process is gentle on heat-sensitive garments, preventing shrinkage.
Note: The effectiveness of wrinkle reduction may vary depending on the load size, fabric type, and other items dried together. It does not completely eliminate all wrinkles.
The large 61cm diameter Big Drum lifts clothes high and drops them, creating a powerful beating wash action that effectively removes dirt. A jet fan motor generates high-speed airflow to smooth out wrinkles during drying.
Image: Close-up view of the spacious drum interior, highlighting its large diameter designed for effective washing and drying.
The Sensor Big Drum Washing system utilizes three sensors (3D acceleration, fabric load, and rotation speed) to optimize drum rotation for maximum washing effectiveness. The fabric load sensor also controls water volume. The Circulation Double Shower sprays detergent solution from both sides at 26L/min (13L/min per side) to thoroughly penetrate clothes. The Hot High Washing feature warms clothes with warm air to activate detergent enzymes, enhancing cleaning power (adds approx. 13 minutes to cycle).
Equipped with Hitachi's energy-saving technologies, including Heat Recycle Drying, which reuses heat generated by the main motor and jet fan. The new high-performance motor enables high-speed spin-drying to remove more water, reducing drying time and energy consumption. Drum Posture Control minimizes wrinkles and uneven drying by gently shifting clothes back and forth. Water-saving features include the Circulation Double Shower and Spin Spray Rinse, which use less water for effective rinsing. The 2-way Dehumidification method optimizes heat efficiency for drying, using air-cooling dehumidification for water saving and water-cooling dehumidification for specific courses like deodorization/sterilization.
The Steam Iron function quickly removes wrinkles and odors from dry clothes (up to 1kg), such as two shirts in about 15 minutes. It's ideal for busy mornings, saving time on ironing before going out. It can also fluff up towels that have been line-dried.
Note: This function is for dry clothes up to 1kg. It does not provide the same pressed finish as an iron. Wrinkle removal effectiveness varies by fabric. Not all odors can be removed. Not suitable for items that cannot be tumble dried.
The appliance offers waterless deodorization and sterilization courses for items up to 1kg that are sensitive to shape distortion. The Nano Titanium Powerful Deodorizing Drying Filter and warm air sterilization provide a clean finish without chemicals. It also addresses pollen and mold concerns. The Aller-Off function removes pollen from clothes (up to 2kg) in about 10 minutes after outdoor drying. The Tub Drying Course helps prevent mold growth inside the drum, and the Tub Washing course cleans the drum interior.
Proper installation is crucial for the performance and longevity of your washer dryer. Please ensure the following:
Image: The Hitachi BD-V3200L-N washer dryer, showcasing its design and front-loading drum.
Your washer dryer is designed for ease of use with a large, clear operation panel and helpful voice guidance.
The appliance features a voice guidance system activated by the "Tell Me" button, providing helpful information:
Regular maintenance ensures optimal performance and extends the lifespan of your washer dryer.
If you encounter any issues with your washer dryer, please refer to the "Alert Guide" voice prompts for immediate assistance. Below are some common issues and general advice:
If the problem persists after attempting these solutions, please contact customer support.
| Feature | Specification |
|---|---|
| Brand | Hitachi |
| Model Number | BD-V3200L-N |
| Capacity (Washing) | 10.0 kg |
| Capacity (Drying) | 6.0 kg |
| Product Dimensions (W x D x H) | 73.5 x 62 x 105 cm |
| Product Weight | Approx. 111 kg |
| Rated Voltage | 100 V |
| Rated Frequency | 50/60 Hz |
| Rated Power Consumption (Motor) | 170 W |
| Rated Power Consumption (Heater) | 890 W |
| Standard Water Usage (Wash) | 72 L (Standard Course) |
| Standard Water Usage (Wash-Dry) | 55 L (Standard Course) |
| Control Type | Push Button |
| Access Location | Front |
| Compliance Standards | JIS, PSE, S-JET, Fire Service Act Compliant |
| Special Features | Inverter |
| Color | Champagne, White |
| Cycle Options | Steam, Normal, Tub Wash |

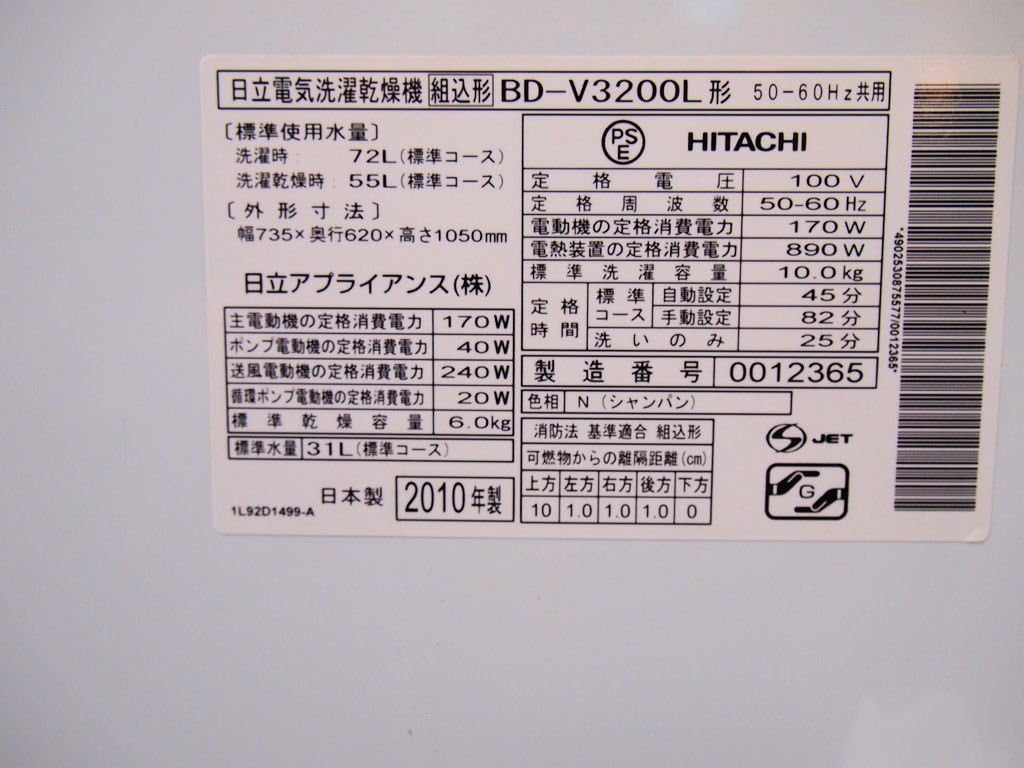

Image: Product specification label, detailing electrical requirements, capacities, and dimensions.
For warranty information, please refer to the warranty card included with your product or visit the official Hitachi website. For technical support, service requests, or inquiries, please contact Hitachi customer service through the contact details provided in your product documentation or on the official website.
This product also comes with an easy-to-understand DVD that provides visual guidance on product usage and features.
