Introduction
Thank you for purchasing the Discovery Kids Handheld Metal Detector. This device is designed for recreational use, allowing users to explore and discover metallic objects. It features a built-in magnifying lens, compass, and flashlight to enhance the exploration experience. Please read this manual thoroughly before operating the device to ensure proper use and maintenance.
Safety Information
- Battery Safety: Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable batteries. Remove batteries if the device will not be used for an extended period. Dispose of used batteries properly. Never dispose of batteries in fire, as they may explode or leak.
- Supervision: Adult supervision is recommended for young users.
- Environmental Use: Avoid using the metal detector in extreme weather conditions or near sensitive electronic equipment.
- Water Exposure: The device has an International Protection Rating of IP54, meaning it is protected from limited dust ingress and water spray from any direction. Do not submerge the device in water.
Package Contents
Ensure all items are present before use:
- Discovery Kids Handheld Metal Detector
- Instruction Manual
Note: 2 x "AA" size batteries are not included and must be purchased separately.
Parts Identification

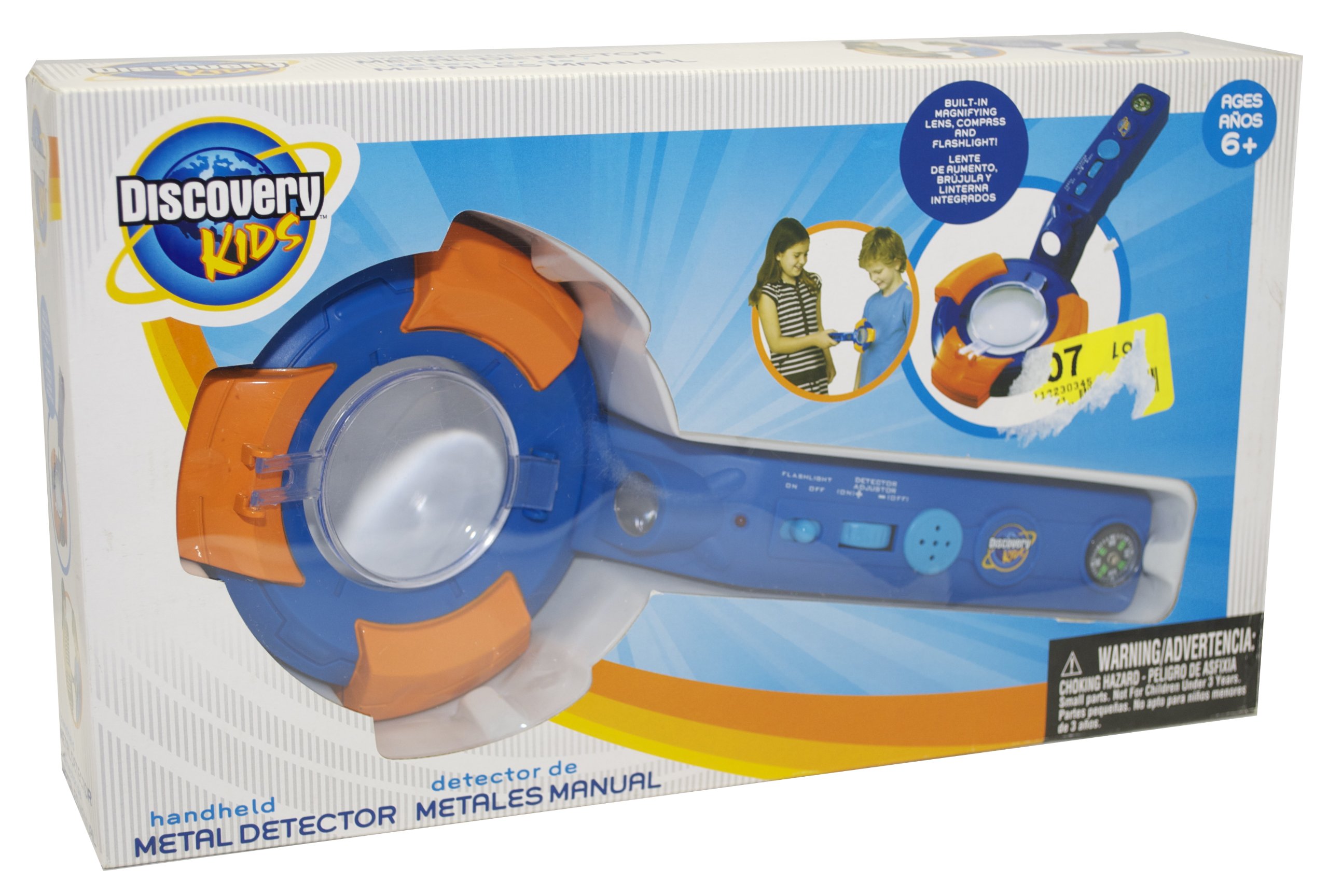

Figure 1: Packaging of the Discovery Kids Handheld Metal Detector, highlighting its features such as the metal detection indicator light, buzzer alarm, compass, flashlight, and magnifying lens.
Figure 2: A detailed view of the Discovery Kids Handheld Metal Detector, showing the main body, search coil, handle, and integrated features.
- Search Coil: The circular part at the bottom used to detect metal.
- Handle: For gripping the device.
- Control Panel/Buttons: For operating flashlight and other functions.
- Metal Detection Indicator Light: Illuminates when metal is detected.
- Metal Detection Buzzer Alarm: Sounds when metal is detected.
- Compass: Integrated for direction finding.
- Flashlight: Built-in for illumination.
- Magnifying Lens: Built-in for examining discoveries.
- Battery Compartment: Located on the device, typically in the handle or main body.
Setup
Battery Installation
- Locate the battery compartment on the device. This is typically secured with a small screw or latch.
- Using a small screwdriver (if necessary), open the battery compartment cover.
- Insert 2 x "AA" size batteries, ensuring the correct polarity (+ and -) as indicated inside the compartment.
- Replace the battery compartment cover and secure it.
Important: Always use fresh batteries and ensure they are inserted correctly. Refer to the Safety Information section for battery handling guidelines.
Operating Instructions
Turning On/Off
Locate the power switch or button on the device. Press or slide it to the "ON" position to power on the metal detector. To turn off, press or slide it to the "OFF" position.
Metal Detection
- Once powered on, hold the metal detector by its handle.
- Sweep the search coil slowly and steadily over the area you wish to scan, keeping it parallel to the ground.
- When a metallic object is detected, the device will emit a Metal Detection Buzzer Alarm and the Metal Detection Indicator Light will illuminate.
- Move the coil back and forth over the detected area to pinpoint the exact location of the object.
Using the Integrated Features
- Flashlight: Activate the built-in flashlight by pressing its dedicated button (if available) or by a specific switch. Use it to illuminate dark areas during your search.
- Compass: The integrated compass provides directional guidance. Hold the device steady and level to read the compass accurately.
- Magnifying Lens: Use the magnifying lens to closely examine small objects or details of your discoveries.
Maintenance
- Cleaning: Wipe the device with a soft, dry cloth after each use. Do not use abrasive cleaners or solvents.
- Storage: Store the metal detector in a cool, dry place away from direct sunlight and extreme temperatures.
- Battery Removal: Always remove batteries if the device will not be used for an extended period to prevent leakage and damage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on. | Batteries are dead or incorrectly inserted. | Replace with fresh "AA" batteries, ensuring correct polarity. |
| No metal detection or weak signal. | Low batteries; environmental interference. | Replace batteries. Move to a different location away from large metal structures or strong electromagnetic fields. |
| Buzzer alarm sounds continuously. | Device is too close to a large metal object or experiencing interference. | Move the device away from known metal objects. Check for environmental interference. |
Specifications
- Model Number: KSD5021
- Brand: Discovery Kids
- Power Source: 2 x "AA" Batteries (not included)
- Material: Metal (components)
- Item Weight: 8.8 ounces (0.55 Pounds)
- Product Dimensions: 14 x 8 x 3 inches
- International Protection Rating: IP54
- Features: Metal Detection Buzzer Alarm, Metal Detection Indicator Light, Compass, Flashlight, Magnifying Lens
Warranty and Support
This product is manufactured by Discovery Kids. For support or warranty inquiries, please contact the manufacturer directly. Information found on the product packaging indicates the manufacturer is Discovery Kids and the distributor is Kids Station Toys International Ltd.
Manufacturer: Discovery Kids
Distributed by: Kids Station Toys International Ltd.
Contact Number: 1-888-321-7191
Website: discoverykids.com
Product and colors may vary. Conforms to ASTM F-963.
