1. Introduction
This manual provides instructions for the proper setup, operation, and maintenance of your Cetis Scitec 2510D-e corded telephone. This single-line desk phone is designed for reliable communication and features a durable heavy metal base.

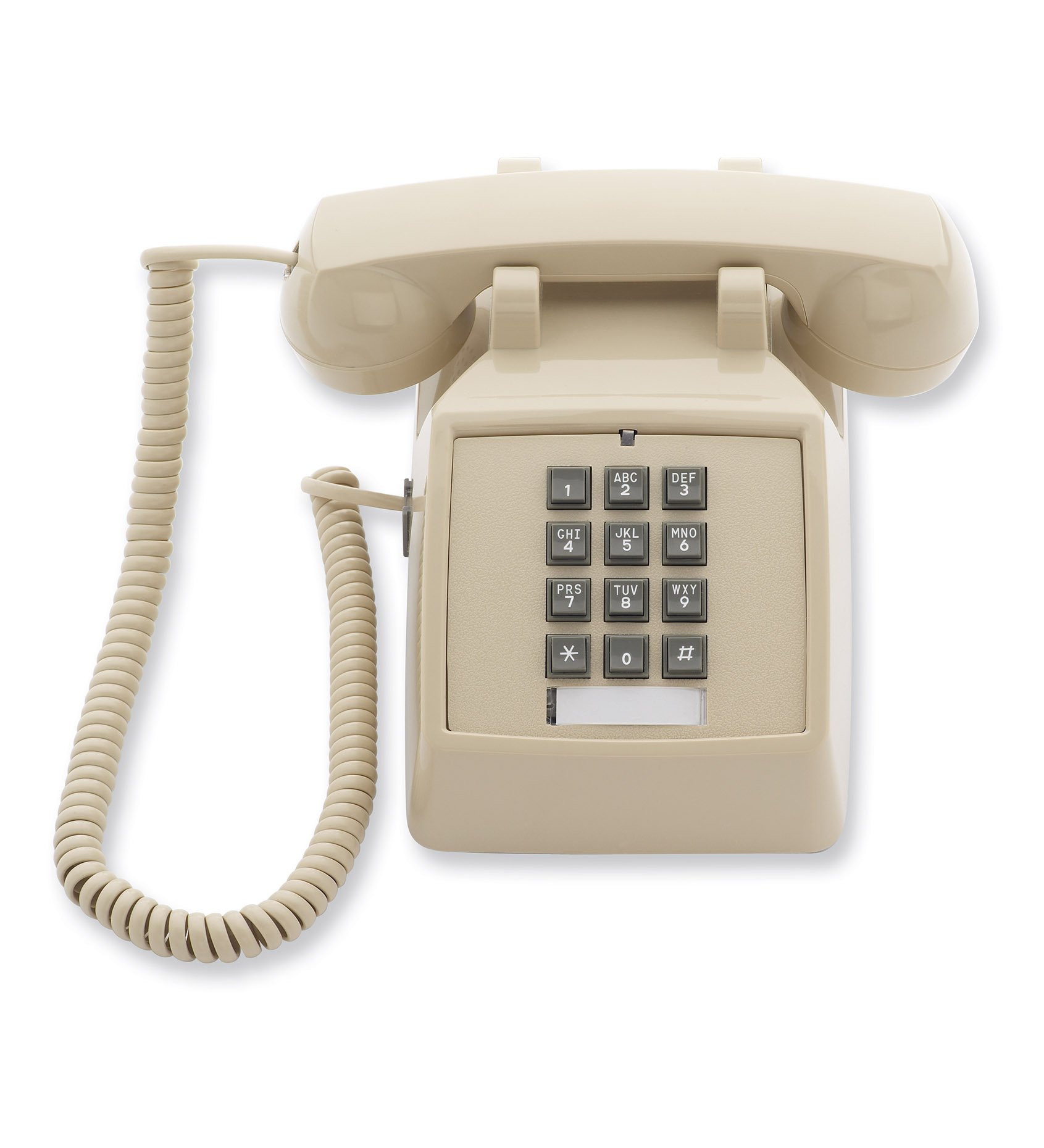

Figure 1: Cetis Scitec 2510D-E Corded Telephone. This image displays the complete Cetis Scitec 2510D-E corded telephone. It features a classic design with a beige/ash colored body, a coiled handset cord on the left, and a 12-button keypad on the front panel. The handset rests securely on the base.
2. Safety Information
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, please refer to California Proposition 65 warnings.
- Do not expose the telephone to excessive moisture or extreme temperatures.
- Avoid dropping the telephone or subjecting it to strong impacts.
- Use only the provided cords or approved replacements.
3. Package Contents
Verify that your package contains the following items:
- Cetis Scitec 2510D-e Telephone Unit
- Handset
- Coiled Handset Cord
- Telephone Line Cord
4. Setup
- Connect the Handset: Plug one end of the coiled handset cord into the handset and the other end into the jack on the side of the telephone base.
- Connect the Telephone Line: Plug one end of the telephone line cord into the LINE jack on the back or side of the telephone base. Plug the other end into a standard telephone wall jack.
- Placement: Place the telephone on a stable, flat surface. Ensure it is not near sources of heat or moisture.
5. Operating Instructions
5.1 Making a Call
- Lift the handset.
- Listen for a dial tone.
- Dial the desired telephone number using the keypad.
- Wait for the call to connect.
- To end the call, place the handset back on the cradle.
5.2 Receiving a Call
- When the telephone rings, lift the handset.
- Begin speaking.
- To end the call, place the handset back on the cradle.
5.3 Using the Data Port
The telephone is equipped with a data port, typically located on the side or back of the unit. This port allows for the connection of another device, such as a modem or fax machine, to the same telephone line. Consult the manual of the connected device for specific setup instructions.
6. Maintenance
- Cleaning: Wipe the telephone with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Cord Care: Avoid tangling or stretching the coiled handset cord and the telephone line cord excessively to prevent damage.
- Environmental Conditions: Keep the telephone away from direct sunlight, heat sources, and areas with high humidity.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No dial tone | Telephone line cord is disconnected or faulty. | Ensure the telephone line cord is securely plugged into both the phone and the wall jack. Test with another phone or cord if available. |
| Cannot hear caller / Caller cannot hear me | Handset cord connection issue or line interference. | Check that the coiled handset cord is firmly connected at both ends. Try adjusting the handset's position or gently wiggling the cord. If the issue persists, the telephone line itself may have interference. |
| Ringer sound is electronic, not a mechanical gong | Product specification variation. | The Cetis Scitec 2510D-e model features an electronic ringer. This is standard for the unit. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Cetis |
| Model Number | 2510D-e |
| Telephone Type | Corded |
| Multiline Operation | Single-Line Operation |
| Dialer Type | Single Keypad |
| Material | Metal (Enclosure Material) |
| Color | Ash |
| Dimensions (L x W x H) | 9" x 4.5" x 7" |
| Weight | 2.45 lbs |
| Power Source | Corded Electric |
| Data Port | Yes |
| Country of Origin | China |
| RoHS Compliant | No |
9. Warranty and Support
The Cetis Scitec 2510D-e telephone comes with a 1-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use.
For technical support or warranty claims, please contact Cetis customer service. Refer to the packaging or the official Cetis website for the most current contact information.
