Jiffy Steamer J-4000H Hat Steamer Instruction Manual

Introduction

The Jiffy Steamer J-4000H is a heavy-duty hat steamer designed for professional use in hat shops. It efficiently produces purified steam to shape, block, and remove imperfections such as packing marks, nesting rings, and wrinkles from hat bands. This manual provides essential information for the safe and effective operation, maintenance, and care of your J-4000H Hat Steamer.

Image: Jiffy J-4000H Hat Steamer, front-side view. This image displays the Jiffy J-4000H Hat Steamer from a front-side angle, showcasing its compact design and the steam nozzle.

Important Safety Information

Please read and understand all safety instructions before operating the J-4000H Hat Steamer. Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage.

• Electrical Safety: This unit operates on 120 Volts. Ensure the power outlet matches the steamer's voltage requirements. Always plug the unit into a grounded wall or base receptacle.
• Indoor Use Only: This appliance is designed for indoor use only. Do not use outdoors or in wet conditions.
• Water Safety: Use only distilled or clean tap water. Do not add any chemicals, perfumes, or other additives to the water reservoir.
• Filling: Always allow the unit to cool completely before adding water. Never overfill the water reservoir beyond the maximum fill line indicated on the sight gauge.
• Hot Steam: Steam is extremely hot and can cause severe burns. Keep hands, face, and body away from the steam nozzle during operation.
• Unplug When Not In Use: Always unplug the steamer from the power outlet when not in use, during filling, cleaning, or maintenance.
• Do Not Run Dry: Never operate the steamer without water in the reservoir. Running the unit dry can cause damage to the heating element.
• Children and Pets: Keep the steamer out of reach of children and pets.

Setup

Follow these steps for initial setup of your J-4000H Hat Steamer:

1. Unpacking: Carefully remove all components from the packaging. Inspect the unit for any signs of damage.
2. Placement: Place the steamer on a stable, level, heat-resistant surface. Ensure there is adequate space around the unit for ventilation and safe operation.
3. Filling the Water Reservoir:
   • Ensure the unit is unplugged and cool.
   • Unscrew the water fill cap located on the top of the unit.
   • Fill the reservoir with up to 4 quarts (approximately 1 gallon / 3.79 liters) of clean tap or distilled water. Do not exceed the 'MAXIMUM WATER' line visible on the sight gauge.
   • Securely replace the water fill cap.
4. Power Connection: Plug the steamer's power cord into a grounded 120 Volt electrical outlet.

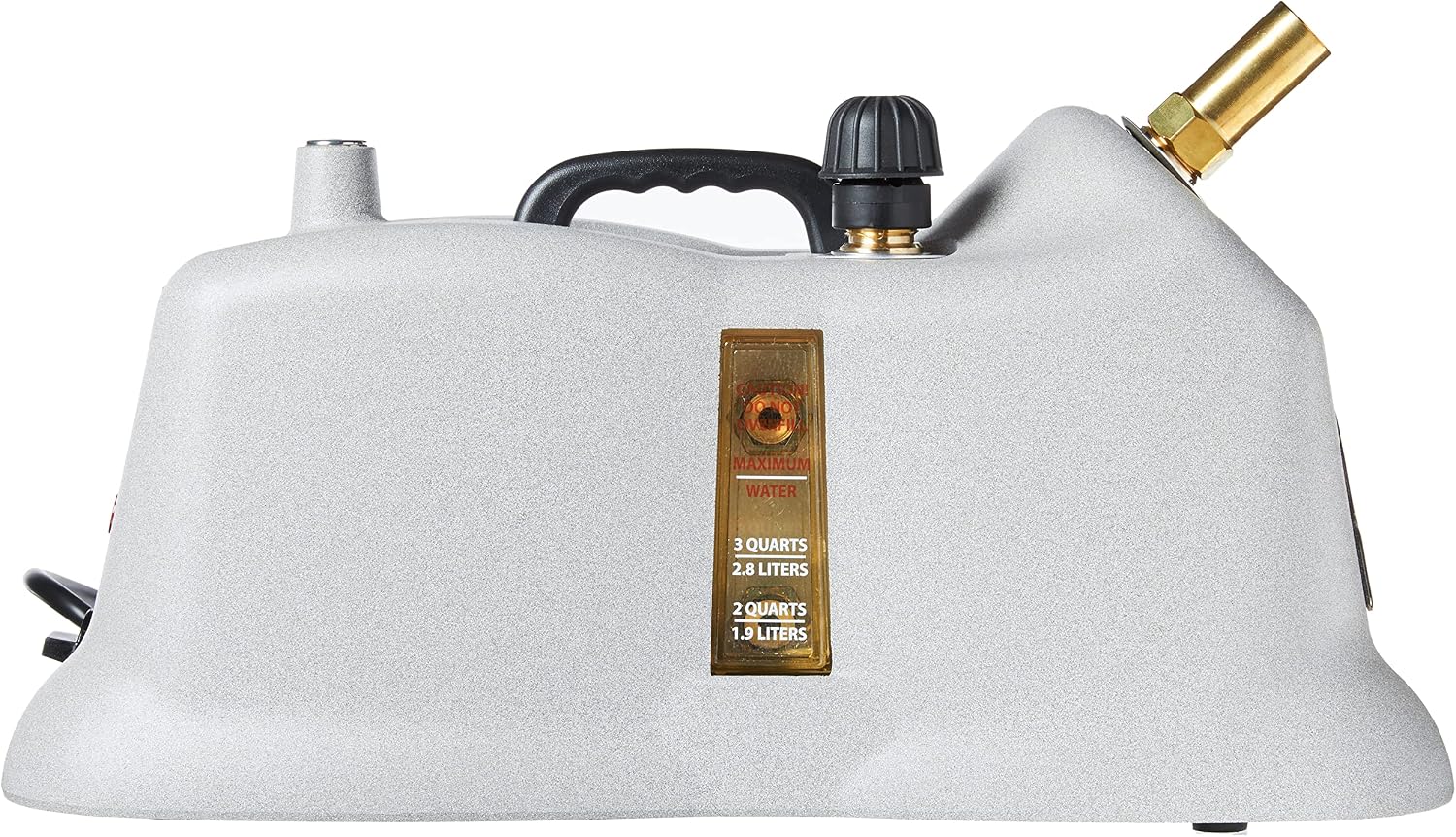

Image: Side view of Jiffy J-4000H Hat Steamer with water level sight gauge. A side view of the steamer, highlighting the transparent water level sight gauge on the unit's body, indicating water capacity markings in quarts and liters.

Operating Instructions

Operating your J-4000H Hat Steamer is straightforward:

1. Power On and Preheat:
   • With the reservoir filled and the unit plugged in, turn the control switch to the 'STANDBY' position.
   • The indicator light will illuminate, signifying that the unit is heating.
   • Allow the unit to heat to approximately 200°F (93°C). The 'STANDBY' thermostat will maintain this temperature. The indicator light will turn off once the unit reaches the ready temperature.
2. Steaming:
   • Once the unit is preheated, turn the control switch to the 'STEAM' position.
   • Direct the steam nozzle towards the hat or area requiring treatment. Maintain a safe distance to avoid direct contact with hot steam.
   • Move the nozzle smoothly and evenly over the surface to apply steam.
3. Finishing:
   • When you have finished steaming, turn the control switch back to 'STANDBY' or 'OFF' position.
   • Allow the unit to cool down completely before handling or storing.

Image: Top view of Jiffy J-4000H Hat Steamer with control dial and product label. This image shows the top of the steamer, featuring the main control dial for standby and steam settings, the water fill cap, and the product information label with directions and specifications.

Image: Close-up of the brass steam nozzle. A detailed close-up of the brass steam nozzle, showing the multiple steam outlets designed for precise application.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your J-4000H Hat Steamer.

• Cleaning Frequency: Clean your steamer approximately every two weeks, or more frequently if you notice residue accumulating in the bottom of the sight gauge.
• Descaling: The manufacturer recommends flushing the steamer regularly with Jiffy Steamer Liquid Cleaner to prevent mineral buildup, especially if using tap water. Follow the instructions provided with the cleaning solution.
• Storage: When not in use for extended periods, ensure the unit is unplugged, cooled, and drained of all water. Store in a dry, safe place.

Troubleshooting

If you encounter issues with your J-4000H Hat Steamer, refer to the following common troubleshooting tips:

• No Steam Production:
  • Check if the unit is plugged in and the power outlet is functional.
  • Ensure the water reservoir is filled to the appropriate level.
  • Verify the control switch is set to the 'STEAM' position after preheating.
  • Allow sufficient time for the unit to preheat (indicator light off).
• Weak Steam:
  • Mineral buildup can restrict steam flow. Perform a descaling procedure as outlined in the Maintenance section.
  • Ensure the water level is adequate.
• Water Leaking:
  • Ensure the water fill cap is securely tightened.
  • Avoid overfilling the reservoir.
  • Inspect hoses and connections for any visible damage or loose fittings.
• Unit Not Heating:
  • Check power connection and outlet.
  • Ensure the control switch is in the 'STANDBY' or 'STEAM' position.

For persistent issues or problems not listed here, please contact Jiffy Steamer Company customer support.

Specifications

Image: Jiffy J-4000H Hat Steamer with dimensions labeled. An overhead view of the steamer with its length (20 inches), width (13.5 inches), and height (12 inches) clearly indicated by measurement lines.

Warranty and Support

The Jiffy Steamer J-4000H Hat Steamer comes with a 3-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.

For warranty claims, technical assistance, or to purchase replacement parts or cleaning solutions, please contact Jiffy Steamer Company customer support directly. Refer to the product packaging or the official Jiffy Steamer website for current contact information.
