Important Safety Instructions
Please read all instructions carefully before operating this appliance to ensure safe and efficient use. Retain this manual for future reference.
- Electrical Safety: Ensure the griddle is connected to a properly grounded electrical supply matching the specifications (208V, 1-phase, 49 amps). Do not use extension cords.
- Hot Surfaces: The griddle surface and surrounding areas become extremely hot during operation. Use caution and wear appropriate protective gear.
- Cleaning: Disconnect power before cleaning. Allow the griddle to cool completely before attempting any cleaning or maintenance.
- Ventilation: Operate the griddle in a well-ventilated area.
- Supervision: Do not leave the griddle unattended while in operation.
- Damage: Do not operate the griddle if it has a damaged cord or plug, or if it has been dropped or damaged in any manner. Contact qualified service personnel.
Product Overview
The Garland ED-36G is a Designer Series electric countertop griddle designed for commercial use. It features a 35-5/8" W x 18" D smooth cooking surface, thermostatic controls for precise temperature management, and a convenient grease drawer for easy cleaning. The unit is constructed with a stainless steel front and sides for durability and hygiene.

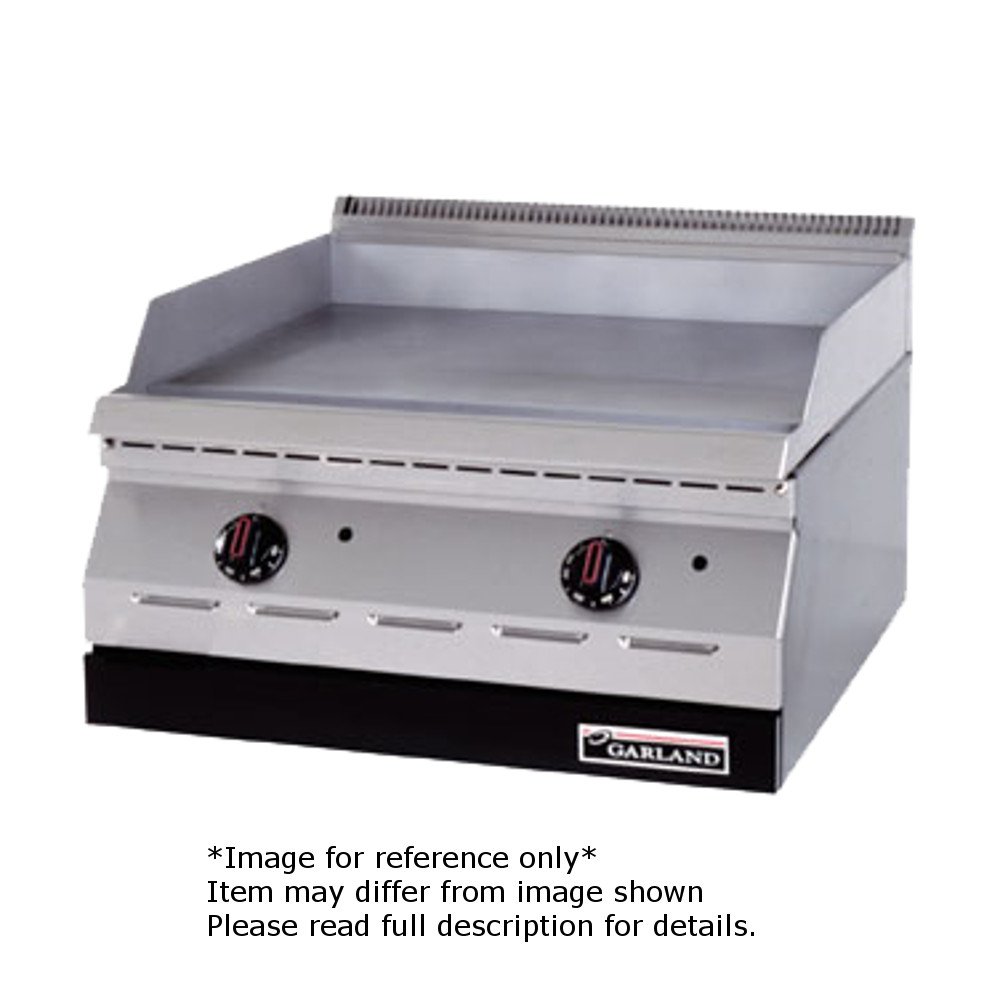

Image showing the Garland ED-36G Designer Series Electric Countertop Griddle, a 36-inch wide unit with a smooth griddle plate and front-mounted controls.
Setup and Installation
- Unpacking: Carefully remove the griddle from its packaging. Inspect for any shipping damage. Report any damage to the carrier immediately.
- Placement: Place the griddle on a stable, non-combustible countertop. Ensure adequate clearance around the unit for ventilation and safe operation. The unit is equipped with 4-inch legs.
- Electrical Connection: Connect the griddle to a dedicated 208V, 60Hz, 1-phase electrical outlet with a minimum of 49 amps. A qualified electrician should perform the final electrical connection to ensure compliance with local codes.
- Initial Cleaning: Before first use, wipe down the griddle plate and exterior surfaces with a damp cloth to remove any manufacturing residues.
Operating Instructions
- Power On: Ensure the griddle is properly connected to the power supply. Turn the main power switch (if present) to the 'ON' position.
- Temperature Setting: Use the thermostatic control knob(s) to set the desired cooking temperature. The griddle features precise temperature control for consistent cooking results.
- Preheating: Allow the griddle to preheat for approximately 15-20 minutes, or until the indicator light (if present) signals that the set temperature has been reached.
- Cooking: Apply a thin layer of cooking oil to the griddle surface before placing food. Cook food as desired, monitoring temperature and adjusting as needed.
- Grease Management: Excess grease and food debris will drain into the integrated grease drawer. Empty the grease drawer regularly during operation and after cooling.
- Power Off: After use, turn the thermostatic control knob(s) to the 'OFF' position and disconnect the main power supply.
Maintenance and Cleaning
Regular cleaning and maintenance will extend the life and performance of your griddle.
- Daily Cleaning: After each use, and once the griddle has cooled, scrape the griddle surface clean with a griddle scraper. Wipe down with a damp cloth and mild detergent. Rinse and dry thoroughly.
- Grease Drawer: Remove and empty the grease drawer regularly. Wash with warm, soapy water, rinse, and dry completely before reinserting.
- Exterior Surfaces: Wipe stainless steel surfaces with a soft cloth and a stainless steel cleaner to maintain their finish. Avoid abrasive cleaners or scouring pads.
- Deep Cleaning: Periodically, a more thorough cleaning of the griddle plate may be required. Consult a professional if deep cleaning involves disassembling components.
- Inspection: Regularly inspect the power cord and plug for any signs of damage.
Troubleshooting
Refer to this section for common issues and their solutions. For problems not listed here, contact qualified service personnel.
| Problem | Possible Cause | Solution |
|---|---|---|
| Griddle not heating | No power supply; tripped circuit breaker; faulty wiring. | Check power connection and circuit breaker. Ensure unit is plugged in. Contact an electrician if wiring is suspected. |
| Uneven heating | Griddle not preheated sufficiently; faulty heating element. | Allow adequate preheating time. If problem persists, contact service. |
| Excessive smoke | Too much oil; food residue burning; improper ventilation. | Use less oil. Clean griddle surface thoroughly. Ensure adequate ventilation. |
| Controls not responding | Electrical issue; control knob damage. | Disconnect power and reconnect. If issue persists, contact service. |
Technical Specifications
- Model: ED-36G
- Type: Electric Countertop Griddle
- Cooking Surface Dimensions: 35-5/8" W x 18" D
- Overall Width: 36"
- Control Type: Thermostatic
- Power: 10.1 kW
- Voltage: 208V, 60Hz, 1-Phase
- Amperage: 49 Amps
- Construction: Stainless Steel Front and Sides
- Legs: 4"
- Certifications: CSA, NSF, CE
Warranty and Customer Support
This Garland ED-36G griddle comes with a one-year limited parts and labor warranty. This warranty covers products purchased and installed in the USA only, under standard terms.
For warranty claims, technical assistance, or to locate authorized service providers, please contact Garland customer support. Ensure you have your model number and purchase date available when contacting support.
