1. Product Overview
The Blackhawk by Proto PT-1287 is an external retaining ring plier designed for efficient and secure handling of external retaining rings. It features a robust welded construction for enhanced durability and a no-pinch release mechanism to minimize user effort and prevent accidental pinching.
Key features include:
- Welded construction for added strength.
- No-pinch release mechanism reduces pinch points and effort required.
- Overmolded cushion grip handle for comfortable and secure use.

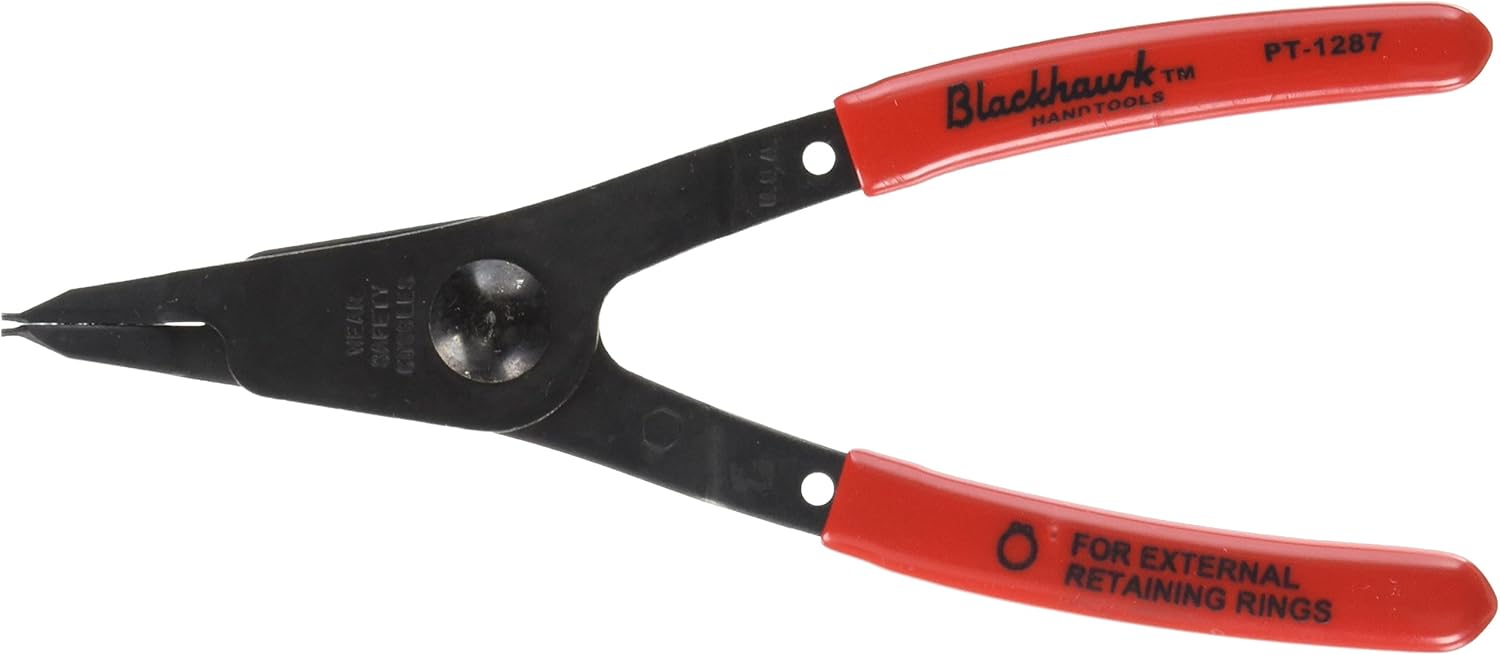

Figure 1: Front view of the Blackhawk by Proto PT-1287 External Retaining Ring Plier, showing its black body and red overmolded cushion grip handles. The brand "Blackhawk TM HANDTOOLS" and model "PT-1287" are visible on one handle, and "FOR EXTERNAL RETAINING RINGS" on the other.
2. Setup
The Blackhawk by Proto PT-1287 External Retaining Ring Plier is a ready-to-use hand tool and requires no assembly. Before first use, inspect the pliers for any signs of damage or manufacturing defects. Ensure the tips are aligned and the pivot mechanism operates smoothly.
Safety Precautions:
- Always wear appropriate personal protective equipment (PPE), such as safety glasses, when working with retaining rings, as they can spring off unexpectedly.
- Ensure the work area is well-lit and clear of obstructions.
- Do not use the pliers for purposes other than those for which they are designed.
3. Operating Instructions
These pliers are specifically designed for installing and removing external retaining rings. External retaining rings fit into a groove on the outside of a shaft or housing.
- Identify the Retaining Ring: Confirm that the retaining ring is an external type, designed to be expanded for removal or installation.
- Position the Pliers: Insert the tips of the pliers into the holes (lugs) on the retaining ring.
- Expand the Ring: Gently squeeze the handles of the pliers. This action will cause the tips to spread apart, expanding the retaining ring. The no-pinch release mechanism ensures a smooth operation.
- Remove/Install:
- For Removal: Once the ring is sufficiently expanded, carefully lift it out of its groove.
- For Installation: Position the expanded ring over the shaft or into the housing groove, then release the plier handles to allow the ring to contract and seat securely.
- Verify Seating: After installation, ensure the retaining ring is fully seated in its groove.
Figure 2: The Blackhawk by Proto PT-1287 External Retaining Ring Plier held in a hand, illustrating its compact size. Dimensions are indicated as approximately 2.7 inches (6 cm) in width when held.
4. Maintenance
Proper maintenance will extend the life of your Blackhawk by Proto PT-1287 pliers.
- Cleaning: After each use, wipe the pliers clean with a dry cloth to remove any dirt, grease, or debris. For stubborn grime, a mild degreaser can be used, followed by thorough drying.
- Lubrication: Periodically apply a small amount of light machine oil to the pivot point to ensure smooth operation and prevent rust.
- Storage: Store the pliers in a dry environment to prevent corrosion. Keep them away from excessive moisture and extreme temperatures.
- Inspection: Regularly inspect the plier tips for wear or damage. If the tips become bent or misaligned, the pliers may not function effectively and could damage retaining rings.
5. Troubleshooting
Most issues with hand tools like these pliers are related to improper use or lack of maintenance.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pliers feel stiff or difficult to open/close. | Lack of lubrication at the pivot point; dirt/debris accumulation. | Clean the pivot area and apply light machine oil. Work the handles to distribute the lubricant. |
| Tips do not properly engage retaining ring holes. | Incorrect plier size for the retaining ring; worn or bent tips. | Ensure you are using the correct size pliers for the retaining ring. Inspect tips for damage; if severely damaged, replacement may be necessary. |
| Retaining ring slips off tips during operation. | Tips not fully inserted into ring holes; incorrect angle; worn tips. | Ensure tips are fully seated in the ring's lugs. Maintain a firm grip and proper angle. Inspect tips for wear. |
6. Specifications
| Attribute | Detail |
|---|---|
| Brand | Proto (Blackhawk by Proto) |
| Model Number | PT-1287 |
| Type | External Retaining Ring Plier |
| Construction | Welded |
| Handle Type | Overmolded Cushion Grip |
| Product Dimensions | 15.75 x 3.3 x 1.02 cm (approximately 6.2 x 1.3 x 0.4 inches) |
| Item Weight | 68.04 g (approximately 2.4 ounces) |
| UPC | 662679037970 |
| Date First Available | December 20, 2012 |
7. Warranty Information
Specific warranty details for the Blackhawk by Proto PT-1287 External Retaining Ring Plier are not provided in this manual. For warranty claims or detailed information, please refer to the manufacturer's official website or contact their customer service directly. Keep your proof of purchase for any warranty-related inquiries.
8. Customer Support
For further assistance, technical support, or inquiries regarding the Blackhawk by Proto PT-1287 External Retaining Ring Plier, please contact Proto customer service. Contact information is typically available on the product packaging or the official Proto Tools website.
Note: Always refer to the latest information provided by the manufacturer for the most accurate and up-to-date support details.
