Klip Xtreme KES-390 Stereo Speakers 2.0 User Manual

1. Introduction

Thank you for purchasing the Klip Xtreme KES-390 2.0 Stereo Speakers. These speakers are designed to provide a true stereo audio experience, offering flexibility in positioning each unit to optimize sound delivery. Please read this manual carefully to ensure proper setup, operation, and maintenance of your new speakers.

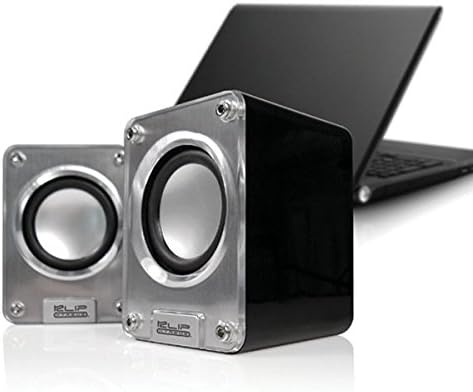

Image: Klip Xtreme KES-390 2.0 Stereo Speakers. The image shows two compact silver and black speakers positioned in front of a black laptop, highlighting their desktop use.

2. Package Contents

Ensure all items are present in the package:

• Klip Xtreme KES-390 2.0 Stereo Speakers (2 units)
• USB Power Cable
• 3.5mm Audio Cable
• User Guide

3. Product Features

• 2.0 Channel Stereo Speakers
• USB Powered for convenience
• High-quality stereophonic sound
• 3.5mm audio input for versatile connectivity
• Compact and portable design
• Audio playback via USB and SD

4. Setup Instructions

1. Positioning the Speakers: Place the two speaker units on a stable, flat surface. For optimal stereo separation, position them equidistant from your listening position.
2. Connecting Power: Connect the USB power cable from one of the speakers to an available USB port on your computer, laptop, or a USB wall adapter (not included). The speakers will power on automatically.
3. Connecting Audio Source:
   • Via 3.5mm Audio Cable: Connect one end of the included 3.5mm audio cable to the audio input jack on the speaker (usually marked "Audio In" or with a headphone icon). Connect the other end to the audio output jack of your device (e.g., computer, smartphone, MP3 player).
   • Via USB/SD Card: Insert your USB flash drive or SD card into the designated slot on the speaker. The speaker should automatically detect and begin playing audio files. Refer to the operating instructions for specific playback controls.
4. Adjusting Volume: Adjust the volume using the volume control knob on the speaker or through your connected audio device.

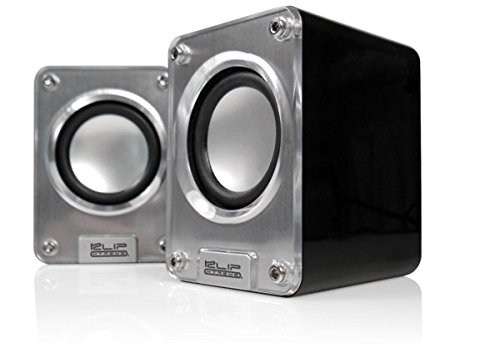

Image: A close-up view of the two Klip Xtreme KES-390 speakers, showing their silver speaker cones and black casing, ready for connection.

5. Operating Instructions

5.1 Power On/Off

The speakers are powered on automatically when connected to a USB power source. Disconnect the USB cable to power them off.

5.2 Volume Control

Locate the volume control knob on one of the speaker units. Rotate it clockwise to increase the volume and counter-clockwise to decrease it. You can also control the volume from your connected audio device.

5.3 Audio Playback (3.5mm Input)

Once the 3.5mm audio cable is connected to your device, ensure your device's volume is turned up and playback is initiated. The sound will be output through the speakers.

5.4 USB/SD Card Playback

Insert the USB drive or SD card into the corresponding slot. The speakers should automatically detect and play compatible audio files. Use the integrated controls (if available) on the speaker to navigate tracks or adjust playback settings.

6. Maintenance

• Cleaning: Use a soft, dry cloth to clean the speaker surfaces. Do not use liquid cleaners or abrasive materials, as they may damage the finish.
• Storage: When not in use for extended periods, store the speakers in a cool, dry place away from direct sunlight and extreme temperatures.
• Handling: Avoid dropping the speakers or subjecting them to strong impacts.

7. Troubleshooting

8. Specifications

9. Warranty and Support

For warranty information, please refer to the warranty card included with your product or contact your retailer. For technical support or service inquiries, please visit the official Klip Xtreme website or contact their customer service department.
