Monroe P00837 Suspension Shock Mounting Kit User Manual

Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Monroe P00837 Suspension Shock Mounting Kit. This kit is designed to provide secure and reliable mounting for suspension shocks, ensuring optimal performance and safety of your vehicle's suspension system. Please read all instructions carefully before proceeding with installation.

Components Overview

The Monroe P00837 Suspension Shock Mounting Kit includes the following components:

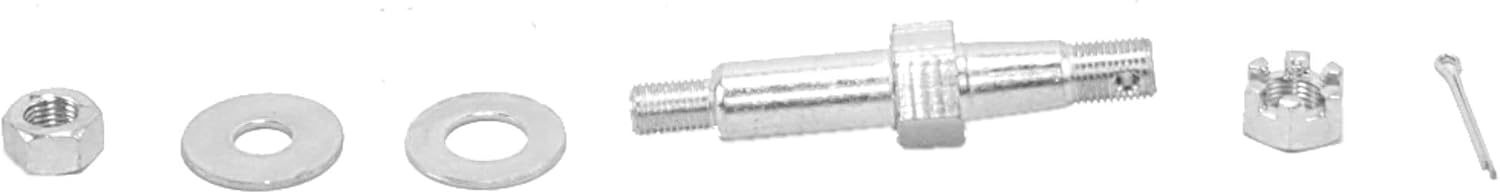

Figure 1: Components of the Monroe P00837 Suspension Shock Mounting Kit. From left to right: a standard hex nut, two flat washers, a main threaded stud with a hexagonal center, a castellated nut, and a cotter pin.

• Threaded Stud: The primary mounting pin, featuring threads on both ends and a hexagonal section for wrenching.
• Standard Hex Nut: Used to secure one end of the threaded stud.
• Flat Washers (x2): Provide a bearing surface for the nuts and help distribute load.
• Castellated Nut: A specialized nut with slots for a cotter pin, used for secure fastening where vibration might loosen a standard nut.
• Cotter Pin: Inserted through the castellated nut and a hole in the threaded stud to prevent the nut from backing off.

Setup and Installation

Proper installation is critical for the safety and performance of your vehicle's suspension. It is highly recommended that installation be performed by a qualified automotive technician.

Safety Precautions:

• Always wear appropriate personal protective equipment, including safety glasses and gloves.
• Ensure the vehicle is securely supported on jack stands or a lift before beginning work. Never rely solely on a jack.
• Refer to your vehicle's service manual for specific torque specifications and procedures.
• Do not overtighten fasteners, as this can strip threads or damage components.

Installation Steps:

1. Prepare the Vehicle: Lift and secure the vehicle. Remove the wheel and any components obstructing access to the shock mounting point.
2. Remove Old Hardware (if applicable): Carefully remove any existing mounting hardware. Note the orientation of all components.
3. Insert Threaded Stud: Insert the new threaded stud into the designated mounting hole on the shock or vehicle component. Ensure it is seated correctly.
4. Install Washers and Nuts: Place the appropriate flat washers and nuts onto the threaded stud as per the vehicle's design. Typically, one standard hex nut and washer will secure one side, and the castellated nut and cotter pin will secure the other.
5. Tighten Fasteners: Hand-tighten all nuts first. Then, using a torque wrench, tighten the nuts to the vehicle manufacturer's specified torque settings. For the castellated nut, tighten until the cotter pin hole aligns, then insert the cotter pin and bend its ends to secure it. Do not overtighten the castellated nut beyond alignment with the cotter pin hole.
6. Final Checks: Verify that all components are securely fastened and that there is no excessive play. Reinstall any removed vehicle components and the wheel.

Operating Considerations

Once installed, the Monroe P00837 Suspension Shock Mounting Kit functions as an integral part of your vehicle's suspension system. It provides the secure connection necessary for the shock absorber to dampen road irregularities effectively.

After installation, it is advisable to perform a short test drive to ensure proper function and listen for any unusual noises. If you notice any clunking, rattling, or excessive looseness in the suspension, immediately inspect the mounting hardware for proper installation and tightness.

Maintenance

The Monroe P00837 Suspension Shock Mounting Kit is designed for durability and requires minimal maintenance. However, periodic inspection is recommended as part of your vehicle's routine maintenance schedule.

• Visual Inspection: During routine vehicle inspections, visually check the mounting kit components for any signs of wear, corrosion, bending, or damage.
• Tightness Check: Periodically check the tightness of the nuts. Over time, vibrations can cause fasteners to loosen. Re-torque to manufacturer specifications if necessary.
• Cotter Pin Integrity: Ensure the cotter pin is still in place and its ends are properly bent to prevent the castellated nut from loosening. Replace if damaged or missing.
• Cleanliness: Keep the area around the mounting kit free from excessive dirt, debris, and corrosive substances.

Troubleshooting

If you experience issues after installing the Monroe P00837 Suspension Shock Mounting Kit, consider the following common problems and solutions:

If troubleshooting steps do not resolve the issue, consult a professional automotive technician.

Specifications

Warranty and Support

For specific warranty information regarding your Monroe P00837 Suspension Shock Mounting Kit, please refer to the documentation included with your purchase or visit the official Monroe website. Warranty terms and conditions may vary.

For technical support, installation assistance, or any product-related inquiries, please contact Monroe customer service or consult with a certified automotive professional.

You can find more information about Monroe products and support at the official Monroe website: www.monroe.com
