MSA Workman Full Body Style Harness

Introduction

This instruction manual provides essential information for the proper use, maintenance, and inspection of the MSA Workman Full Body Style Harness, Model 10072480. This harness is designed for fall protection applications. Read and understand all instructions before using this product. Failure to follow these instructions may result in serious injury or death.

1. Setup and Pre-Use Inspection

Before each use, a thorough inspection of the harness is critical. Never use a harness that shows signs of damage or excessive wear.

1. Visual Inspection: Examine all webbing, stitching, D-rings, buckles, and other hardware for cuts, fraying, burns, chemical damage, deformation, corrosion, or any other signs of wear or damage.
2. Donning the Harness:
   • Hold the harness by the back D-ring. Shake the harness to allow all straps to fall into place.
   • Step through the leg straps. The Workman harness features color-contrasting thigh and torso straps to assist with correct orientation and donning.
   • Pull the shoulder straps over your shoulders.
   • Connect the Qwik-Fit chest strap buckle. Ensure it is positioned across the mid-chest area.
   • Connect the Qwik-Fit leg strap buckles.
3. Adjusting the Harness:
   • Tighten all straps (shoulder, chest, leg) until the harness fits snugly but allows for full range of motion.
   • Ensure the back D-ring is positioned between the shoulder blades.
   • Secure any excess webbing using the integrated web retainer collar to prevent snagging.

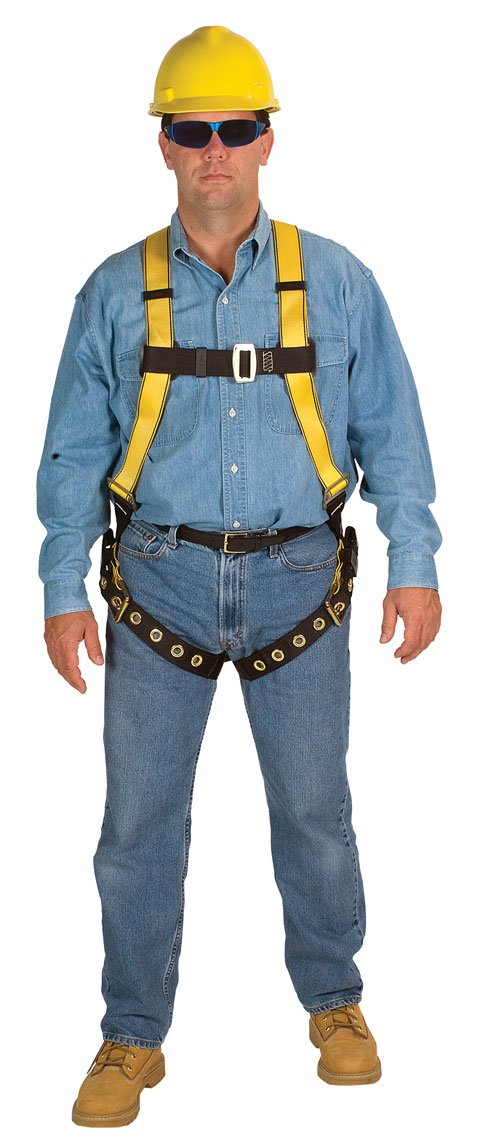

Image 1: MSA Workman Full Body Style Harness. This image shows the overall design of the harness, including the Qwik-Fit buckles on the chest and leg straps, and the back D-ring.

2. Operating Instructions

The MSA Workman Full Body Style Harness is a component of a personal fall arrest system. It must be used in conjunction with other compatible fall protection equipment.

• Connection Point: The back D-ring is the primary attachment point for a fall arrest lanyard or self-retracting lifeline. Ensure all connections are secure and compatible.
• Fall Clearance: Always ensure adequate fall clearance below the work area to prevent contact with a lower level or obstruction in the event of a fall.
• Rescue Plan: A rescue plan must be in place and understood by all personnel before working at height.
• Training: Users must be trained by a competent person in the proper use, inspection, and limitations of fall protection equipment.

3. Maintenance and Storage

Proper maintenance and storage extend the life of your harness and ensure its continued safety.

• Cleaning: Clean the harness regularly with a mild soap and water solution. Rinse thoroughly with clean water and allow to air dry completely in a shaded area, away from direct sunlight or heat. Do not use harsh chemicals, solvents, or abrasive cleaners.
• Storage: Store the harness in a cool, dry, dark place, free from direct sunlight, extreme temperatures, corrosive chemicals, and sharp objects. Avoid storing in areas where it could be exposed to fumes, moisture, or other damaging elements.
• Periodic Inspection: In addition to pre-use inspections, the harness must be inspected periodically (at least annually) by a competent person to ensure it remains in safe working condition.

4. Troubleshooting

If you encounter any issues with your harness, refer to the following guidance:

• Harness Does Not Fit Correctly: Re-adjust all straps. Ensure the correct size harness is being used. If proper fit cannot be achieved, do not use the harness.
• Visible Damage or Wear: If any part of the harness (webbing, stitching, buckles, D-rings) shows signs of damage, excessive wear, or deformation, immediately remove the harness from service. Tag it as 'UNUSABLE' and dispose of it according to company policy.
• After a Fall: A harness that has been subjected to fall arrest forces must be immediately removed from service, even if no visible damage is apparent.
• Uncertainty: If you are unsure about the condition or proper use of the harness, do not use it. Contact MSA customer support or a qualified safety professional for guidance.

5. Specifications

6. Warranty and Support

For warranty information, technical support, or any questions regarding the MSA Workman Full Body Style Harness, please contact MSA (Mine Safety Appliances Co) directly through their official website or customer service channels. Keep your purchase receipt for any warranty claims.
