1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your GROHE 37349000 Exposed WC Flush Valve. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. Keep this manual for future reference.
2. Product Overview
The GROHE 37349000 is an exposed WC flush valve designed for standard WC bowls. It features a durable brass construction with a GROHE StarLight chrome surface, ensuring both aesthetic appeal and long-lasting performance. The flush valve includes a stop valve and offers an adjustable flushing volume for water efficiency.
Figure 1: Front view of the GROHE 37349000 Exposed WC Flush Valve. This image displays the chrome-finished valve body, highlighting its sleek design and exposed mounting style.
Key Features:
- Exposed DN 20 design with stop valve
- Adjustable flushing volume: 6-9 liters
- GROHE StarLight chrome surface for durability and easy cleaning
- Brass construction with plastic cap and nut, including decorative rings
- Flow pressure adjustable between 1.2-5.0 bar
- Designed for standard WC bowls with volume regulation
3. Safety Information
Please observe the following safety guidelines during installation and operation:
- Always shut off the main water supply before beginning any installation or maintenance work.
- Ensure all connections are secure to prevent leaks.
- If you are unsure about any step, consult a qualified plumber.
- Do not use abrasive cleaners or harsh chemicals on the chrome surface.
4. Installation
The GROHE 37349000 flush valve is designed for wall-mount, single-hole installation. Mounting hardware is included.
Installation Steps:
- Prepare the Installation Area: Ensure the water supply is turned off. Clear the area around the WC bowl where the flush valve will be mounted.
- Mount the Wall Plate: Secure the wall mounting plate to the wall using the provided hardware. Ensure it is level and at the correct height for your WC bowl. Refer to the technical drawing for precise measurements.
- Connect Water Supply: Connect the water supply line to the inlet of the flush valve. The valve is designed for a DN 20 connection. Ensure a watertight seal.
- Attach Flush Valve Body: Carefully attach the main body of the flush valve to the wall plate and secure it.
- Connect to WC Bowl: Connect the outlet of the flush valve to the WC bowl. Ensure all connections are tight but do not overtighten.
- Adjust Flow Pressure: The flow pressure can be adjusted between 1.2-5.0 bar. Adjust as necessary for optimal performance.
- Check for Leaks: Slowly turn on the main water supply and check all connections for any signs of leakage. Tighten any leaking connections immediately.

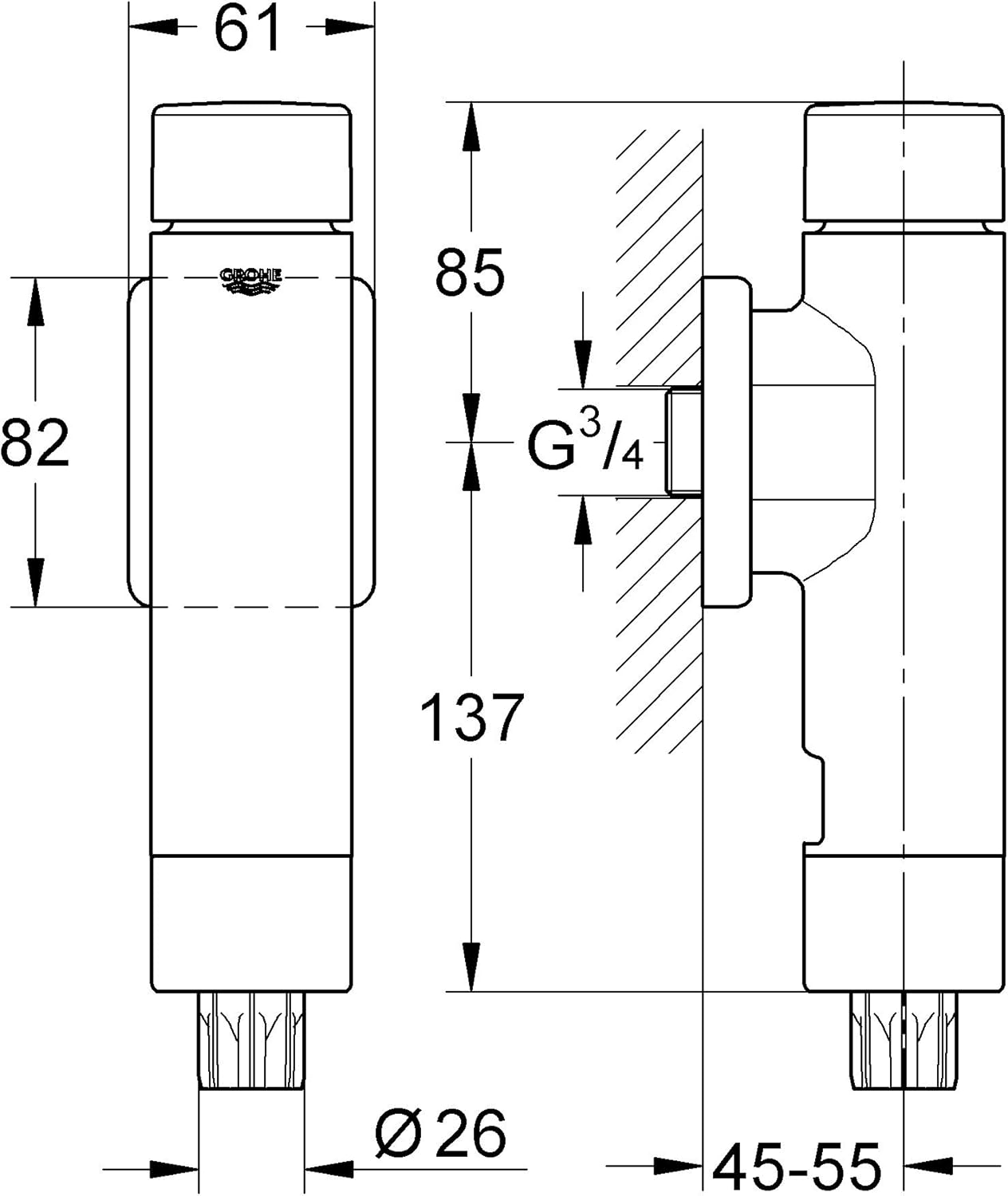

Figure 2: Technical drawing illustrating the dimensions and connection points for the GROHE 37349000 Exposed WC Flush Valve. Dimensions are provided in millimeters for accurate installation.
5. Operation
The GROHE 37349000 flush valve provides a reliable flushing mechanism with adjustable volume control.
Flushing the WC:
To flush the WC, simply press the flush button or lever on the valve. The valve is designed to deliver a consistent flush based on the set volume.
Adjusting Flushing Volume:
The flushing volume can be adjusted between 6 and 9 liters to conserve water. Consult the technical diagram or the internal mechanism for the specific adjustment screw or lever. Typically, a small adjustment screw allows you to fine-tune the amount of water released per flush. Turn clockwise to decrease volume, counter-clockwise to increase.
6. Maintenance
Regular maintenance will ensure the optimal performance and appearance of your GROHE flush valve.
Cleaning the Surface:
- Clean the GROHE StarLight chrome surface with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for chrome finishes.
- Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.
- Avoid using abrasive sponges, scouring pads, or cleaners containing alcohol, ammonia, or harsh acids, as these can damage the chrome finish.
Internal Maintenance:
- Periodically check for any signs of leaks or reduced flushing performance.
- If flushing performance degrades, the internal components (e.g., diaphragm, seals) may need inspection or replacement. Consult a qualified plumber for internal repairs.
7. Troubleshooting
If you encounter issues with your GROHE flush valve, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Weak or incomplete flush | Low water pressure; partially closed stop valve; clogged inlet filter; incorrect flush volume setting. | Check main water supply pressure. Ensure stop valve is fully open. Clean or replace inlet filter. Adjust flush volume setting. |
| Continuous water flow after flush | Faulty diaphragm or seal; debris in valve mechanism. | Turn off water supply. Inspect and clean the diaphragm/seal for debris. Replace if damaged. |
| Leakage from connections | Loose connections; damaged seals or washers. | Turn off water supply. Tighten connections. Replace any worn or damaged seals/washers. |
| Loud noise during flush | High water pressure; loose internal components. | Adjust flow pressure to within recommended range (1.2-5.0 bar). Inspect internal components for looseness. |
If the problem persists after attempting these solutions, please contact GROHE customer support or a qualified plumber.
8. Specifications
- Brand: GROHE
- Model Name: 37349000
- Mounting Type: Wall Mount
- Finish Type: Chrome
- Material: Brass
- Color: Chrome
- Included Components: Mounting Hardware
- Hole Count: 1
- Installation Type: Single Hole
- Item Weight: 3.79 pounds (1.72 kg)
- Product Dimensions: 9.45 x 3.94 x 2.2 inches (24 x 10 x 5.6 cm)
- Adjustable Flushing Volume: 6-9 liters
- Flow Pressure Range: 1.2-5.0 bar
- Series ID: Rondo A.S.
9. Warranty and Support
For warranty information and customer support, please refer to the official GROHE website or contact your local GROHE dealer. Keep your proof of purchase for warranty claims.
GROHE Customer Service: Please visit www.grohe.com for contact details and further assistance.
