Introduction
This manual provides essential information for the proper installation, operation, and maintenance of the Crouse-Hinds TB100M Malleable Iron Type TB Conduit Outlet Body. Please read this manual thoroughly before installation and retain it for future reference.
The TB100M is a 1-inch malleable iron conduit outlet body designed for use in electrical conduit systems to facilitate wire pulling, make splices and taps, and provide access to conductors for maintenance and future system changes.
Safety Information
WARNING: Electrical work should only be performed by qualified personnel. Always disconnect power at the main service panel before installing or servicing electrical components.
- Ensure all local and national electrical codes are followed during installation.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Do not install damaged components. Inspect the conduit body for any defects before installation.
- Ensure proper grounding and bonding as required by code.
Product Overview

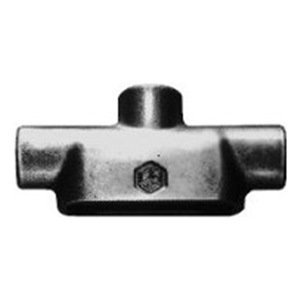

Figure 1: Crouse-Hinds TB100M Malleable Iron Type TB Conduit Outlet Body. This image shows the T-shaped conduit body with three openings, designed for branching electrical conduits.
The TB100M is a Type TB conduit body, meaning it has a T-shaped configuration with three openings. This design allows for a straight run of conduit with a 90-degree branch, or for making turns and accessing conductors at a junction point.
Key features include:
- Malleable iron construction for durability and corrosion resistance.
- 1-inch trade size for compatibility with standard 1-inch conduits.
- Designed for use in dry, damp, or wet locations when properly installed with gaskets and covers.
Setup and Installation
- Preparation: Ensure power is disconnected. Gather necessary tools: conduit wrenches, screwdrivers, wire strippers, and appropriate conduit fittings and covers.
- Mounting: Securely mount the conduit body to a suitable surface using appropriate fasteners. Ensure the mounting surface is stable and can support the weight of the conduit system.
- Conduit Connection: Thread the 1-inch conduits into the openings of the conduit body. Ensure threads are clean and free of debris. Tighten connections securely to ensure electrical continuity and mechanical stability. Use thread sealant if required by local codes or for wet locations.
- Wire Pulling: Once conduits are connected, wires can be pulled through the conduit body. The large opening facilitates easier wire pulling and reduces stress on conductors.
- Cover Installation: After wiring is complete, install the appropriate cover and gasket (sold separately) onto the conduit body. Ensure the gasket is properly seated to maintain environmental integrity. Tighten cover screws evenly to create a secure seal.
Operating Considerations
The TB100M conduit body is a passive component in an electrical system. Its "operation" pertains to its function within the conduit system:
- Wire Access: Provides an accessible point for pulling, splicing, and maintaining electrical wires.
- Directional Change: Facilitates changes in conduit direction (e.g., a 90-degree branch).
- Conductor Protection: Protects conductors from physical damage and environmental elements when properly sealed.
Ensure the conduit body is not subjected to excessive mechanical stress or vibration that could compromise its integrity or the integrity of the conduit connections.
Maintenance
The Crouse-Hinds TB100M conduit body requires minimal maintenance. Regular inspections are recommended to ensure continued performance and safety.
- Periodic Inspection: Annually or as required by local regulations, inspect the conduit body and its connections for signs of corrosion, physical damage, or loose connections.
- Gasket and Cover Check: Ensure the cover and gasket are intact and properly sealed, especially in damp or wet locations. Replace worn or damaged gaskets and covers immediately.
- Cleaning: If necessary, clean the exterior of the conduit body with a damp cloth. Do not use abrasive cleaners or solvents that could damage the finish.
- Tightness Check: Periodically check the tightness of conduit connections and cover screws.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water/Moisture Ingress | Damaged or improperly seated gasket; loose cover screws; inadequate thread sealant on conduit connections. | Inspect and replace gasket; tighten cover screws evenly; apply appropriate thread sealant to conduit connections. |
| Loose Conduit Connection | Insufficient tightening during installation; vibration. | Ensure power is off, then re-tighten conduit connections securely. |
| Corrosion on Exterior | Exposure to harsh environmental conditions; damaged protective coating. | Clean and apply a suitable corrosion-resistant coating if necessary. Ensure proper environmental sealing. |
Specifications
- Model: TB100M
- Brand: Crouse-Hinds
- Material: Malleable Iron
- Trade Size: 1 Inch
- Type: TB Conduit Outlet Body
- Dimensions (Approximate): 7.05 x 2.65 x 1.8 inches (L x W x H)
- Weight (Approximate): 2.02 Pounds
- Manufacturer: CROUSEH
- First Available: August 1, 2009
Warranty and Support
For specific warranty information regarding the Crouse-Hinds TB100M, please refer to the official Crouse-Hinds website or contact their customer support directly. Warranty terms typically cover manufacturing defects.
Customer Support: For technical assistance, product inquiries, or warranty claims, please contact Crouse-Hinds customer service. Contact details can usually be found on the manufacturer's official website or product packaging.
Note: This manual is for informational purposes only and does not supersede any local electrical codes or regulations. Always consult with a qualified electrician for installation and service.
