Introduction
This manual provides instructions for the safe installation, operation, and maintenance of your Hampton Bay Gazebo II 42-inch Indoor/Outdoor Brushed Nickel Ceiling Fan, model YG187-BN. This fan is designed for use in various settings, including small patios, closets, and bathrooms. It features five reversible, weather-resistant blades with silver and black finishes, offering aesthetic versatility. The fan is adaptable for use with a light kit and a remote control, though these accessories are not included with the fan. It includes 54-inch lead wires for compatibility with an extension downrod longer than the standard 4-1/2 inch downrod (longer downrod not included).
Safety Information
Read and understand all instructions before beginning installation. Improper installation can lead to electrical shock, fire, or personal injury.
- Electrical Safety: Always disconnect power at the main circuit breaker before installing, cleaning, or servicing the fan. Ensure all electrical connections comply with local codes and ordinances. If you are unfamiliar with electrical wiring, consult a qualified electrician.
- Mounting: The fan must be mounted to a structurally sound outlet box or support system capable of supporting a minimum of 35 lbs (15.9 kg). Use only the hardware provided with the fan.
- Blade Clearance: Ensure there is at least 7 feet (2.1 meters) of clearance from the floor to the bottom edge of the fan blades. Maintain a minimum of 30 inches (76 cm) from the blade tips to any walls or obstructions.
- Motor Operation: Do not operate the fan with damaged blades or if the motor housing is loose.
- Outdoor Use: This fan is rated for indoor/outdoor use. When installed outdoors, ensure it is in a covered location, protected from direct exposure to water.
What's in the Box
The Hampton Bay Gazebo II Outdoor Fan package includes the following components:
- Fan Motor Assembly (YG187-BN)
- 5 Fan Blades
- Mounting Bracket
- Downrod (4-1/2 inches)
- Canopy
- Hardware Pack (screws, washers, wire nuts)
- Instruction Manual
Image: The product packaging for the Hampton Bay Gazebo II Outdoor Fan, displaying the fan's features and included components.
Setup and Installation
Professional installation by a qualified electrician is recommended for all electrical wiring procedures.
- Prepare for Installation: Turn off power at the circuit breaker. Clear the installation area.
- Install Mounting Bracket: Secure the mounting bracket to the ceiling outlet box. Ensure the box is rated for fan support.
- Assemble Downrod: Insert the downrod through the canopy and connect it to the fan motor assembly. Route the electrical wires through the downrod.
- Hang Fan: Carefully lift the fan assembly and hang it from the mounting bracket.
- Wire Connections: Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the full instruction manual. Use the included wire nuts.
- Attach Blades: Securely attach the five fan blades to the motor housing using the provided screws. Ensure the blades are firmly attached. The blades are reversible, offering a choice between silver and black finishes.
Image: A detailed view of the fan's motor housing and the connection point for the downrod, showcasing the brushed nickel finish.

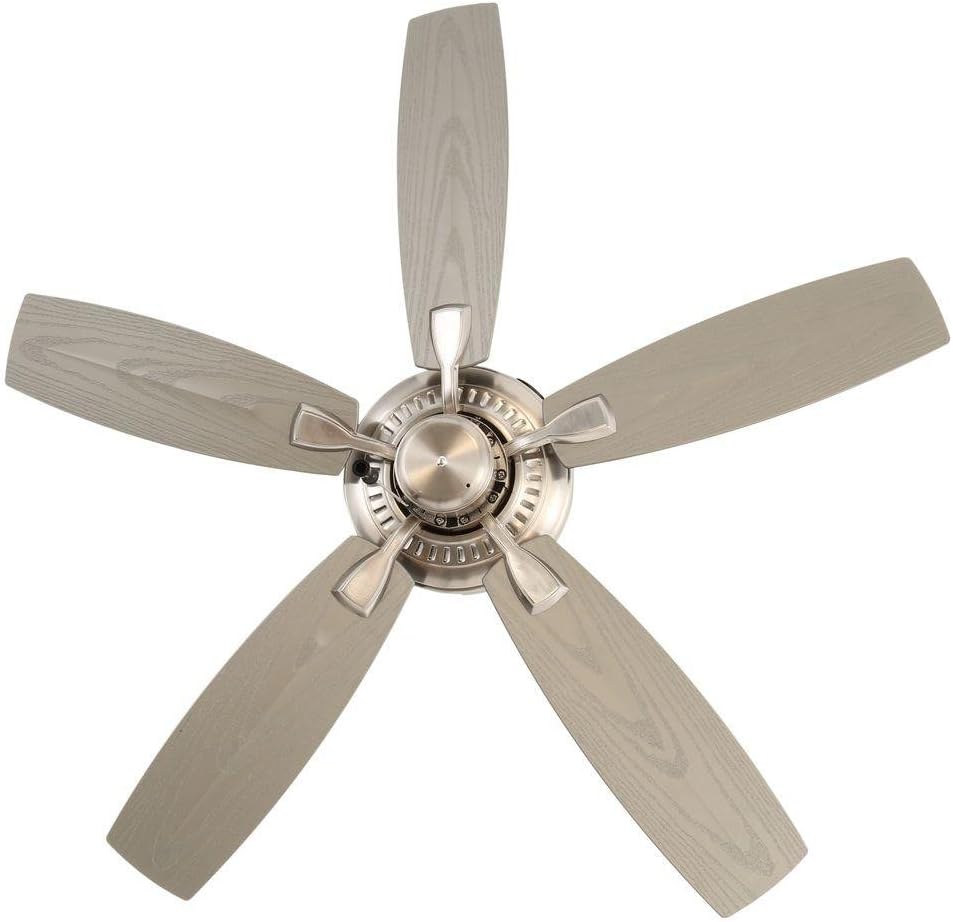

Image: An overhead view of the assembled fan, highlighting the five blades and the central motor unit.
Image: The reversible fan blades, one side featuring a black finish and the other a silver/gray finish, allowing for customization.
Operating Instructions
Once installed, your Hampton Bay Gazebo II fan is ready for operation.
- Power On: Restore power at the main circuit breaker.
- Fan Speed Control: The fan speed is controlled by a pull chain located on the motor housing. Pull the chain repeatedly to cycle through different speed settings (e.g., High, Medium, Low, Off).
Image: A close-up of the pull chain mechanism, used to adjust the fan's speed settings.
- Reverse Function: A slide switch on the fan's motor housing controls the direction of blade rotation. In warm weather, set the switch for downward airflow to create a cooling effect. In cool weather, set the switch for upward airflow to circulate warm air near the ceiling. Ensure the fan is completely stopped before changing the direction switch.
- Light Kit/Remote (Optional): If you have installed an optional light kit or remote control, refer to their respective instruction manuals for operation.
Maintenance
Regular maintenance ensures optimal performance and extends the life of your fan.
- Cleaning: Dust the fan blades and motor housing periodically with a soft, lint-free cloth. Do not use abrasive cleaners or solvents, as these can damage the finish. For outdoor installations, wipe down surfaces with a damp cloth as needed.
- Tightness Check: Periodically check all screws on the motor housing, downrod, and blade attachments to ensure they are secure. Loose connections can cause wobbling or noise.
- Blade Balance: If the fan wobbles excessively, ensure all blades are securely attached and that their weights are evenly distributed. A blade balancing kit (not included) can be used if necessary.
Troubleshooting
Before performing any troubleshooting, ensure power is disconnected at the circuit breaker.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to the fan; Loose wire connections; Incorrect wiring; Motor malfunction. | Check circuit breaker and wall switch. Ensure all wire connections are secure. Verify wiring against the manual's diagram. If issues persist, consult an electrician. |
| Fan wobbles | Loose blade screws; Unbalanced blades; Loose mounting bracket; Downrod not seated correctly. | Tighten all blade screws. Check blade balance (use a balancing kit if needed). Ensure mounting bracket is securely fastened. Verify downrod is properly seated and secured. |
| Noisy operation | Loose screws; Motor hum; Blades hitting an obstruction. | Check and tighten all screws. Ensure canopy is not touching the ceiling. Verify no obstructions are in the blade path. A slight motor hum is normal. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Hampton Bay |
| Model Name | Gazebo II |
| Model Number | YG187-BN |
| Size | 42 inches |
| Color/Finish | Brushed Nickel |
| Number of Blades | 5 |
| Blade Material | Plastic (Reversible Silver/Black) |
| Indoor/Outdoor Usage | Indoor/Outdoor (Covered) |
| Power Source | Corded Electric |
| Voltage | 120 Volts |
| Wattage | 49 watts |
| Control Method | Pull Chain (Remote Control adaptable, not included) |
| Mounting Type | Ceiling Mount |
| Item Weight | 13.9 Pounds |
| Included Components | Fan Motor Assembly, Blades, Downrod, Mounting Hardware |
Warranty Information
The manufacturer's warranty information for this product is not explicitly detailed in the provided specifications. Please refer to the documentation included with your purchase or contact Hampton Bay customer support for specific warranty terms and conditions.
Support
For further assistance, technical support, or to inquire about replacement parts, please contact Hampton Bay customer service or the retailer where the product was purchased. Always have your model number (YG187-BN) and purchase date available when seeking support.
