Hamilton Beach 31199XR Countertop Convection Oven Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your Hamilton Beach 31199XR Countertop Convection Oven. This appliance is designed for versatile cooking, offering toasting, baking, broiling, and convection functions. It serves as an efficient alternative to a full-size oven for various cooking tasks.

Please read all instructions thoroughly before using the oven for the first time and retain this manual for future reference.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions before operating the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plug, or oven in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• To disconnect, turn any control to 'OFF', then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Oversize foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.
• A fire may occur if the oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
• Do not place any materials other than manufacturer's recommended accessories in this oven.
• Do not place cardboard, plastic, paper, or similar materials in the oven.
• Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
• Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.
• Always wear protective, insulated oven mitts when inserting or removing items from the hot oven.

3. Components and Features

Your Hamilton Beach 31199XR Countertop Convection Oven includes the following components and features:

• Function Control Knob: Selects cooking mode (Toast, Bake, Broil, Convection).
• Temperature Control Knob: Adjusts temperature up to 450°F (232°C).
• Timer Knob: Sets cooking time up to 2 hours with automatic shut-off. Includes a 'Stay On' option for extended cooking.
• Power Indicator Light: Illuminates when the oven is operating.
• See-through Door: Allows for convenient monitoring of cooking progress.
• Slide-out Crumb/Drip Tray: Collects crumbs and drips for easy cleaning.
• Two Racks: For holding food items at different levels.
• Two Baking Pans: Suitable for various baking needs.
• Broil Grid Rack: Designed for broiling applications.
• Convection Fan: Circulates hot air for faster and more even cooking.
• Extra-large Capacity: Accommodates two 12-inch pizzas or multiple toast slices.

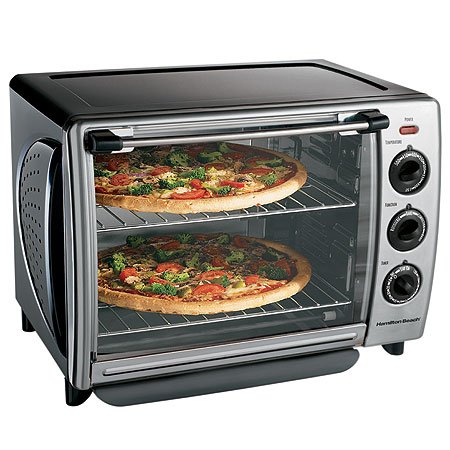

This image displays the Hamilton Beach 31199XR Countertop Convection Oven, highlighting its compact design and the three control knobs for function, temperature, and timer located on the right side of the appliance.

4. Setup

1. Unpack: Carefully remove the oven and all accessories from the packaging. Remove any packing materials, stickers, or protective film from the oven and its components.
2. Placement: Place the oven on a stable, level, and heat-resistant surface. Ensure there is at least 4 inches (10 cm) of clearance on all sides (back, sides, and top) to allow for proper ventilation. Do not place the oven directly against a wall or under cabinets.
3. Crumb Tray: Ensure the slide-out crumb/drip tray is properly inserted into its designated slot at the bottom of the oven.
4. Power Connection: Plug the power cord into a standard, grounded 120V AC electrical outlet. Do not use an extension cord.
5. Initial Burn-off: Before first use, operate the oven empty on the 'Bake' function at 450°F (232°C) for approximately 15 minutes. This will burn off any manufacturing oils and may produce a slight odor or smoke, which is normal. Ensure the area is well-ventilated during this process.

5. Operating Instructions

Familiarize yourself with the three control knobs: Function, Temperature, and Timer. Always preheat the oven if required by your recipe for optimal results.

5.1. Toasting

1. Place items to be toasted directly on the wire rack.
2. Close the oven door.
3. Turn the Function knob to 'Toast'.
4. Turn the Temperature knob to 'Toast'.
5. Turn the Timer knob past 10 and then back to your desired toast shade (light, medium, dark). The oven will automatically shut off when the timer expires.

5.2. Baking

1. Place food in a baking pan or on the wire rack.
2. Close the oven door.
3. Turn the Function knob to 'Bake' or 'Convection Bake'.
4. Turn the Temperature knob to the desired baking temperature (up to 450°F).
5. Turn the Timer knob to the desired baking time. For continuous baking, turn the timer to the 'Stay On' position.
6. The power indicator light will illuminate. The oven will preheat to the set temperature.
7. When baking is complete, turn the Timer knob to 'OFF' if not using 'Stay On', and carefully remove food.

5.3. Broiling

1. Place food on the broil grid within a baking pan to catch drips. Position the rack closer to the top heating elements for effective broiling.
2. Close the oven door.
3. Turn the Function knob to 'Broil'.
4. Turn the Temperature knob to 'Broil'.
5. Turn the Timer knob to the desired broiling time. Broiling is typically a quick process, so monitor food closely to prevent burning.
6. When broiling is complete, turn the Timer knob to 'OFF' and carefully remove food.

5.4. Convection Cooking

The convection function utilizes a fan to circulate hot air throughout the oven cavity. This results in faster and more even cooking, often eliminating the need to rotate food. When using convection, it is generally recommended to:

• Reduce the recipe's recommended temperature by 25°F (15°C).
• Reduce the recipe's recommended cooking time by 25%.

Always check food for doneness earlier than the recipe suggests when using convection.

6. Cleaning and Maintenance

Regular cleaning and maintenance will ensure the longevity and optimal performance of your oven.

1. Always Unplug: Before cleaning, ensure the oven is unplugged from the electrical outlet and has cooled down completely.
2. Crumb Tray: Remove the slide-out crumb/drip tray and empty any crumbs. Wash the tray in warm, soapy water, rinse, and dry thoroughly.
3. Racks and Pans: Wash the wire racks, baking pans, and broil grid in warm, soapy water. For stubborn food residue, soak them before washing. Rinse and dry completely.
4. Interior: Wipe the interior surfaces of the oven with a damp cloth or sponge. For baked-on food, use a mild, non-abrasive cleaner. Do not use metal scouring pads or harsh abrasive cleaners, as they can damage the interior finish.
5. Exterior: Wipe the exterior surfaces with a damp cloth. Dry thoroughly.
6. Door: Clean the glass door with a damp cloth and a mild glass cleaner if necessary.
7. Storage: Ensure all parts are dry before reassembling and storing the oven.

7. Troubleshooting

If you encounter issues with your oven, refer to the following common problems and solutions:

• Oven Not Turning On:
  • Check if the power cord is securely plugged into a working electrical outlet.
  • Ensure the Timer knob is set to a cooking time or the 'Stay On' position, not 'OFF'.
  • Verify that the circuit breaker has not tripped.
• Food Not Cooking Evenly:
  • Ensure the oven was preheated to the correct temperature before adding food.
  • Check that the rack position is appropriate for the food being cooked.
  • For convection cooking, ensure there is adequate space around the food for air circulation. Avoid overcrowding the oven.
  • Consider rotating food halfway through cooking for very large items.
• Excessive Smoke During Operation:
  • The crumb tray or interior may need cleaning. Food particles or grease can burn and cause smoke.
  • Ensure fatty foods are placed in a baking pan to catch drips and prevent them from falling onto heating elements.
  • Initial use may produce a slight odor or smoke; this is normal and should dissipate.
• Timer Not Working:
  • Ensure the Timer knob is turned past the 10-minute mark before setting the desired time to engage the timer mechanism.

8. Specifications

9. Warranty and Support

This Hamilton Beach 31199XR Countertop Convection Oven is covered by a 1-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal household use.

The warranty does not cover damage resulting from accident, misuse, abuse, commercial use, or unauthorized modification of the product.

For warranty claims, technical assistance, or to inquire about replacement parts, please contact Hamilton Beach customer service. Refer to the official Hamilton Beach website or product packaging for current contact information.
