Introduction
Thank you for choosing the Bamix 391200 DeLuxe Hand Mixer. This versatile kitchen appliance is designed for efficient mixing, blending, and processing of various food items. To ensure safe and optimal performance, please read this instruction manual thoroughly before first use and retain it for future reference.
Important Safety Instructions
- Read all instructions before using the appliance.
- Do not immerse the motor unit in water or other liquids. Clean with a damp cloth only.
- Keep hands, hair, clothing, and utensils away from moving parts during operation to prevent injury.
- Always unplug the appliance from the power outlet before cleaning, assembling, or disassembling parts.
- This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
- Avoid contact with moving parts.
- The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
- Do not use outdoors.
- Do not let the cord hang over the edge of a table or counter or touch hot surfaces.
- Always ensure the appliance is switched off before changing accessories or approaching parts that move in use.
Components Overview
The Bamix DeLuxe Hand Mixer comes with several components designed for various kitchen tasks.

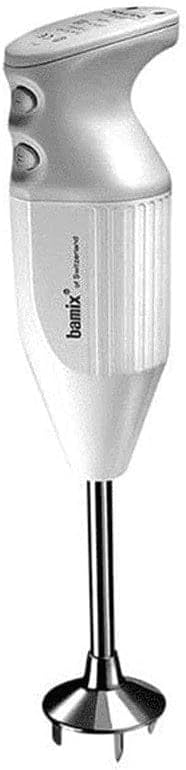

Figure 1: Bamix 391200 DeLuxe Hand Mixer. This image displays the main motor unit with the multi-purpose blade attached, featuring a sleek white design with control buttons on the handle.
Figure 2: Bamix Hand Mixer in Use. The hand mixer is shown in a kitchen setting, surrounded by fresh ingredients like strawberries, blueberries, and oats, illustrating its use for preparing various dishes.
Figure 3: Bamix Hand Mixer with Accessories. This image displays the Bamix hand mixer along with its typical accessories, including a stand and a processor attachment, highlighting its versatility.

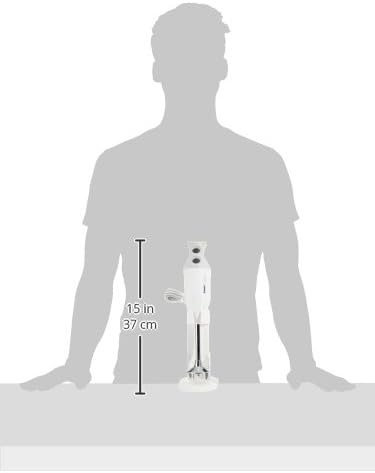

Figure 4: Bamix Hand Mixer Dimensions. This image provides a visual representation of the hand mixer's dimensions, indicating a height of approximately 15 inches (37 cm) when on its stand.
Standard Components:
- Motor Unit: The main body of the hand mixer containing the motor and control buttons.
- Multi-Purpose Blade: For chopping, pureeing, and mixing.
- Whisk Blade: For whipping cream, beating egg whites, and emulsifying sauces.
- Beater Blade: For stirring and blending thicker liquids, such as mayonnaise or pancake batter.
- Dough Blade: Specifically designed for kneading small quantities of dough.
- Wall Bracket or Stand: For convenient storage.
Setup
- Unpacking: Carefully remove all components from the packaging. Retain packaging for storage or transport.
- Initial Cleaning: Before first use, clean all detachable parts (blades, containers) with warm soapy water. Wipe the motor unit with a damp cloth. Ensure all parts are completely dry before assembly.
- Attaching Blades: Select the appropriate blade for your task. Align the blade with the drive shaft at the bottom of the motor unit and push it firmly until it clicks into place. Ensure it is securely fastened.
- Power Connection: Plug the hand mixer into a suitable electrical outlet. The Bamix 391200 operates on 5 Volts.
Operating Instructions
The Bamix hand mixer features two speed settings for optimal control over various ingredients.
General Operation:
- Preparation: Place ingredients in a suitable container. Ensure the container is deep enough to prevent splashing.
- Immersion: Immerse the blade end of the hand mixer into the ingredients before switching it on. The immersion depth should cover the blade completely.
- Power On: Press the desired speed button (Speed 1 for lower speed, Speed 2 for higher speed) to start the mixer.
- Mixing Technique: Move the mixer gently up and down and in circular motions to ensure even processing. For best results, keep the blade slightly above the bottom of the container to create a vortex.
- Power Off: Release the speed button to turn off the mixer. Wait for the blade to stop completely before removing it from the ingredients.
Using the Dough Blade:
The included dough blade is ideal for kneading small quantities of dough, such as for bread, pizza, or pastries.
- Attach the dough blade securely to the motor unit.
- Place dough ingredients in a sturdy mixing bowl.
- Immerse the dough blade into the mixture.
- Start the mixer on Speed 1 or 2, depending on the dough consistency. Move the mixer in a circular motion, allowing the blade to pull and knead the dough.
- Continue until the dough reaches the desired consistency.
Cleaning and Maintenance
Regular cleaning and proper maintenance will extend the life of your Bamix hand mixer.
- Immediate Cleaning: After each use, unplug the appliance. Remove the blade. Rinse the blade and the lower part of the drive shaft under running water. For stubborn residue, immerse the blade end in a container of warm soapy water and briefly run the mixer.
- Motor Unit: Wipe the motor unit with a damp cloth. Do not immerse it in water.
- Drying: Ensure all parts are thoroughly dried before storing.
- Storage: Store the hand mixer and its accessories in a dry place, preferably on the provided wall bracket or stand.
- Lubrication: Periodically, apply a few drops of vegetable oil to the drive shaft where the blade attaches to ensure smooth operation.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Mixer does not turn on. | Not plugged in; power outlet malfunction; internal fault. | Check power cord connection. Test outlet with another appliance. If problem persists, contact customer support. |
| Blade does not rotate or rotates slowly. | Blade jammed by ingredients; incorrect blade attachment; motor overload. | Unplug and clear any obstructions from the blade. Ensure blade is correctly attached. Reduce quantity of ingredients or use a higher speed setting. |
| Unusual noise or vibration. | Loose blade; foreign object; worn parts. | Unplug and check blade attachment. Inspect for foreign objects. If noise persists, contact customer support. |
Specifications
- Model: Bamix 391200 DeLuxe White
- Brand: Bamix
- Power Source: Corded Electric
- Voltage: 5 Volts
- Blade Material: Stainless Steel
- Dimensions: Approximately 6.3 x 9.06 x 5.91 inches (16 x 23 x 15 cm)
- Item Weight: Approximately 1.86 pounds (0.84 kg)
- Included Components: Dough Blade (standard, other blades may vary by package)
Warranty and Support
Your Bamix 391200 DeLuxe Hand Mixer is manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your product or visit the official Bamix website. In case of technical issues, questions, or to purchase replacement parts, please contact Bamix customer support.
For further assistance, please visit the Bamix Store on Amazon or consult your local authorized dealer.
