Introduction
The Konuspoint-6 is an oil-filled compass designed by Konus to help you easily determine cardinal directions: North, South, East, and West. Constructed from durable plastic, this compass is remarkably compact and lightweight, making it an ideal companion for outdoor activities and navigation. This manual provides essential information for its proper use and care.
Safety Warning: This product is not suitable for children under 14 years of age.
Product Overview
The Konuspoint-6 compass features a clear, liquid-filled capsule that allows the compass needle to settle quickly and accurately. Its compact, foldable design protects the compass dial when not in use.

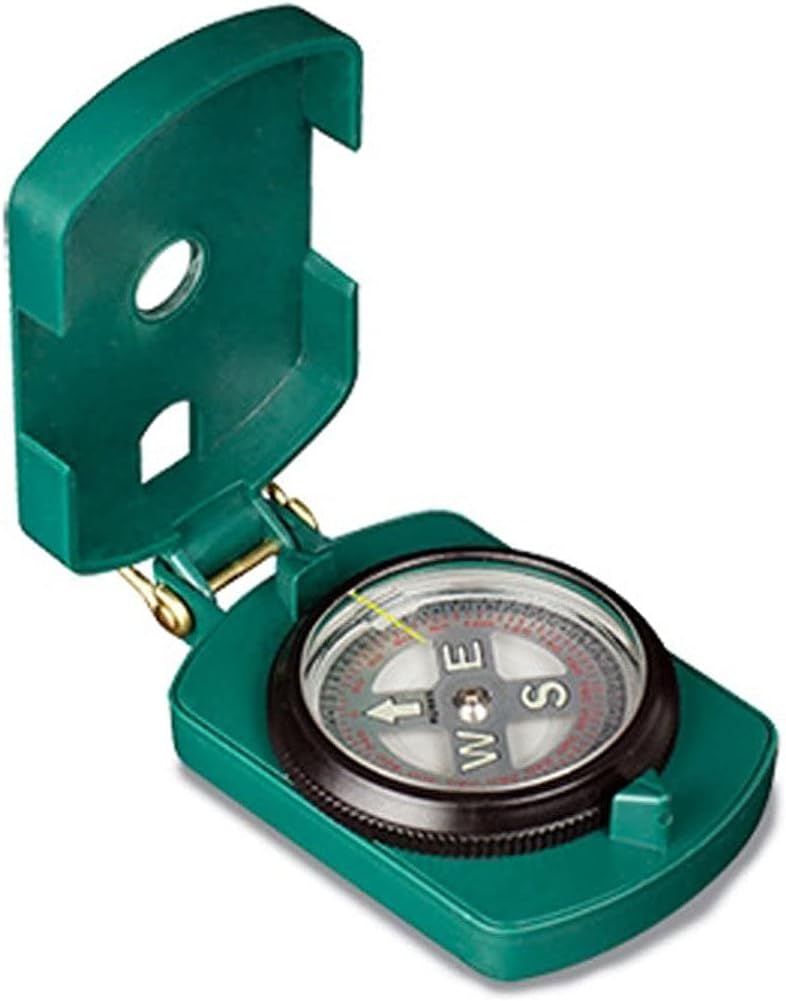

Image 1: The Konuspoint-6 compass in its open position, displaying the clear dial with cardinal direction indicators (N, S, E, W) and a rotating bezel for precise readings.
Key Features:
- Oil-Filled Capsule: Ensures stable and accurate needle movement.
- Durable Plastic Construction: Lightweight and robust for outdoor use.
- Compact and Portable Design: Easily fits into pockets or small bags.
- Clear Dial: Easy-to-read markings for cardinal directions.
Setup
The Konuspoint-6 compass requires minimal setup. It is ready for use directly out of its packaging.
- Unpack the Compass: Carefully remove the compass from its packaging.
- Open the Cover: Flip open the protective cover of the compass. The cover is designed to shield the compass dial and needle when not in use.
- Familiarize Yourself: Observe the compass dial. The red end of the needle typically points North. The dial is marked with N (North), S (South), E (East), and W (West).
Image 2: The Konuspoint-6 compass fully opened, showing the protective lid and the compass dial. This is the ready-to-use configuration.
Operating Instructions
Using your Konuspoint-6 compass for basic navigation is straightforward. Follow these steps to determine your direction:
- Hold the Compass Level: Hold the compass flat and level in the palm of your hand or on a flat surface. Ensure it is away from any metallic objects or electronic devices that could interfere with its magnetic needle.
- Allow the Needle to Settle: Wait for the red end of the compass needle to stop moving and point consistently in one direction. This direction is Magnetic North.
- Orient Yourself: Once the needle has settled, rotate your body and the compass together until the "N" (North) marking on the compass dial aligns with the red (North-pointing) end of the needle.
- Read Directions: With the "N" aligned with the North-pointing needle, the other cardinal directions (S, E, W) on the dial will now correspond to their true directions relative to your position. For example, if you are facing North, East will be to your right, West to your left, and South behind you.
Note: Compasses point to Magnetic North, which is slightly different from True North. For precise navigation, especially with maps, understanding magnetic declination is important. However, for general orientation, aligning with Magnetic North is sufficient.
Maintenance
Proper care will ensure the longevity and accuracy of your Konuspoint-6 compass.
- Cleaning: Wipe the compass with a soft, damp cloth to remove dirt or dust. Avoid using harsh chemicals or abrasive materials, as these can damage the plastic casing or the clear dial.
- Storage: When not in use, close the protective cover to prevent scratches to the dial. Store the compass in a cool, dry place, away from strong magnetic fields (e.g., magnets, speakers, large metal objects, electronic devices) to prevent demagnetization of the needle.
- Avoid Extreme Temperatures: Do not expose the compass to extreme heat or cold, as this can affect the liquid inside the capsule and potentially damage the compass.
Troubleshooting
If you encounter issues with your compass, consider the following:
| Problem | Possible Cause | Solution |
|---|---|---|
| Needle does not settle or points erratically. | Magnetic interference from nearby objects (e.g., metal, electronics, power lines). | Move to an open area away from any potential sources of magnetic interference. Ensure no metal objects are directly on or near the compass. |
| Bubbles appear in the liquid capsule. | Minor temperature changes or air trapped during manufacturing. | Small bubbles are generally normal and do not affect accuracy. If large bubbles appear or persist, ensure the compass is not exposed to extreme temperatures. |
| Compass appears damaged or cracked. | Physical impact or mishandling. | Discontinue use if the compass is significantly damaged, as its accuracy may be compromised. Contact Konus support for replacement options. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Konus |
| Model Number | KonusPOINT6 |
| Product Type | Oil-filled Compass |
| Material | Plastic |
| Dimensions (L x W x H) | Approximately 30 x 30 x 30 cm (packaged dimensions, actual compass is compact) |
| Item Weight | 1 Kilogram (packaged weight, actual compass is lightweight) |
| Special Feature | Compact, Portable |
| Manufacturer | Konus, USA |
Note: Dimensions and weight may refer to packaged product. The compass itself is designed to be lightweight and compact for portability.
Warranty and Support
For specific warranty information regarding your Konus Konuspoint-6 compass, please refer to the documentation included with your purchase or visit the official Konus website. For technical support, troubleshooting assistance beyond what is provided in this manual, or inquiries about replacement parts, please contact Konus customer service directly.
Konus Official Website: www.konus.com (Please verify the exact URL as this is a placeholder example)
