Introduction
The Dynamic Alicante Far Infrared Sauna is designed to provide a beneficial and relaxing experience in your home. This sauna utilizes Bio-Ceramic heaters to deliver penetrating infrared waves, aiding in detoxification, circulation, and muscle relaxation. Constructed with Reforested Canadian Hemlock wood, it offers efficient heat retention and energy use.
This manual provides essential information for the safe and effective assembly, operation, and maintenance of your sauna.
Safety Information
- For indoor use only. Do not install or operate outdoors.
- Requires a dedicated 15 amp 110 volt outlet. No special wiring is required. Ensure the outlet is properly grounded.
- Do not operate the sauna if any components are damaged or if the electrical cord is frayed.
- Consult a physician before use if you have pre-existing health conditions, are pregnant, or are taking medication.
- Avoid prolonged exposure at high temperatures. Limit sessions to recommended durations.
- Keep children and pets away from the sauna during operation to prevent accidental injury.
- Do not use alcohol or drugs before or during sauna use.
Setup and Assembly
Assembly typically takes approximately 45 minutes. Due to the size and weight of the panels, two individuals are recommended for easier and safer assembly.
The sauna can be installed on carpet or any other stable, level indoor flooring. Ensure adequate space around the sauna for ventilation and access.
Panels connect using pre-installed hook-and-slot hardware and buckle-type fasteners, designed for straightforward assembly. Follow the detailed instructions provided in the separate assembly guide for step-by-step panel connection and roof installation.
Ensure all electrical connections within the sauna are securely fastened before connecting the unit to the main power supply.

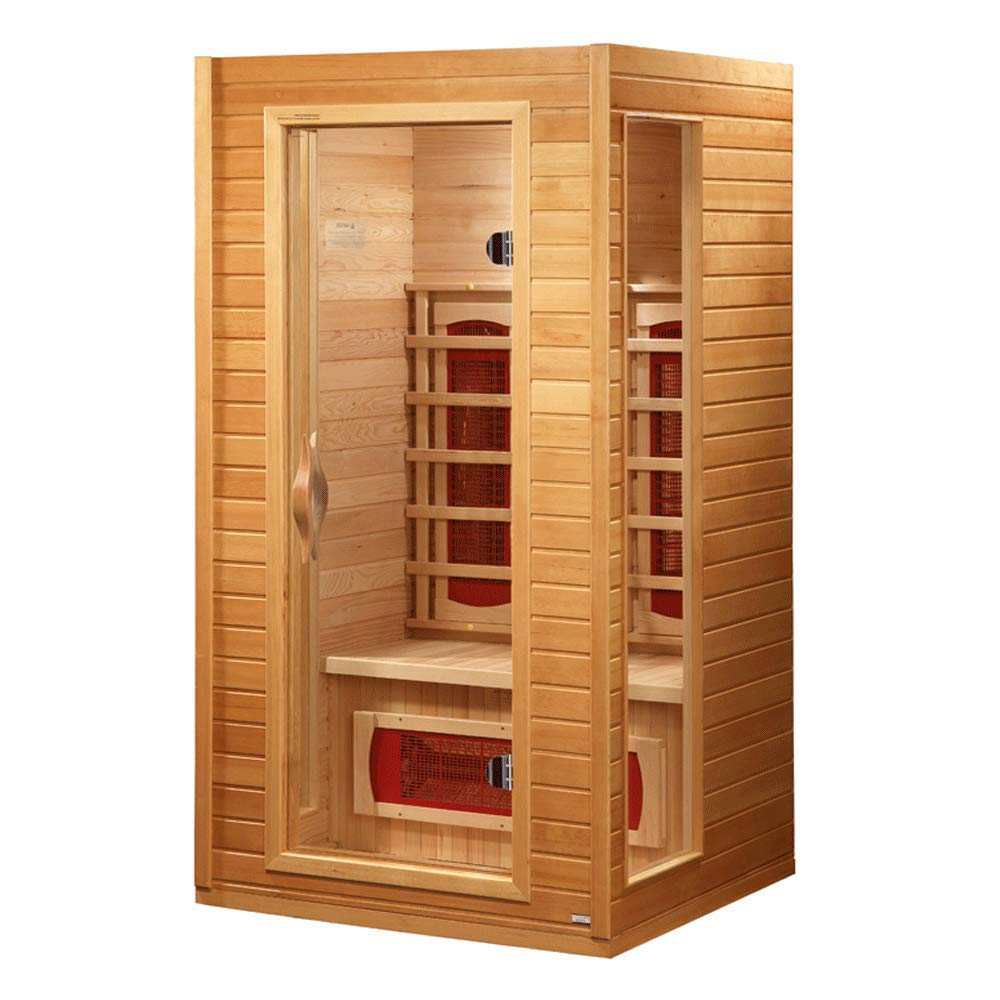

Figure 1: Fully assembled Dynamic Alicante Far Infrared Sauna. This image shows the exterior of the sauna, highlighting its Canadian Hemlock wood construction and tempered glass door. The interior features Bio-Ceramic heaters visible through the wooden grates.
Operating Instructions
The sauna features dual interior and exterior LED control panels for convenient temperature and time settings. These panels are mirror images, allowing control from inside or outside the sauna.
- Power On: Press the power button on either control panel to turn on the sauna.
- Set Temperature: Use the temperature controls to set your desired heat level. The sauna is most effective at approximately 120°F (49°C) but can operate up to 130°F (54°C).
- Set Time: Use the timer controls to set your desired session duration.
- Pre-heat: Allow the sauna to pre-heat for approximately 15-20 minutes to reach the set temperature before entering.
- Audio Connection: An MP3 auxiliary connection with built-in speakers is provided. Connect your audio device to the auxiliary port to enjoy music during your session.
- Interior Lighting: An interior reading light can be activated for convenience.
- Session End: The sauna will automatically shut off once the set time has elapsed. You can also manually turn off the sauna at any time.
Maintenance
- Cleaning: Clean the interior and exterior wood surfaces with a soft, damp cloth. Avoid using harsh chemicals, abrasive cleaners, or excessive water, which can damage the wood.
- Drying: After each use, ensure the sauna interior is dry to prevent moisture buildup and maintain hygiene.
- Inspection: Regularly inspect all electrical cords, connections, and heater elements for any signs of wear, damage, or loose fittings. Address any issues promptly.
- Wood Care: The Canadian Hemlock wood is naturally resistant to decay. No special treatments are typically required, but avoid exposing the wood to direct sunlight or extreme humidity changes.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Sauna does not power on. | Power cord unplugged, circuit breaker tripped, or faulty outlet. | Verify the power cord is securely plugged into a dedicated 15 amp 110 volt outlet. Check and reset the circuit breaker if necessary. Test the outlet with another appliance. |
| Sauna heats slowly or not at all. | Incorrect temperature setting, door not fully closed, or heater malfunction. | Ensure the temperature setting is correctly adjusted on the control panel. Confirm the sauna door is securely closed. If issues persist, contact customer support. |
| Audio system not working. | Audio device not connected properly, or volume too low. | Ensure your audio device is correctly connected to the MP3 auxiliary port. Check the volume settings on both your device and the sauna's control panel. |
| Component damage (e.g., motherboard). | Damage during shipment or manufacturing defect. | Contact DYNAMIC SAUNAS customer service immediately for assistance and replacement parts under warranty. |
Specifications
- Model Number: DYN-9101-ORGINAL
- Capacity: 1-2 Person
- Heaters: 4 Dynamic Bio-Ceramic heaters
- Material: Reforested Canadian Hemlock wood, ceramic
- Electrical Service: 110V/15amp (standard plug & play)
- Item Dimensions (LxWxH): 39 x 36 x 72.5 inches (99.06 x 91.44 x 184.15 cm)
- Item Weight: 250 Pounds (113.4 kg)
- Package Dimensions (LxWxH): 72 x 44 x 18 inches (182.88 x 111.76 x 45.72 cm)
- Package Weight: 122.47 Kilograms (approx. 270 lbs)
- Country of Origin: China
Warranty and Support
The Dynamic Alicante Far Infrared Sauna (Model DYN-9101-ORGINAL) is covered by a 1-year warranty on parts and a 90-day warranty on labor from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use.
For technical support, warranty claims, or assistance with replacement parts, please contact DYNAMIC SAUNAS customer service. Please have your model number (DYN-9101-ORGINAL) and proof of purchase available when contacting support.
Contact information for DYNAMIC SAUNAS can typically be found on their official website or through your retailer.
