Legrand 036264 MARINA Enclosure User Manual

1. Introduction

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Legrand 036264 MARINA Enclosure. Please read these instructions carefully before proceeding with any installation or maintenance work. Keep this manual in a safe place for future reference.

1.1 Safety Information

• Always disconnect power before working inside the enclosure.
• Installation and maintenance should only be performed by qualified personnel.
• Ensure proper grounding of all electrical components within the enclosure.
• Wear appropriate personal protective equipment (PPE) during installation and handling.
• The enclosure is heavy (approximately 31 kg). Use appropriate lifting techniques and equipment to prevent injury.

2. Product Description

The Legrand 036264 MARINA Enclosure is a robust polyester cabinet designed for industrial and marine applications, offering excellent protection for electrical and electronic components. Its construction ensures durability and resistance to harsh environments.

• Material: High-quality polyester, suitable for marine environments.
• Protection Rating: IP66 (dust-tight and protected against powerful water jets) and IK10 (high impact resistance).
• Color: RAL 7035 (light grey).
• External Dimensions: 1220mm (Height) x 810mm (Width) x 300mm (Depth).
• Internal Equivalent Dimensions: 1200mm (Height) x 800mm (Width) x 300mm (Depth), providing ample space for component installation.

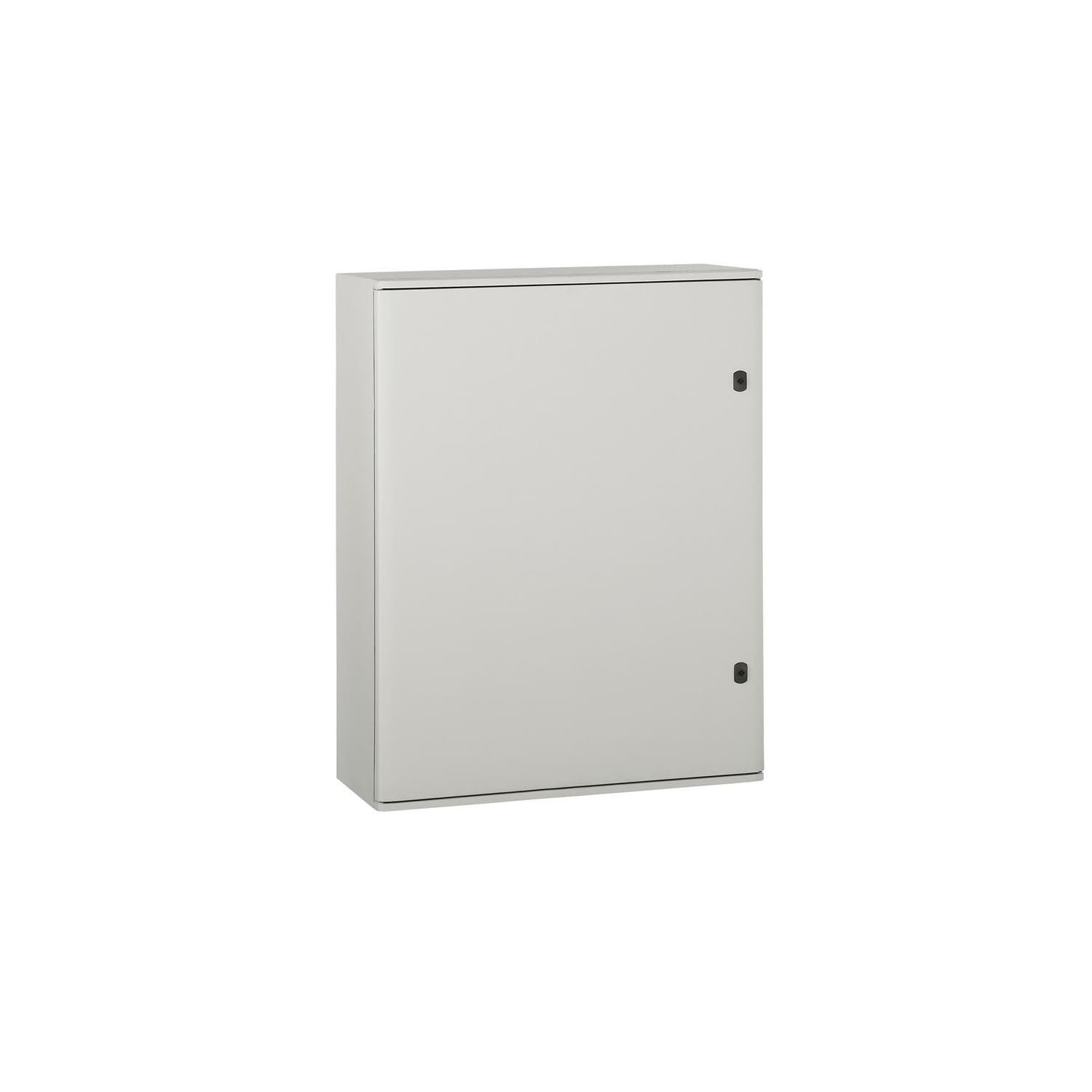

Figure 1: Front view of the Legrand 036264 MARINA Enclosure. This image shows the robust design and the door mechanism of the enclosure, highlighting its industrial application.

3. Setup and Installation

Proper installation is crucial for ensuring the enclosure's protective capabilities and longevity.

3.1 Mounting the Enclosure

1. Location Selection: Choose a stable, flat, and accessible surface capable of supporting the enclosure's weight (31 kg) plus the weight of internal components. Consider environmental factors such as temperature, humidity, and potential mechanical stress.
2. Drilling: Mark the mounting points on the wall or support structure using the enclosure's mounting brackets as a template. Drill holes of appropriate size for your chosen fasteners.
3. Securing: Mount the enclosure securely using suitable bolts, screws, or anchors. Ensure all mounting points are tightened evenly to prevent distortion of the enclosure body.
4. Leveling: Verify that the enclosure is level and plumb after mounting.

3.2 Cable Entry

• Use appropriate cable glands (not supplied) that match the enclosure's IP66 rating to maintain environmental protection.
• Drill holes for cable glands carefully, ensuring no damage to the enclosure structure or internal components. Remove any burrs.
• Install cable glands and ensure they are properly tightened to create a watertight and dust-tight seal around the cables.

4. Usage Guidelines

Once installed, the enclosure is ready for the integration of electrical and electronic equipment.

4.1 Internal Component Installation

• The enclosure is designed to accommodate various internal mounting plates, DIN rails, and other accessories (sold separately).
• Secure all internal components firmly to prevent movement or vibration damage.
• Ensure adequate spacing for ventilation and heat dissipation for all installed equipment.

4.2 Door Operation

• The door is equipped with a locking mechanism to secure the contents.
• Always ensure the door is fully closed and the locking mechanism engaged to maintain the IP66 protection rating.
• Avoid excessive force when opening or closing the door to prevent damage to hinges or seals.

5. Maintenance

Regular maintenance helps preserve the enclosure's protective qualities and extends its service life.

• Cleaning: Clean the exterior of the enclosure periodically with a mild detergent and water. Avoid abrasive cleaners or solvents that could damage the polyester material or seals.
• Seal Inspection: Regularly inspect the door gasket and cable gland seals for signs of wear, cracking, or damage. Replace damaged seals immediately to maintain the IP66 rating.
• Hinge and Lock Check: Lubricate hinges and locking mechanisms as needed with a suitable non-corrosive lubricant. Ensure they operate smoothly and securely.
• Fastener Tightness: Periodically check all mounting fasteners and internal component fasteners for tightness.

6. Inspection and Common Issues

Regular inspection can help identify potential issues before they become critical.

• Water Ingress: If moisture is found inside the enclosure, immediately identify the source. Common causes include damaged seals, improperly installed cable glands, or cracks in the enclosure body. Rectify the issue promptly to prevent damage to internal components.
• Physical Damage: Inspect the enclosure for any signs of impact damage, cracks, or deformation. Significant damage may compromise the IP66/IK10 rating and require replacement.
• Corrosion: While the polyester body is highly resistant, inspect any metal components (e.g., hinges, locks, internal mounting hardware) for signs of corrosion, especially in marine or humid environments.

7. Specifications

8. Warranty and Support

Legrand products are manufactured to high-quality standards and are covered by a manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Legrand website.

8.1 Technical Support

For technical assistance, troubleshooting, or inquiries regarding your Legrand 036264 MARINA Enclosure, please contact Legrand customer support or your authorized distributor. Ensure you have your product model number (036264) available when contacting support.

Please note: Contact information for Legrand can typically be found on their official website or on your purchase invoice.
