HON Brigade 600 Series 4-Drawer Lateral File Cabinet User Manual

1. Introduction

This manual provides essential information for the safe and efficient use of your HON Brigade 600 Series 4-Drawer Lateral File Cabinet. Please read these instructions thoroughly before installation and operation to ensure proper function and longevity of your product.

Product Overview

The HON Brigade 600 Series lateral file cabinet is designed for organizing and securing documents in office environments. It features four spacious drawers capable of holding both letter and legal-size documents. The cabinet incorporates a mechanical interlock system for safety and a removable core lock for document security.

Figure 1: Front view of the HON Brigade 600 Series 4-Drawer Lateral File Cabinet. The cabinet is black with four drawers, each featuring a silver handle and a central lock on the top drawer.

Key Features:

• Four-drawer design for ample storage.
• Accommodates letter and legal-size documents.
• Durable metal construction with a black finish.
• Mechanical interlock system prevents multiple drawers from opening simultaneously.
• Removable core lock system for enhanced security.
• All-welded case construction for strength.

2. Safety Information

WARNING: Failure to follow these safety instructions may result in injury or damage to the product.

• Prevent Tipping: To prevent the cabinet from tipping, ensure it is placed on a level surface. Utilize the adjustable leveling glides to stabilize the unit.
• Drawer Operation: Do not open more than one drawer at a time. Opening multiple drawers simultaneously can shift the center of gravity and cause the cabinet to tip over.
• Weight Distribution: Distribute contents evenly among the drawers. Avoid placing excessively heavy items in the top drawers.
• Manufacturer Instructions: Always follow the manufacturer's instructions for safe use and installation.
• Children and Pets: Keep children and pets away from open drawers.

3. Setup and Installation

The HON Brigade 600 Series Lateral File Cabinet is designed for freestanding installation and typically requires no assembly. However, proper placement and leveling are crucial for safe operation.

Unpacking:

1. Carefully remove the cabinet from its packaging.
2. Inspect the cabinet for any shipping damage. If damage is found, contact your supplier immediately.
3. Remove all packing materials and ensure no small parts are left inside the drawers.

Placement and Leveling:

1. Position the cabinet on a firm, level surface.
2. Locate the adjustable leveling glides at the bottom corners of the cabinet.
3. Rotate the glides clockwise or counter-clockwise to raise or lower each corner until the cabinet is stable and level. Use a spirit level to verify.

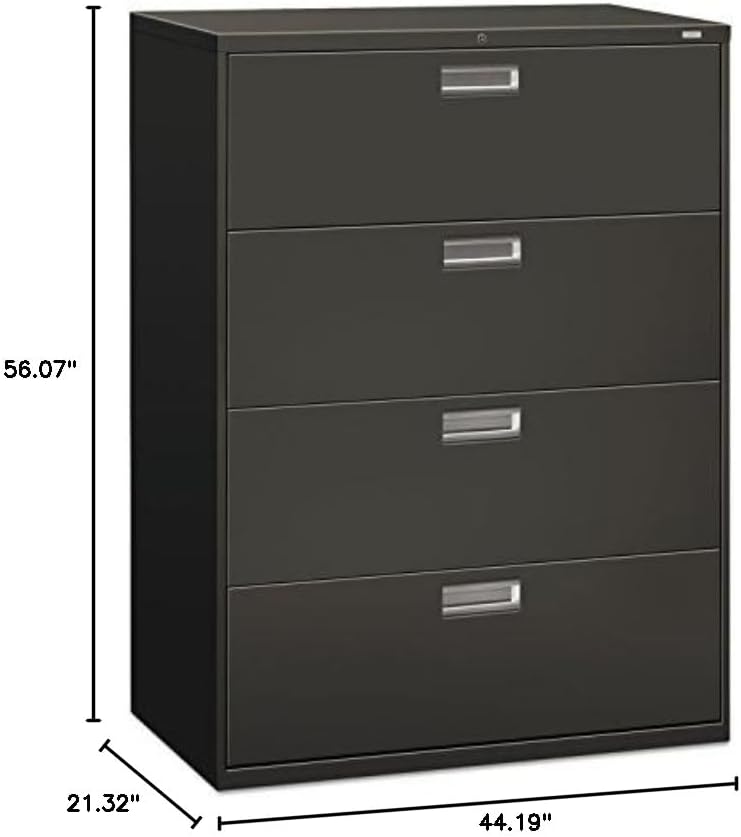

Figure 2: Dimensions of the HON Brigade 600 Series 4-Drawer Lateral File Cabinet. The image shows a height of 56.07 inches, a width of 44.19 inches, and a depth of 21.32 inches. Please note that product specifications may vary slightly.

4. Operating Instructions

Drawer Operation:

• To open a drawer, pull the handle firmly.
• To close a drawer, push it until it latches securely.
• Mechanical Interlock: The cabinet is equipped with a mechanical interlock system. This safety feature prevents more than one drawer from being opened at a time. If a drawer is open, other drawers will be locked and cannot be opened until the first drawer is fully closed. Do not force drawers open.
• File Capacity: The drawers are designed to hold both letter and legal-size documents. Use appropriate hanging file folders for organized storage.

Locking Mechanism:

The top drawer of the cabinet features a removable core lock system to secure all drawers simultaneously.

1. To Lock: Ensure all drawers are fully closed. Insert the key into the lock on the top drawer and turn it clockwise until it stops. Remove the key. All drawers are now locked.
2. To Unlock: Insert the key into the lock and turn it counter-clockwise until it stops. Remove the key. All drawers are now unlocked.
3. Removable Core: The lock core can be replaced by a qualified technician if re-keying is required. Do not attempt to remove the core yourself unless you are trained to do so.

5. Maintenance

Regular maintenance will help preserve the appearance and functionality of your file cabinet.

• Cleaning: Wipe the exterior surfaces with a soft, damp cloth. For stubborn marks, use a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads, which can damage the finish.
• Drawer Slides: Periodically check the drawer slides for smooth operation. If a drawer becomes stiff, a small amount of silicone-based lubricant can be applied to the slides. Do not use oil-based lubricants, as they can attract dust.
• Lock Mechanism: Keep the lock mechanism free of dust and debris. If the lock becomes difficult to operate, a small amount of graphite lubricant can be applied to the keyhole.
• Leveling Glides: Re-check the leveling glides periodically to ensure the cabinet remains stable.

6. Troubleshooting

This section addresses common issues you might encounter with your file cabinet.

• Drawer will not open:
  • Ensure the cabinet is unlocked.
  • Check if another drawer is open. Due to the mechanical interlock, only one drawer can be open at a time. Fully close any open drawers.
  • Verify that the drawer is not overloaded or obstructed.
• Cabinet feels unstable or wobbly:
  • Adjust the leveling glides at the bottom of the cabinet to ensure it is stable on the floor.
  • Ensure the cabinet is on a flat, level surface.
• Lock is difficult to operate:
  • Ensure the key is fully inserted and turned correctly.
  • Apply a small amount of graphite lubricant to the keyhole if it feels stiff.

7. Specifications

8. Warranty and Support

For specific warranty information regarding your HON Brigade 600 Series Lateral File Cabinet, please refer to the documentation provided at the time of purchase or visit the official HON website. HON products typically come with a manufacturer's warranty covering defects in materials and workmanship.

Customer Support:

If you require assistance with setup, operation, maintenance, or troubleshooting that is not covered in this manual, please contact HON customer support:

• Online: Visit the official HON Store on Amazon or the main HON website.
• Phone: Refer to the contact information provided with your product or on the HON website.

When contacting support, please have your product model number (HON694LP) and purchase date available.
