Ubbink Elimax Pond Fountain Pump User Manual

Introduction

The Ubbink Elimax series pond fountain pumps are engineered for optimal performance in creating beautiful water features, including fountains, water games, and jets. Designed with Ubbink's advanced technology, these pumps are suitable for various pond sizes, offering flow rates from 700 to 8,800 liters per hour and a maximum delivery height of up to 5.20 meters.

This manual provides essential information for the proper setup, operation, and maintenance of your Elimax 4000 pump to ensure its longevity and efficient performance.

Setup and Installation

The Elimax 4000 pump is versatile and can be installed either submerged within the pond or dry, outside the pond. Proper installation is crucial for optimal performance and safety.

Package Contents

Your Elimax 4000 pump comes with several accessories to enhance its functionality:

• Multiple fountain jets (e.g., water bell, volcano, foaming jet)
• Hose connections for filters and gargoyles
• Adjustable feet for stable placement
• Orientable water jet for precise direction

Placement Options

Submerged Installation:

1. Place the pump on a stable, level surface at the bottom of your pond.
2. Use the adjustable feet to ensure the pump is level and secure.
3. Connect the desired fountain jet or hose connection for filters/gargoyles.
4. Ensure the pump is fully submerged before connecting to power.

Dry Installation (Outside the Pond):

1. Position the pump on a stable, dry surface near the pond.
2. Ensure the pump is protected from direct weather exposure.
3. Connect appropriate inlet and outlet hoses to the pump.
4. Verify all connections are secure and watertight before operation.

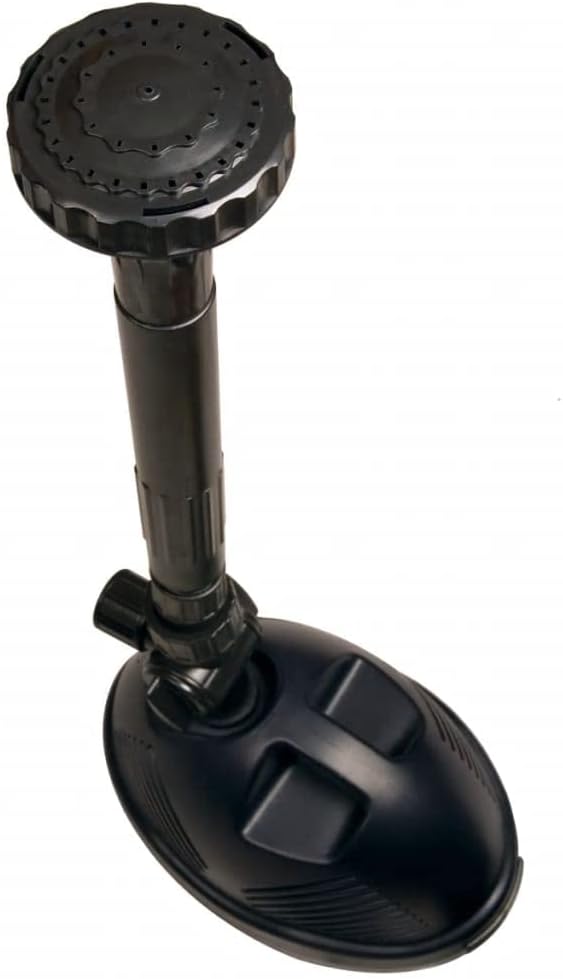

Figure 1: The Ubbink Elimax 4000 pond fountain pump, showing its compact design and adjustable components. This image illustrates the main unit with its base and the vertical pipe for fountain attachments.

Figure 2: A closer view of the Ubbink Elimax 4000 pump, highlighting the fountain head attachment and the adjustable connection point. This image provides a detailed look at the nozzle and its connection to the pump's riser.

Operating Instructions

The Elimax 4000 pump is designed for ease of use, offering adjustable features to customize your water display.

Powering On and Off

Connect the pump's electrical cable to a suitable power outlet. The pump will begin operating immediately. To turn off, disconnect from the power outlet.

Adjusting Flow Rate

The Elimax 4000 features an individually adjustable flow rate. Locate the flow control knob or lever on the pump (refer to product diagram if available) and turn it to increase or decrease the water flow as desired. This allows you to control the height and intensity of your fountain or water feature.

Utilizing Multiple Functions

Your Elimax pump can serve multiple purposes simultaneously:

• Fountain: Attach one of the provided fountain jets (water bell, volcano, or foaming jet) to create a decorative water display.
• Gargoyle: Use the appropriate hose connection to supply water to a gargoyle or other decorative water spout.
• Filter: Connect the pump to a pond filter system to aid in water circulation and filtration.

You can often run a fountain and supply a gargoyle or small filter with the same pump, depending on your specific setup and the pump's capacity.

Figure 3: A comprehensive diagram illustrating various Ubbink pond pump systems, including different Elimax models and their applications for small, medium, and large ponds. This visual guide helps in understanding pump selection based on pond size and desired water features like fountains, waterfalls, and filtration systems.

Maintenance

Regular maintenance ensures the longevity and efficient operation of your Ubbink Elimax pump.

• Cleaning: Periodically clean the pump's intake screen and impeller to prevent blockages from debris, algae, or sediment. Disconnect power before cleaning.
• Winterization: In freezing climates, remove the pump from the pond before the first frost. Clean it thoroughly and store it in a frost-free location, submerged in water if possible, to keep seals moist.
• Inspection: Regularly inspect the power cable for any signs of damage. Do not use the pump if the cable is damaged.

Troubleshooting

If your Elimax pump is not functioning as expected, consider the following common issues and solutions:

If problems persist, please contact Ubbink customer support.

Specifications

Warranty and Support

The Ubbink Elimax 4000 pump comes with a 5-year warranty, ensuring peace of mind regarding its quality and durability.

For technical support, spare parts availability, or warranty claims, please contact your authorized Ubbink dealer or visit the official Ubbink website. Please have your model number (Elimax 4000) and reference number (401402) ready when contacting support.
