Schecter Stiletto Extreme 4 Bass Guitar Instruction Manual

1. Introduction and Overview

The Schecter Stiletto Extreme 4 is a 4-string electric bass guitar designed for both aspiring and experienced musicians. It features a mahogany body with a figured maple top, a maple neck, and a rosewood fingerboard. The instrument is equipped with two humbucking pickups and active electronics, offering a versatile tonal range suitable for various musical styles.

Figure 1: Front view of the Schecter Stiletto Extreme 4 Bass Guitar in Black Cherry.

2. Key Features

• Body: Mahogany with Figured Maple Top (Black Cherry finish).
• Neck: Maple, providing stability and bright tone.
• Fretboard: Rosewood, offering a warm and smooth playing surface.
• Pickups: Two Humbucking Pickups for powerful and clear sound.
• Electronics: Active 2-band EQ with master volume and blend control for precise tone shaping.
• Bridge: Adjustable bridge for optimal intonation and string action.
• Scale Length: 34 inches.

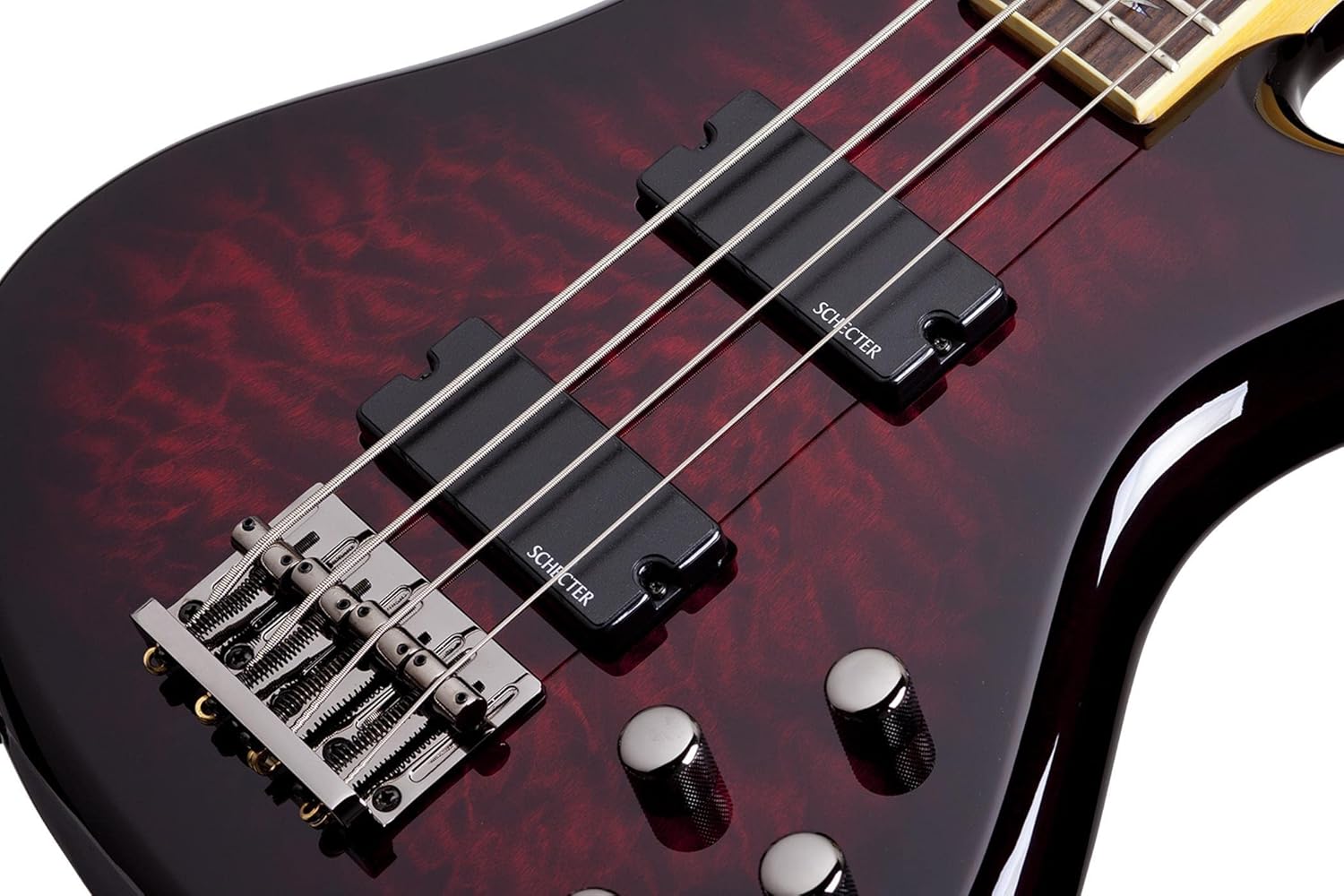

Figure 2: Detail of the humbucking pickups and body contours.

3. Setup

3.1 Initial Inspection

Upon unboxing, carefully inspect the bass for any signs of damage. Ensure all components are securely attached. The instrument is typically shipped with strings loosened to prevent neck tension during transit.

3.2 Stringing and Tuning

Install new strings or tighten existing ones. Tune the bass to standard E-A-D-G tuning using a reliable tuner. For optimal performance, stretch new strings gently to help them settle and hold tune.

3.3 Battery Installation (for Active Electronics)

The Stiletto Extreme 4 features active electronics, requiring a 9V battery for operation. Locate the battery compartment on the back of the bass. Use a small screwdriver to open the compartment, insert a fresh 9V battery, and secure the cover. Ensure correct polarity.

Figure 3: Rear view of the bass, indicating the neck joint and potential battery compartment location (actual compartment may vary slightly).

4. Operation

4.1 Controls Overview

The bass features four control knobs:

• Master Volume: Controls the overall output level of the instrument.
• Blend: Mixes the output of the neck and bridge pickups. Turn towards the neck for more warmth, towards the bridge for more bite.
• 2-Band EQ (Bass/Treble): Active equalization controls to boost or cut bass and treble frequencies, allowing for extensive tonal customization.

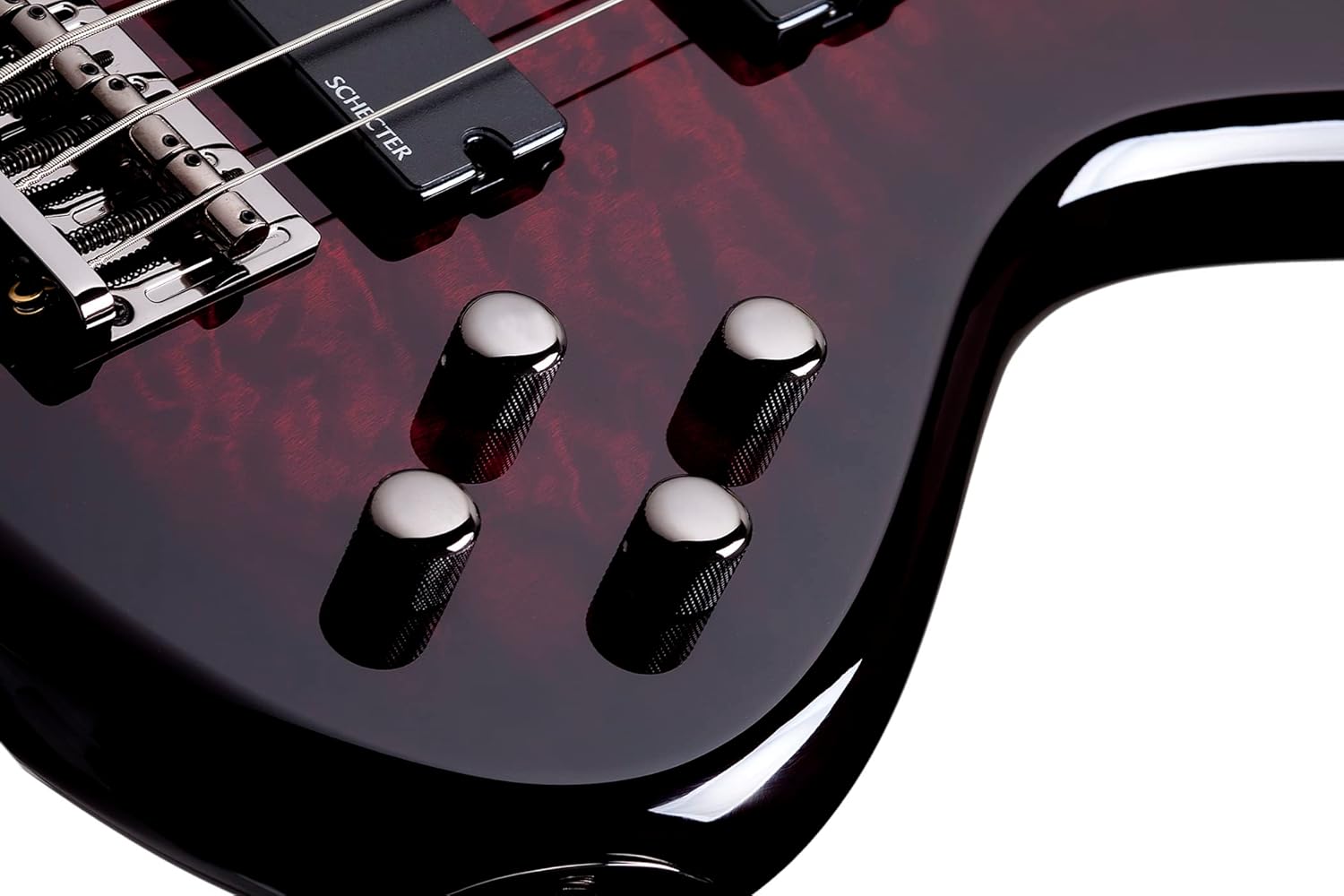

Figure 4: The control layout for volume, blend, and 2-band EQ.

4.2 Playing Techniques

Experiment with different playing techniques such as fingerstyle, picking, and slapping to explore the full sonic capabilities of the Stiletto Extreme 4. The active electronics and humbucking pickups are designed to respond well to various playing styles.

5. Maintenance

5.1 Cleaning

Regularly wipe down the body, neck, and strings with a soft, lint-free cloth after each use. For the glossed maple top, a guitar-specific polish can be used sparingly. Clean the rosewood fretboard with a specialized fretboard conditioner to prevent drying and cracking.

5.2 String Care and Replacement

Replace strings regularly to maintain optimal tone and playability. When replacing, change one string at a time to maintain neck tension. Use light gauge alloy steel strings as recommended for this model.

5.3 Battery Life

To prolong battery life, always unplug the instrument cable from the output jack when not in use. Leaving the cable plugged in will drain the 9V battery, even if the bass is not actively being played.

6. Troubleshooting

• No Sound: Check if the 9V battery is fresh and correctly installed. Ensure the instrument cable is fully plugged into both the bass and the amplifier. Verify amplifier settings and power.
• Buzzing Strings: This can be caused by low string action, uneven frets, or improper neck relief. Adjust the bridge saddles to raise string height or consult a qualified technician for neck adjustments.
• Poor Tuning Stability: Ensure strings are properly stretched and wound around the tuning pegs. Check for worn strings or issues with the tuning machines.
• Weak or Distorted Sound: Replace the 9V battery. Check cable connections. Adjust pickup heights if they are too far or too close to the strings.

7. Specifications

8. Official Product Videos

Below are official product videos from the manufacturer or seller that provide additional information and demonstrations.

9. Warranty and Support

For warranty information and technical support, please refer to the documentation included with your purchase or visit the official Schecter website. Keep your proof of purchase for any warranty claims.
