Sector R3253934045 340 Swiss Made Chronograph Watch User Manual

Introduction

This manual provides detailed instructions for the proper setup, operation, and maintenance of your Sector R3253934045 340 Swiss Made Chronograph Watch. Please read this manual thoroughly to ensure optimal performance and longevity of your timepiece.

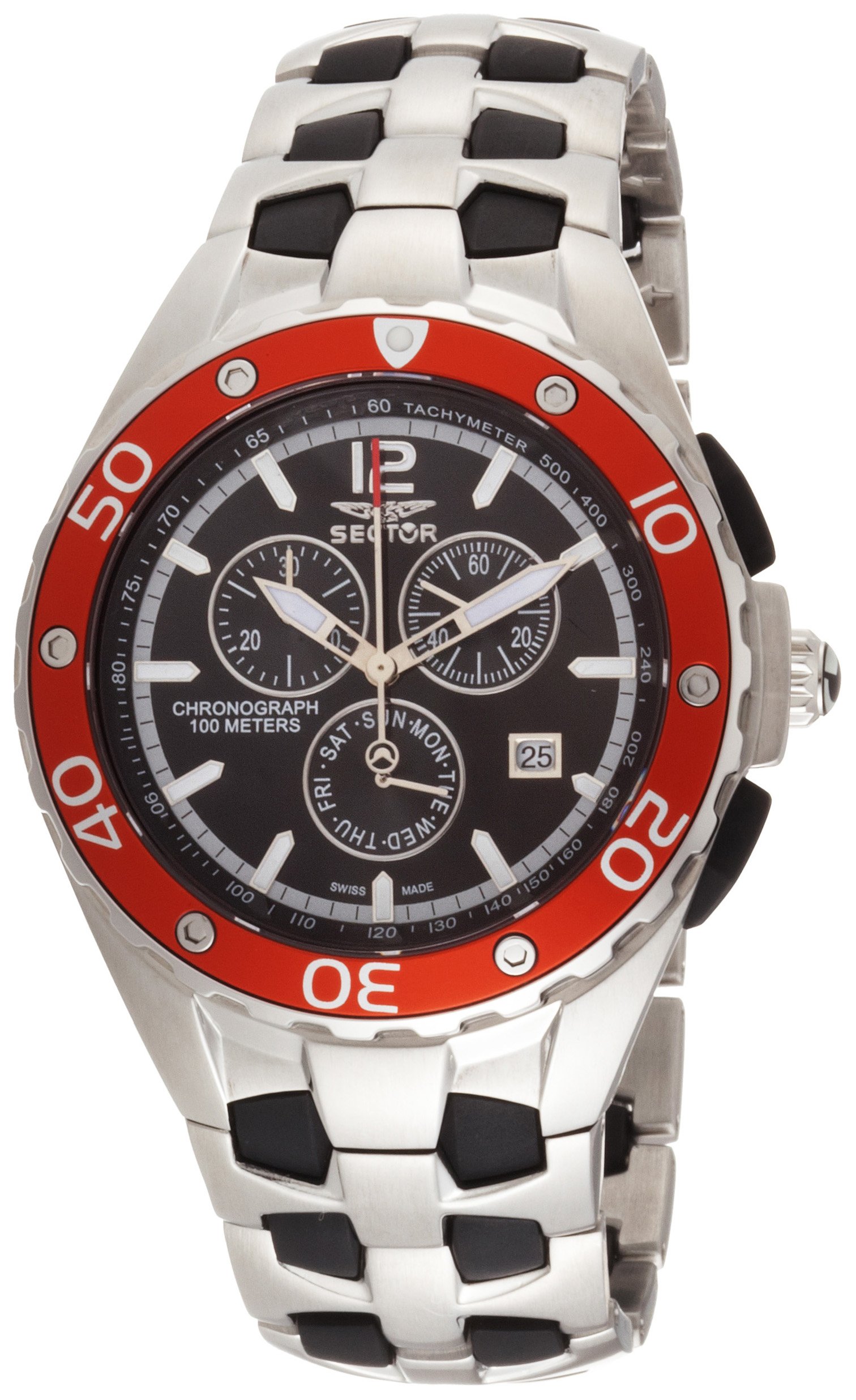

Image: Front view of the Sector R3253934045 Chronograph Watch, showcasing its dial and pushers.

Setup

Setting the Time and Date

1. Unscrew the Crown (if applicable): If your watch features a screw-down crown, gently unscrew it counter-clockwise until it releases.
2. Pull the Crown to Position 2 (Date Setting): Pull the crown out to the first click position. Turn the crown clockwise or counter-clockwise to set the date. Avoid setting the date between 9 PM and 3 AM, as this can damage the movement.
3. Pull the Crown to Position 3 (Time Setting): Pull the crown out to the second click position. The second hand will stop. Turn the crown to set the hour and minute hands. To ensure accurate time setting, synchronize with a reliable time source.
4. Push and Screw Down the Crown: Once the time and date are set, push the crown back into its normal operating position. If it's a screw-down crown, gently push it in and screw it clockwise until it is securely tightened to maintain water resistance.

Adjusting the Bracelet

The stainless steel bracelet can be adjusted by adding or removing links. This procedure typically requires specialized tools and should ideally be performed by a qualified watchmaker or jeweler to prevent damage to the bracelet or clasp mechanism.

Operating Instructions

Basic Timekeeping

Your watch continuously displays the current time (hours, minutes, seconds) and date once properly set. The Swiss Quartz movement ensures precise timekeeping.

Chronograph Function

The chronograph function allows for precise measurement of elapsed time. It typically operates using two pushers located on either side of the crown.

• Start: Press the upper pusher (A) to start the chronograph. The chronograph second hand will begin to move.
• Stop: Press the upper pusher (A) again to stop the chronograph. The elapsed time will be indicated by the chronograph hands.
• Reset: After stopping the chronograph, press the lower pusher (B) to reset all chronograph hands to their zero positions.
• Intermediate Time (Split Time): Some chronographs allow for split time measurement. Consult a detailed movement-specific manual if this feature is desired.

Image: Side view of the Sector R3253934045 Chronograph Watch, highlighting the crown and pushers for chronograph operation.

Water Resistance

Your watch has a water resistance depth of 330 Feet (approximately 100 meters), suitable for swimming and snorkeling. It is not recommended for scuba diving. Ensure the crown is fully pushed in and, if applicable, screwed down tightly before any contact with water. Do not operate the pushers or crown while the watch is wet or submerged, as this can compromise water resistance.

Maintenance

Cleaning

Regularly clean your watch with a soft, damp cloth. For stainless steel components, a mild soap solution can be used, followed by thorough rinsing with clean water and drying. Avoid using harsh chemicals or abrasive materials, which can damage the watch's finish or seals.

Battery Replacement

As a quartz watch, your timepiece is powered by a battery. The typical battery life varies but is generally several years. When the battery needs replacement, it is highly recommended to have this service performed by an authorized Sector service center or a professional watchmaker. This ensures proper battery installation, resealing for water resistance, and inspection of the movement.

Storage

When not wearing your watch, store it in a cool, dry place away from direct sunlight, extreme temperatures, and strong magnetic fields. Keeping it in its original box or a watch case can protect it from dust and scratches.

Troubleshooting

• Watch Not Running:
  • Check if the crown is fully pushed in.
  • The battery may need replacement. Refer to the "Battery Replacement" section.
• Time Inaccurate:
  • Ensure the crown is fully pushed in after setting the time.
  • Exposure to strong magnetic fields can affect quartz accuracy. Keep the watch away from magnets.
  • A low battery can also affect accuracy.
• Chronograph Hands Not Resetting to Zero:
  • This may require a chronograph reset procedure. Consult a professional watchmaker or an authorized service center.
• Condensation Under Crystal:
  • This indicates a loss of water resistance. Immediately take the watch to a professional watchmaker for inspection and repair to prevent further damage to the movement.

Specifications

Warranty and Support

For warranty information and support, please contact the seller of record. Keep your purchase receipt as proof of purchase. Any repairs or servicing should be performed by authorized service centers to maintain warranty validity and ensure proper functioning of your watch.
