1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your Hailo 3666111 TA Swing 30.2/31 waste collector. Please read these instructions carefully before proceeding to ensure proper use and longevity of the product.
The Hailo TA Swing 30.2/31 is a floor-mounted waste separation system designed for integration into kitchen cabinets with hinged doors. It features two waste collectors with a combined capacity of 31 liters (24 L + 7 L) and operates with full extension ball-bearing telescopic slides for smooth access.
Image 1.1: The Hailo TA Swing 30.2/31 waste collector, showing its two compartments and full extension mechanism.
2. Safety Information
- Ensure all components are securely fastened during installation to prevent injury or damage.
- Do not overload the waste bins beyond their stated capacity.
- Keep small children away from the unit during installation and operation to avoid pinching hazards.
- Use appropriate personal protective equipment (e.g., gloves, safety glasses) during installation.
- Dispose of waste materials responsibly according to local regulations.
3. Package Contents
Verify that all items are present before beginning installation:
- Main frame with telescopic slides
- One 24-liter waste bin
- One 7-liter waste bin
- Mounting hardware (screws)
- Installation instructions (this manual)

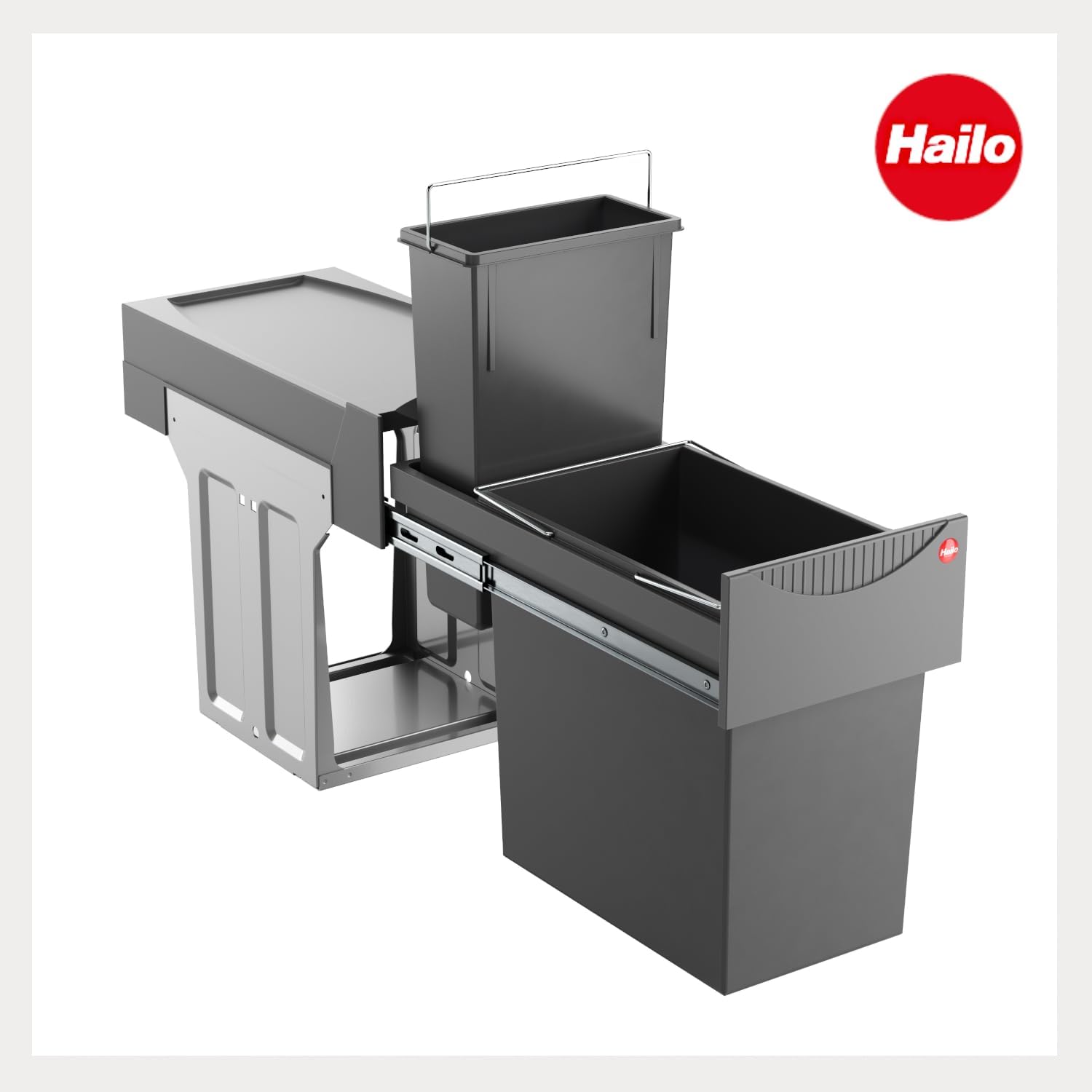

Image 3.1: The waste collector with one bin removed, illustrating the individual components.
4. Product Dimensions and Cabinet Requirements
The Hailo TA Swing 30.2/31 is designed for installation in hinged door cabinets. Ensure your cabinet meets the following minimum requirements:
- Minimum Cabinet Width (external): 30 cm
- Minimum Cabinet Depth (internal): 482 mm
- Minimum Cabinet Height (internal): 400 mm
Product Dimensions (W x D x H): 251 mm x 482 mm x 400 mm
Image 4.1: Front view illustrating the 251 mm width of the unit.
Image 4.2: Side view illustrating the 482 mm depth and 400 mm height of the unit.
5. Installation Instructions
The Hailo TA Swing 30.2/31 is designed for easy floor mounting without the need for countertop removal. Follow these steps for installation:
- Prepare the Cabinet: Ensure the cabinet interior is clean and clear. The unit requires a minimum clearance of 125mm from the cabinet side walls for proper operation.
- Position the Frame: Place the main frame of the waste collector inside the cabinet on the floor. Position it so that the pull-out mechanism aligns correctly with the cabinet opening.
- Mark Drilling Points: Use the pre-drilled holes on the base of the frame as a template to mark the drilling points on the cabinet floor.
- Secure the Frame: Drill pilot holes if necessary, then securely fasten the frame to the cabinet floor using the provided 4.0 x 15 mm screws (4x).
- Insert Waste Bins: Once the frame is securely mounted, insert the 24-liter and 7-liter waste bins into their respective compartments.
- Test Operation: Gently pull the unit out and push it back in to ensure smooth operation of the telescopic slides.
Image 5.1: Visual guide for the installation process, including clearance and fastening details.
Image 5.2: The waste collector shown installed and fully extended from a cabinet.
6. Operating Instructions
To use your Hailo TA Swing 30.2/31 waste collector:
- Opening: Open your cabinet's hinged door. Grasp the front panel of the waste collector and pull it outwards. The unit will extend smoothly on its telescopic slides.
- Waste Separation: Utilize the two distinct bins for separating different types of waste (e.g., general waste in the 24 L bin, recycling in the 7 L bin).
- Closing: Push the waste collector back into the cabinet until it is fully retracted. Close the cabinet door.
- Removing Bins: The individual bins can be easily lifted out by their handles for emptying and cleaning.

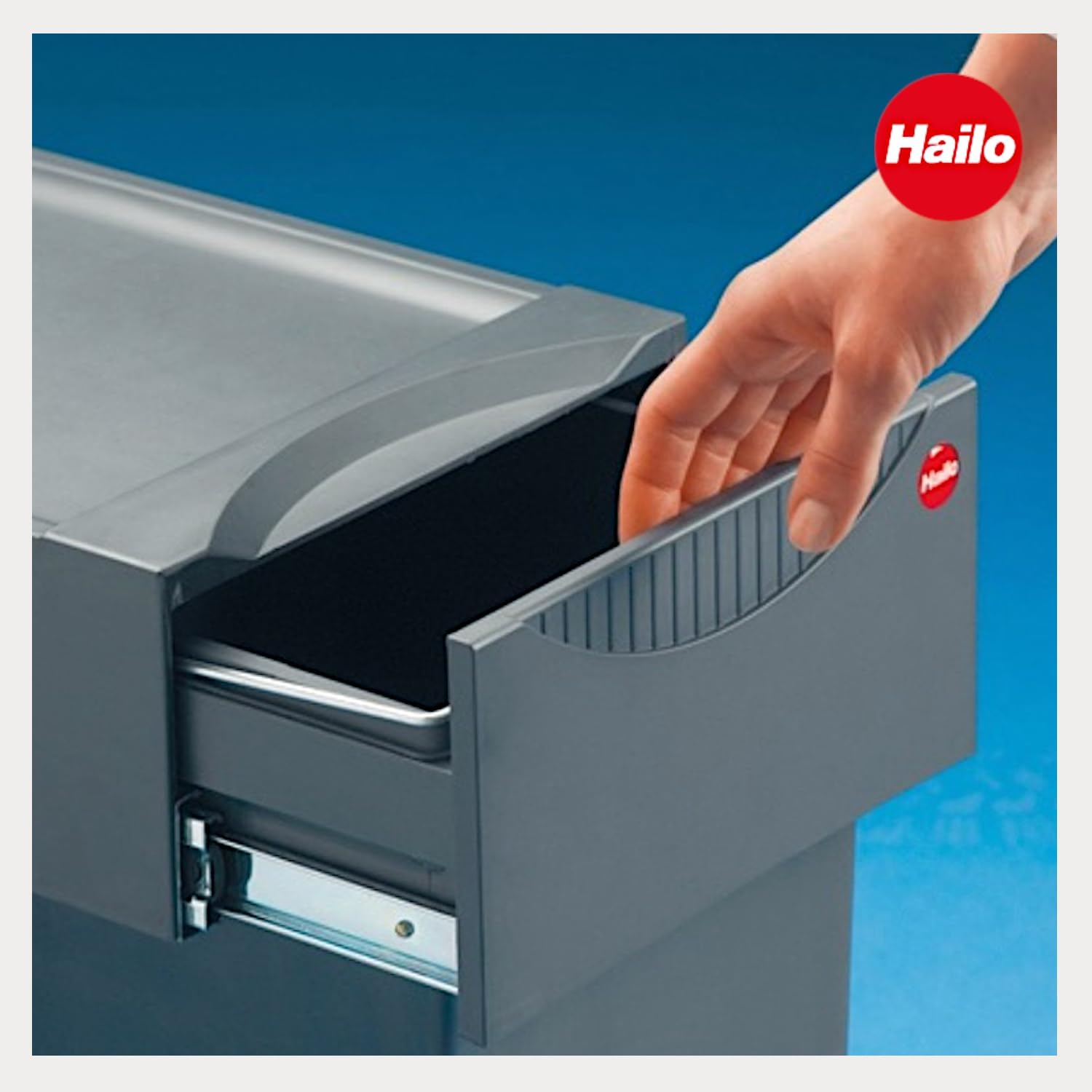

Image 6.1: Demonstrating the pull-out operation of the waste collector.
Image 6.2: The top surface of the unit can be used for storing small cleaning items.
7. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and hygienic operation of your waste collector.
- Bins: The plastic waste bins can be easily removed and washed with warm soapy water. Rinse thoroughly and allow to dry completely before returning them to the unit.
- Frame and Slides: Wipe down the metal frame and telescopic slides with a damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish or lubrication of the slides.
- Spills: Clean up any spills immediately to prevent odors and staining.
- Lubrication: The ball-bearing slides are designed for smooth operation. If movement becomes stiff, a small amount of silicone-based lubricant can be applied to the slides.
8. Troubleshooting
If you encounter issues with your Hailo waste collector, consider the following:
- Unit not sliding smoothly: Check for obstructions on the slides or under the unit. Ensure the slides are clean and free of debris. Apply lubricant if necessary.
- Unit not closing completely: Verify that the bins are correctly seated in the frame and that no waste is protruding. Check for any objects blocking the retraction path.
- Unpleasant odors: Empty and thoroughly clean the waste bins. Consider using bin liners and cleaning the cabinet interior.
- Loose mounting: If the unit feels wobbly, check the mounting screws on the cabinet floor and tighten them if loose.
9. Specifications
| Feature | Detail |
|---|---|
| Brand | Hailo |
| Model Number | 3666111 |
| Color | Grey |
| Product Dimensions (W x D x H) | 251 mm x 482 mm x 400 mm |
| Capacity | 31 Liters (24 L + 7 L) |
| Material | Plastic, Alloy Steel |
| Item Weight | 7 Kilograms |
| Opening Mechanism | Tilting top, Extractable (Full extension telescopic slides) |
| Recommended Use | Designed for hinged door cabinets with a minimum width of 30 cm |
| Special Feature | Removable buckets |
| Shape | Rectangular |
| Finish Type | Matte |
Image 9.1: Detailed technical data and dimensions.
10. Warranty and Support
Specific warranty information for the Hailo 3666111 TA Swing 30.2/31 waste collector is not provided in this document. Please refer to the product packaging or the official Hailo website for detailed warranty terms and conditions.
For technical support, spare parts, or further assistance, please contact Hailo customer service through their official channels. Contact information can typically be found on the manufacturer's website or product documentation.
