Coats Corrente Dual Duty XP General Purpose Thread S910-5020 User Manual

Introduction

The Coats Corrente Dual Duty XP General Purpose Thread is engineered for a wide range of sewing projects. This polyester-wrapped core-spun thread offers enhanced seam appearance and reliable performance on various sewing machines. Its smooth and strong construction is designed to minimize sewing difficulties, making it suitable for both vintage and modern sewing equipment.

Setup Instructions

Proper setup of your sewing machine is crucial for optimal thread performance. Always refer to your specific sewing machine's manual for detailed threading instructions. The following general steps apply to most machines:

1. Spool Placement: Place the thread spool onto the spool pin of your sewing machine. Ensure the thread unwinds smoothly and without obstruction from the spool.
2. Threading Path: Carefully follow the designated threading path of your sewing machine. Guide the thread through all tension discs, thread guides, and the take-up lever as indicated by your machine's markings.
3. Needle Threading: Thread the needle from front to back. For best results, use a needle size appropriate for your fabric type and project requirements.
4. Bobbin Winding and Insertion: Wind the bobbin according to your machine's instructions, ensuring the thread is wound evenly and consistently. Insert the wound bobbin into its case or compartment, making sure it is correctly seated and threaded through any bobbin tension springs.

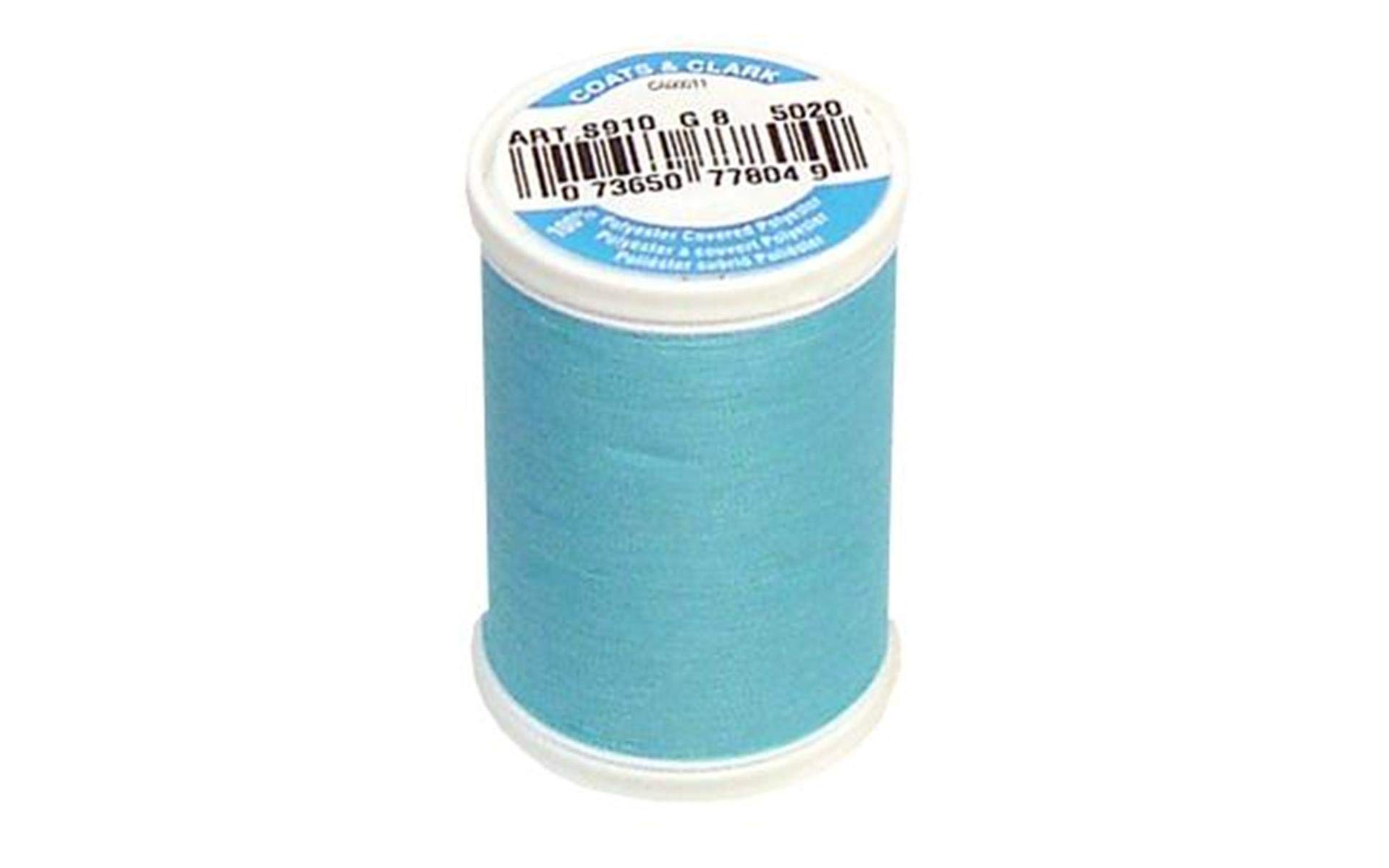

Image: A spool of Coats Corrente Dual Duty XP General Purpose Thread in Aqua Marine. This image illustrates the product as it appears when ready for use on a sewing machine.

Operating Instructions

This thread is suitable for general purpose sewing on most fabrics. Adjust your machine settings for optimal stitch quality and fabric compatibility.

• Tension Adjustment: Begin with your sewing machine's standard tension settings. Adjust the upper and bobbin tension as needed to achieve balanced stitches. A balanced stitch will show equal amounts of upper and bobbin thread on both sides of the fabric, with no loops or puckering.
• Needle Selection: Use a universal needle appropriate for your fabric type and weight. For general purpose sewing, a size 80/12 or 90/14 needle is often suitable. Consider a sharper needle for woven fabrics and a ballpoint needle for knits.
• Stitch Length: Select a stitch length appropriate for your project. Shorter stitches generally provide stronger seams, while longer stitches are suitable for basting or decorative purposes.
• Fabric Compatibility: Dual Duty XP thread performs well on a wide range of natural and synthetic fabrics, including cotton, linen, denim, flannel, and various blends.

Maintenance and Storage

Proper care and storage will preserve the quality and usability of your thread, ensuring its longevity and performance.

• Storage: Store thread spools in a cool, dry place away from direct sunlight, excessive heat, and high humidity. This prevents degradation of the thread fibers and maintains thread strength and color integrity.
• Cleaning: If the thread spool accumulates dust, gently wipe it with a clean, dry, lint-free cloth. The thread itself is designed to be machine washable once sewn into a garment.
• Product Care: Garments sewn with Coats Corrente Dual Duty XP thread can be machine washed according to the care instructions of the fabric used in the garment. The thread is durable enough to withstand regular washing cycles.

Troubleshooting Common Issues

If you encounter issues during sewing, consider the following common problems and their potential solutions:

• Thread Breaking:
  • Incorrect Threading: Ensure the machine is threaded correctly through all guides and tension discs.
  • Needle Issues: Check if the needle is bent, dull, or the wrong size for the fabric. Replace the needle if necessary.
  • Tension Too High: Adjust upper or bobbin tension; excessive tension can cause thread breakage.
  • Lint/Debris: Clean the machine's thread path and bobbin area for any lint or debris that might be snagging the thread.
• Skipped Stitches:
  • Dull/Bent Needle: Replace the needle; a dull or bent needle is a common cause of skipped stitches.
  • Improper Threading: Re-thread the machine completely, ensuring all guides are engaged and the thread is seated correctly.
  • Incorrect Needle Insertion: Verify the needle is inserted correctly and fully into the needle clamp, with the flat side facing the back (or as per your machine's manual).
• Uneven Stitches:
  • Tension Imbalance: Adjust tension settings for both upper and bobbin threads until stitches appear balanced on both sides of the fabric.
  • Uneven Bobbin Winding: Ensure the bobbin is wound evenly and smoothly. Re-wind if necessary.
  • Fabric Feed Issues: Avoid pulling or pushing the fabric excessively while sewing; allow the machine's feed dogs to move the fabric naturally.

Product Specifications

Warranty and Support

Coats Corrente products are manufactured to high-quality standards. For specific warranty information or support inquiries, please refer to the official Coats Corrente website or contact their customer service directly. It is recommended to retain your purchase receipt for any potential claims or inquiries.

For additional resources, sewing tips, and product information regarding Coats Corrente threads, visit the official Coats Corrente website.
