1. Introduction
This manual provides essential information for the installation, maintenance, and general use of the Bosal 190-355 Exhaust System Mounting Parts. These high-quality components are designed for durability and reliable performance in your vehicle's exhaust system.
The Bosal 190-355 is a quality product made from durable material, ensuring a long service life. It is specifically compatible with the Peugeot 206 Hatchback.
2. Components Included
The Bosal 190-355 package includes the following main component:
- Muffler (Endschalldämpfer)
Additional mounting hardware may be required and is typically sold separately or as part of a complete installation kit.
3. Installation (Setup)
Installation of exhaust system components requires mechanical knowledge and appropriate tools. If you are not confident in your ability to perform this installation, it is recommended to seek professional assistance.
3.1 Safety Precautions
- Ensure the vehicle is securely supported on jack stands or a lift. Never work under a vehicle supported only by a jack.
- Allow the exhaust system to cool completely before beginning work to avoid burns.
- Wear appropriate personal protective equipment, including safety glasses and gloves.
- Ensure adequate ventilation if working in an enclosed space.
3.2 General Installation Steps
- Preparation: Park the vehicle on a level surface and engage the parking brake. Lift the vehicle safely.
- Removal of Old Component: Locate the existing muffler. Loosen and remove any clamps, bolts, or hangers securing the old muffler. You may need a penetrating lubricant to free rusted fasteners. Carefully remove the old muffler.
- Inspection: Inspect the surrounding exhaust pipes, hangers, and gaskets for wear or damage. Replace any worn components as necessary.
- Positioning the New Muffler: Carefully position the Bosal 190-355 muffler into place. Ensure proper alignment with the existing exhaust pipes.
- Securing the Muffler: Attach the new muffler using appropriate clamps, bolts, and hangers. Do not fully tighten fasteners until all components are correctly aligned.
- Final Alignment: Once all components are in place, check for proper alignment and clearance from other vehicle parts. Ensure there is no contact that could cause rattling or damage.
- Tightening Fasteners: Systematically tighten all clamps and bolts to the manufacturer's recommended torque specifications.
- Leak Check: Start the engine and check for exhaust leaks. A common method is to block the tailpipe briefly and listen for hissing sounds.
- Lowering the Vehicle: Safely lower the vehicle.
Note: Refer to your vehicle's specific service manual for detailed instructions and torque specifications for exhaust system components.

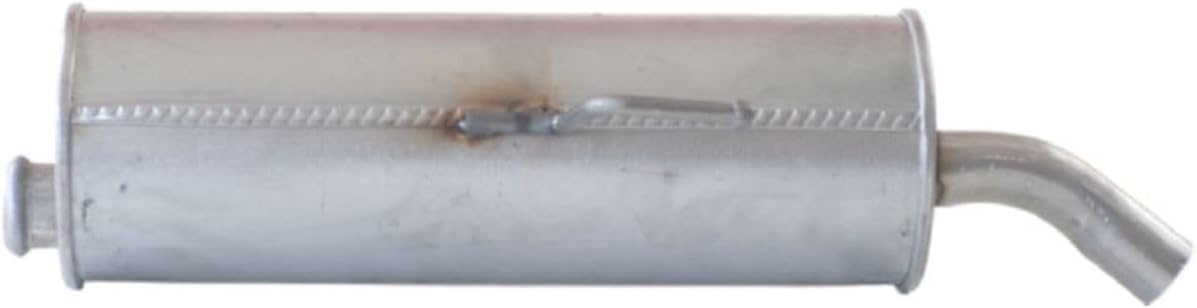

Image 1: Side view of the Bosal 190-355 muffler, showing the main body and connection points. This view helps in identifying the component during installation.
4. Function and Usage
The Bosal 190-355 muffler is a critical component of your vehicle's exhaust system. Its primary functions include:
- Noise Reduction: Dampens engine exhaust noise to meet legal requirements and provide a comfortable driving experience.
- Exhaust Gas Flow: Designed to allow efficient flow of exhaust gases away from the engine.
- Emission Control Support: Works in conjunction with other exhaust components (like catalytic converters) to manage vehicle emissions.
Once correctly installed, the muffler operates continuously as part of the exhaust system. No user interaction is required for its operation.
Image 2: End view of the Bosal 190-355 muffler, highlighting the inlet pipe connection. This perspective is useful for verifying correct pipe diameter and fitment.
5. Maintenance
The Bosal 190-355 muffler is designed for long-term durability with minimal maintenance. However, periodic inspection is recommended to ensure optimal performance and safety.
5.1 Inspection Schedule
- Inspect the exhaust system, including the muffler, at least once a year or during routine vehicle servicing.
- Check for signs of corrosion, cracks, holes, or loose connections.
- Examine hangers and mounting points for wear or damage.
5.2 Cleaning
No special cleaning is required for the muffler itself. Avoid using harsh chemicals that could accelerate corrosion.
5.3 Replacement
Replace the muffler if significant corrosion, holes, or structural damage is observed. A failing muffler can lead to increased noise, reduced engine performance, and potential exhaust gas leaks into the vehicle cabin.
Image 3: Another side view of the Bosal 190-355 muffler, highlighting the integrated mounting brackets. These brackets are crucial for secure attachment to the vehicle's undercarriage.
6. Troubleshooting
If you experience issues with your exhaust system after installing the Bosal 190-355, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Loud exhaust noise | Loose connections, exhaust leak, damaged muffler. | Check all clamps and bolts for tightness. Inspect the muffler and pipes for holes or cracks. Replace damaged components. |
| Rattling or vibrating sound | Exhaust system contacting vehicle chassis, loose hangers, internal muffler baffle failure. | Inspect for contact points and adjust alignment. Check and replace worn or broken hangers. If internal damage, replace muffler. |
| Exhaust smell in cabin | Exhaust leak, especially near the engine or passenger compartment. | Immediately inspect the entire exhaust system for leaks. Repair or replace any leaking components. This is a safety concern. |
If troubleshooting steps do not resolve the issue, consult a qualified mechanic.
Image 4: End view of the Bosal 190-355 muffler, showing the outlet pipe. This view confirms the exhaust gas exit point and helps ensure proper connection to the tailpipe.
7. Specifications
Key specifications for the Bosal 190-355 Mounting Parts:
- Model Number: 190-355
- Brand: Bosal
- Product Type: Mounting Parts (Muffler)
- Vehicle Service Type: Car
- Vehicle Fit Type: Vehicle-specific fit
- Compatible Vehicle: Peugeot 206 Hatchback
- Product Dimensions (L x W x H): 37.6 x 24.5 x 21.2 cm (14.8 x 9.6 x 8.3 inches)
- Product Weight: 4.77 kg (10.5 lbs)
- OEM Part Numbers: Peugeot 1726TP; Peugeot 1726TQ; Peugeot 1726WX; Peugeot 1726X9; Peugeot 1726Y0; Peugeot 1730GN
- Included Components: Muffler (Endschalldämpfer)
8. Warranty Information
The Bosal 190-355 Mounting Parts come with a 2-year legal warranty from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use and service.
Please retain your proof of purchase for any warranty claims. The warranty does not cover damage resulting from improper installation, misuse, accidents, or normal wear and tear.
9. Customer Support
For further assistance, technical support, or warranty inquiries regarding your Bosal 190-355 Mounting Parts, please contact Bosal customer service or your authorized dealer.
Bosal Official Website: www.bosal.com (Please note: This is a generic placeholder. Refer to product packaging or official Bosal documentation for specific contact details.)
