1. Important Safety Instructions
Read and understand all safety instructions before using the KTC WPD1-300 Water Pump Pliers. Failure to follow these instructions may result in injury or damage to the tool or workpiece.
- Wear Eye Protection: Always wear ANSI-approved safety goggles or safety glasses with side shields when using hand tools.
- Inspect Tool Before Use: Before each use, inspect the pliers for any signs of damage, wear, or loose parts. Do not use damaged tools.
- Use the Correct Tool for the Job: These pliers are designed for gripping, holding, and turning objects. Do not use them as a hammer, pry bar, or for cutting wires unless specifically designed for that purpose.
- Maintain a Secure Grip: Ensure a firm and stable grip on both the pliers and the workpiece to prevent slipping.
- Avoid Over-tightening: Do not apply excessive force that could damage the workpiece or the pliers.
- Keep Hands Clear: Always keep hands and fingers away from the jaw area during adjustment and operation.
- Store Properly: Store pliers in a dry, clean place, out of reach of children.
2. Product Overview
The KTC WPD1-300 is a robust water pump pliers designed for versatile gripping tasks. Its adjustable jaw mechanism allows for a wide range of applications, from plumbing to general mechanical work. The ergonomic vinyl handles provide a comfortable and secure grip.

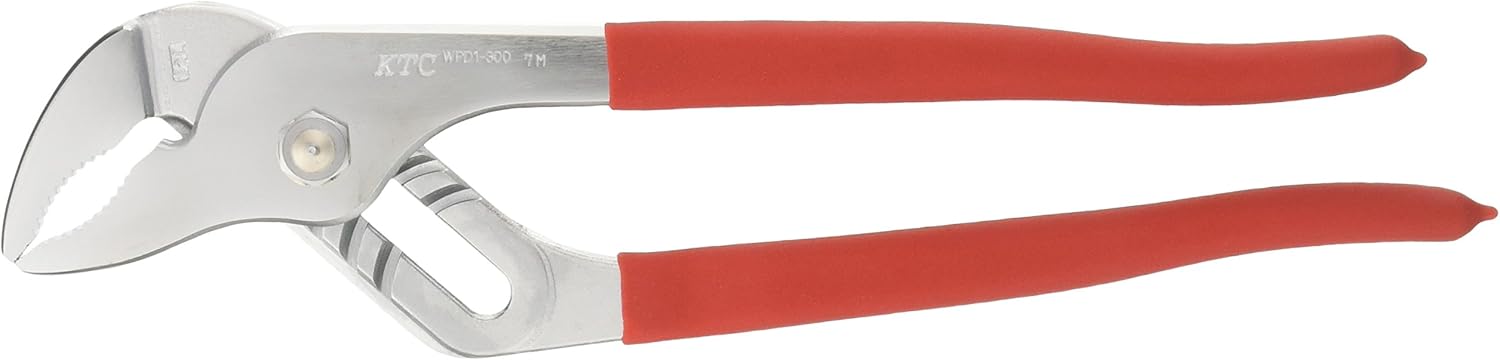

Image 2.1: KTC WPD1-300 Water Pump Pliers. This image displays the full length of the pliers, highlighting the adjustable jaw, pivot point, and red vinyl-coated handles.
Key Features:
- Maximum Opening: 2.0 inches (50 mm) for handling various sizes of pipes and fasteners.
- Total Length: 12.1 inches (307 mm) providing ample leverage.
- Adjustment Levels: 6 distinct adjustment positions for precise jaw sizing.
- Handle Material: Durable vinyl for enhanced grip and comfort.
3. Setup
The KTC WPD1-300 Water Pump Pliers are ready for use out of the package. No assembly is required.
- Unpack: Carefully remove the pliers from their packaging.
- Initial Inspection: Perform a quick visual inspection for any shipping damage or manufacturing defects. Ensure the jaws open and close smoothly and the adjustment mechanism operates freely.
- Clean (Optional): If desired, wipe down the pliers with a clean, dry cloth to remove any manufacturing residues.
4. Operating Instructions
Follow these steps for effective and safe operation of your KTC WPD1-300 Water Pump Pliers.
- Select Jaw Opening:
- Hold the pliers firmly in one hand.
- Locate the pivot point where the two halves of the pliers connect.
- Slide the upper jaw along the pivot mechanism to adjust the opening. The WPD1-300 offers 6 adjustment levels.
- Position the jaws so they are slightly wider than the object you intend to grip.
- Position on Workpiece: Place the jaws around the object, ensuring a secure and even contact on both sides.
- Apply Pressure: Squeeze the handles together to firmly grip the workpiece. The serrated jaws are designed to provide maximum grip.
- Perform Task: Once a secure grip is established, you can turn, hold, or manipulate the object as needed.
- Release: Loosen your grip on the handles to release the workpiece.
Note: Always ensure the jaws are properly seated on the workpiece to prevent slipping, which can cause damage or injury.
5. Maintenance
Proper maintenance will extend the life and performance of your KTC WPD1-300 Water Pump Pliers.
- Cleaning: After each use, wipe down the pliers with a clean, dry cloth to remove dirt, grease, or moisture. For stubborn grime, a mild solvent can be used, followed by thorough drying.
- Lubrication: Periodically apply a small amount of light machine oil to the pivot points and adjustment mechanism to ensure smooth operation and prevent rust. Wipe off any excess oil.
- Storage: Store the pliers in a dry environment to prevent corrosion. Avoid storing them in damp or humid conditions.
- Inspection: Regularly inspect the jaws for wear or damage. If the serrations are significantly worn, the gripping effectiveness may be reduced.
6. Troubleshooting
Here are some common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Jaws slip on workpiece | Incorrect jaw adjustment; worn jaws; greasy workpiece. | Adjust jaws to fit snugly; clean workpiece; replace pliers if jaws are excessively worn. |
| Difficulty adjusting jaws | Dirt or debris in mechanism; lack of lubrication. | Clean the pivot mechanism; apply light machine oil. |
| Rust formation | Exposure to moisture; improper storage. | Clean off rust with a wire brush and oil; store in a dry environment. |
7. Specifications
Technical specifications for the KTC WPD1-300 Water Pump Pliers:
| Feature | Detail |
|---|---|
| Model Number | WPD1300 |
| Part Number | WPD1300 |
| Brand | KTC |
| Total Length | 12.1 inches (307 mm) |
| Maximum Jaw Opening | 2.0 inches (50 mm) |
| Adjustment Levels | 6 |
| Item Weight | 1.52 pounds (690 grams) |
| Package Dimensions | 14.41 x 3.94 x 1.1 inches |
| Color | Red |
| Body Material | High-grade Steel Alloy |
| Handle Material | Vinyl |
Image 7.1: KTC WPD1-300 Water Pump Pliers with dimensions. This image illustrates the total length of the pliers, indicating approximately 13 inches (32 cm).
8. Warranty and Support
KTC products are manufactured to high standards. For specific warranty information, please refer to the documentation included with your purchase or visit the official KTC website. For technical support or service inquiries, please contact KTC customer service through their official channels.
Please retain your proof of purchase for any warranty claims.
