BLACK+DECKER ASI300

BLACK+DECKER ASI300-GB Portable 12V DC Air Compressor Instruction Manual

Introduction

Thank you for choosing the BLACK+DECKER ASI300-GB Portable 12V DC Air Compressor. This device is designed for convenient and efficient inflation of various items, including vehicle tires, bicycle tires, sports balls, and other small to medium-sized inflatables. Please read this manual thoroughly before operating the unit to ensure safe and proper use.

BLACK+DECKER ASI300-GB Portable Air Compressor

Image: The BLACK+DECKER ASI300-GB portable air compressor, a compact orange and black unit with a pressure gauge, ready for use.

Important Safety Instructions

Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury. Keep this manual for future reference.

  • Read all instructions: Familiarize yourself with the operation and limitations of the air compressor.
  • Use in well-ventilated areas: Do not operate in enclosed spaces.
  • Avoid over-inflation: Always check the recommended pressure for the item being inflated. Over-inflation can cause items to burst, leading to injury.
  • Keep away from children: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
  • Disconnect power: Always disconnect the unit from the power source when not in use or before performing any maintenance.
  • Inspect before use: Check the unit for any damage before each use. Do not operate if damaged.
  • Do not modify: Never attempt to modify the air compressor.
  • Avoid extreme temperatures: Do not expose the unit to rain, moisture, or extreme temperatures.

Package Contents

Verify that all items are present upon unpacking:

  • BLACK+DECKER ASI300-GB Air Compressor Unit
  • Inflation Hose with Tire Valve Connector
  • Accessory Nozzles (e.g., sports ball needle, universal adapter)
  • Instruction Manual

Setup

Before first use, ensure the unit is placed on a stable, flat surface.

  1. Connect to Power: Plug the 12V DC power cord into your vehicle's 12V accessory outlet (cigarette lighter socket). Ensure a secure connection.
  2. Attach Hose: Connect the inflation hose to the desired item. For vehicle tires, screw the connector onto the tire valve stem. For sports balls or other inflatables, select the appropriate nozzle and attach it to the hose, then insert it into the item's inflation port.

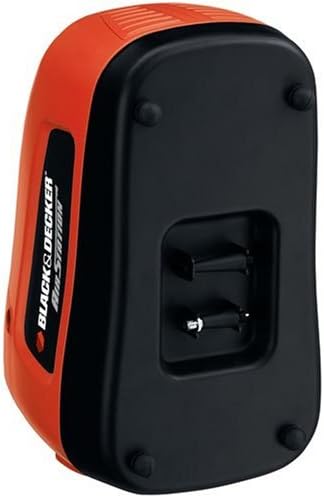

Bottom view of BLACK+DECKER ASI300-GB showing cord storage

Image: The underside of the BLACK+DECKER ASI300-GB, illustrating the integrated cord storage for convenience.

Operating Instructions

General Operation

  1. Ensure the unit is connected to a 12V DC power source and the hose is securely attached to the item to be inflated.
  2. Press the power switch to the 'ON' position. The compressor will begin to operate.
    3. Finger pressing the power button on BLACK+DECKER ASI300-GB

    Image: A finger activating the power switch on the side of the BLACK+DECKER ASI300-GB air compressor.

  3. Monitor the pressure gauge on the unit. Inflate to the recommended pressure for your item.
  4. Once the desired pressure is reached, switch the unit to the 'OFF' position.
  5. Disconnect the hose from the item and then unplug the unit from the power source.

Inflating Vehicle Tires (Car, Bicycle, Lawnmower)

  1. Refer to your vehicle's owner's manual or the tire sidewall for the recommended tire pressure (PSI or Bar).
  2. Remove the valve cap from the tire.
  3. Screw the compressor's hose connector firmly onto the tire valve stem.
  4. Turn on the compressor and inflate to the desired pressure.

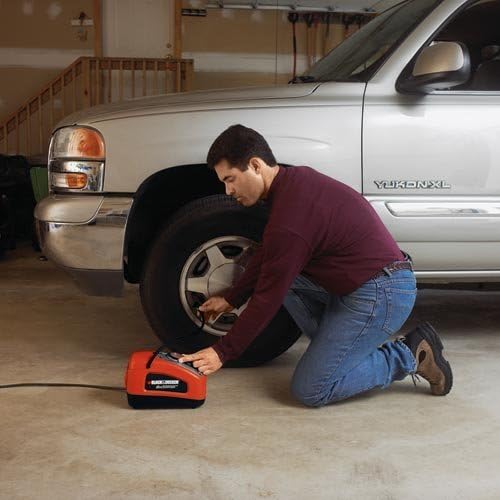

    5. Man inflating a car tire with BLACK+DECKER ASI300-GB

    Image: A person kneeling to inflate a car tire using the BLACK+DECKER ASI300-GB air compressor.

    Person inflating a bicycle tire with BLACK+DECKER ASI300-GB

    Image: A user inflating a bicycle tire with the BLACK+DECKER ASI300-GB, demonstrating its versatility.

    Man inflating a lawnmower tire with BLACK+DECKER ASI300-GB

    Image: A man inflating a lawnmower tire, showcasing the compressor's utility for various small vehicle tires.

  5. Turn off the compressor, unscrew the connector, and replace the valve cap.

Inflating Sports Balls

  1. Select the sports ball needle adapter and attach it to the inflation hose.
  2. Insert the needle into the ball's inflation port.
  3. Turn on the compressor and inflate the ball to its recommended pressure.
    4. Person inflating a basketball with BLACK+DECKER ASI300-GB

    Image: A person inflating a basketball using the BLACK+DECKER ASI300-GB air compressor.

  4. Turn off the compressor and remove the needle from the ball.

Inflating Other Inflatables (e.g., Air Mattresses)

  1. Select the appropriate universal adapter nozzle and attach it to the inflation hose.
  2. Insert the nozzle firmly into the inflatable's valve.
  3. Turn on the compressor and inflate until the item is firm. Avoid over-inflation.
    4. Woman inflating an air mattress with BLACK+DECKER ASI300-GB

    Image: A woman inflating an air mattress with the BLACK+DECKER ASI300-GB, highlighting its use for leisure items.

  4. Turn off the compressor and remove the nozzle.

Maintenance

Regular maintenance ensures optimal performance and extends the life of your air compressor.

  • Cleaning: Wipe the exterior of the unit with a damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the unit is unplugged before cleaning.
  • Storage: Store the air compressor in a dry, cool place, away from direct sunlight and extreme temperatures. Utilize the integrated cord storage to keep the power cord tidy.
    • BLACK+DECKER ASI300-GB stored in a car trunk

    Image: The BLACK+DECKER ASI300-GB air compressor neatly stored in a vehicle's compartment, demonstrating its portability and compact design.

  • Hose and Nozzle Inspection: Periodically check the inflation hose and nozzles for cracks, blockages, or damage. Replace if necessary.

Troubleshooting

Problem Possible Cause Solution
Compressor does not turn on. No power to the unit; loose connection; blown fuse in vehicle's 12V outlet. Ensure 12V DC plug is fully inserted. Check vehicle's fuse box for a blown fuse and replace if necessary.
Compressor runs but does not inflate. Hose not securely attached; leak in hose or nozzle; item valve blocked. Check all connections for tightness. Inspect hose and nozzles for damage. Ensure item valve is clear.
Slow inflation. Partial blockage; low vehicle battery voltage. Check for partial blockages. Ensure vehicle engine is running to provide optimal 12V power.

Specifications

  • Model: ASI300-GB
  • Power Source: 12V DC (Vehicle Accessory Outlet)
  • Voltage: 12 Volts
  • Special Features: Portable
  • Weight: Approximately 246 grams

Warranty and Support

This BLACK+DECKER ASI300-GB Portable 12V DC Air Compressor comes with a two-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, accidents, or unauthorized repairs.

For warranty claims, technical support, or replacement parts, please contact BLACK+DECKER customer service. Keep your proof of purchase for warranty validation.

© 2023 BLACK+DECKER. All rights reserved.
