Progress Lighting P8057-36 4-Inch Recessed Eyeball Pinhole Trim User Manual

Introduction

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Progress Lighting P8057-36 4-Inch Recessed Eyeball Pinhole Trim. Please read this manual thoroughly before beginning installation and retain it for future reference.

The P8057-36 is an eyeball trim designed for use with Progress Lighting 4-inch recessed lighting housings. It features a 360-degree rotation and a 30-degree tilt capability, allowing for adjustable light direction.

Important Safety Instructions

WARNING: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installation or servicing.

• All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC).
• Consult a qualified electrician if you are unsure about the installation process.
• Ensure the trim is compatible with your existing recessed housing. This trim is designed for 4-inch recessed housings.
• Do not exceed the maximum wattage specified for the lamp. This trim is for use with 50-watt 12V MR-16 lamps.
• Handle the trim and lamp with care to avoid damage.

Package Contents

Verify that all components are present before beginning installation:

• 1 x P8057-36 Recessed Eyeball Pinhole Trim (Chestnut finish)
• Installation Guide (this document)

Note: Recessed housing and lamp (50-watt 12V MR-16) are sold separately.

Setup and Installation

This trim is designed for easy installation into compatible 4-inch recessed lighting housings. Ensure power is OFF before proceeding.

1. Prepare the Housing: Ensure the recessed housing is properly installed and wired according to local electrical codes. The housing should be a 4-inch model compatible with 12V MR-16 lamps.
2. Install the Lamp: Carefully insert a 50-watt 12V MR-16 lamp into the lamp holder within the recessed housing. Ensure it is seated securely. (Lamp not included)
3. Insert the Trim: Align the P8057-36 eyeball trim with the opening of the recessed housing. Gently push the trim upwards until the retention clips (if present on your housing) engage and hold the trim firmly in place.
4. Secure the Trim: Ensure the trim is flush with the ceiling surface. Adjust as necessary.
5. Restore Power: Once the trim is securely installed, restore power at the circuit breaker.

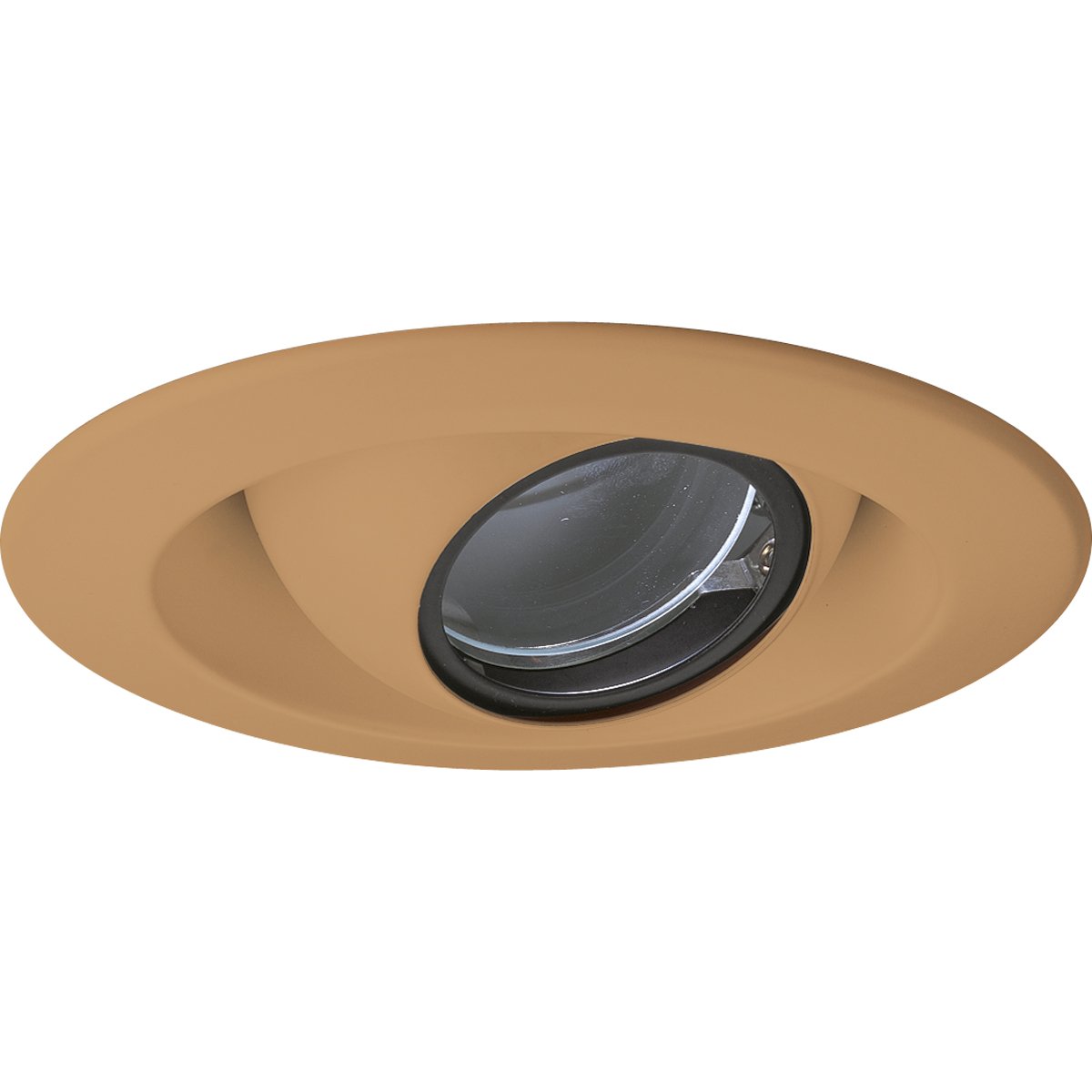

Image: The P8057-36 Recessed Eyeball Pinhole Trim in Chestnut finish. This image shows the front view of the trim, highlighting its adjustable eyeball design.

Operation

The P8057-36 trim allows for directional lighting adjustment.

• Adjusting Light Direction: Gently grasp the outer ring of the eyeball and rotate it 360 degrees to direct light horizontally.
• Tilting the Eyeball: The eyeball can be tilted up to 30 degrees to aim light vertically. Carefully push or pull the eyeball to achieve the desired angle.

Note: Avoid excessive force when adjusting the eyeball to prevent damage to the mechanism.

Maintenance

• Cleaning: Disconnect power before cleaning. Wipe the trim with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
• Lamp Replacement: Disconnect power before replacing the lamp. Allow the lamp to cool completely. Carefully remove the old MR-16 lamp and insert a new 50-watt 12V MR-16 lamp. Ensure the new lamp is securely seated before restoring power.

Troubleshooting

Specifications

Warranty and Support

Manufacturer Warranty: This Progress Lighting product is covered by a 1-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.

For warranty claims, technical support, or further assistance, please contact Progress Lighting customer service. Refer to the official Progress Lighting website for the most current contact information.
