BLACK+DECKER CT06160 Toast-R-Oven Classic User Manual

1. Introduction

Thank you for choosing the BLACK+DECKER CT06160 Toast-R-Oven Classic. This countertop oven/broiler is designed for versatile cooking, including toasting, baking, broiling, and reheating. Its convection feature helps to speed up cooking times. Please read this manual thoroughly before operating your appliance to ensure safe and efficient use.

2. Important Safety Instructions

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• To disconnect, turn any control to 'OFF', then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Oversize foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.
• A fire may occur if the oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
• Do not place any materials other than manufacturer's recommended accessories in this oven when not in use.
• Do not place cardboard, plastic, paper, or similar materials in the oven.
• Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.
• Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
• Always wear protective, insulated oven mitts when inserting or removing items from the hot oven.

3. Product Components

The BLACK+DECKER CT06160 Toast-R-Oven Classic includes the following main components:

• Oven Unit with See-Through Door
• Two (2) Oven Racks
• Broiler Pan
• Swing-Open Crumb Tray
• Control Dials (Function, Temperature, Timer)

4. Initial Setup

1. Unpack the oven and remove all packaging materials, including any internal packing.
2. Place the oven on a stable, heat-resistant surface, ensuring adequate clearance (at least 6 inches) from walls, cabinets, and other appliances to allow for proper ventilation.
3. Wash the oven racks, broiler pan, and crumb tray in warm, soapy water. Rinse thoroughly and dry.
4. Insert the crumb tray into the bottom of the oven.
5. Plug the power cord into a standard electrical outlet.
6. Before first use, operate the oven on the 'Bake' function at 450°F (232°C) for approximately 15 minutes to burn off any manufacturing oils. A slight odor or smoke may be present; this is normal. Ensure the area is well-ventilated.

5. Operating Instructions

The BLACK+DECKER CT06160 offers multiple cooking functions controlled by three main dials: Function, Temperature, and Timer.

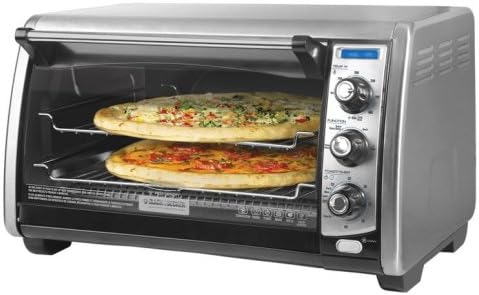

Image: The BLACK+DECKER CT06160 Toast-R-Oven Classic, shown with two pizzas cooking on separate racks. The control panel with three dials (Function, Temperature, Timer) is visible on the right side of the appliance. The oven features a stainless steel and black finish with a clear glass door.

5.1 Function Dial

This dial selects the desired cooking mode:

• Toast: For toasting bread, bagels, and frozen waffles.
• Bake: For baking items like cookies, cakes, and casseroles. Utilizes convection for even heating.
• Broil: For broiling meats, fish, or browning the tops of dishes.
• Reheat: For warming up leftovers.

5.2 Temperature Dial

This dial sets the cooking temperature from 200°F (93°C) up to 450°F (232°C). Always preheat the oven for 5-10 minutes before placing food inside for optimal results, especially for baking.

5.3 Timer Dial

The 60-minute timer dial allows you to set the cooking duration. It features an auto-off function and an audible signal when the time expires. For continuous cooking, turn the dial past the 'Stay On' mark.

5.4 Rack Positions

The oven features two rack positions for flexibility. Use the upper position for broiling or when cooking smaller items. Use the lower position for baking larger items or when using both racks simultaneously, such as with two 12-inch pizzas.

6. Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the life of your oven.

1. Always unplug the oven and allow it to cool completely before cleaning.
2. Crumb Tray: The swing-open crumb tray can be easily removed for cleaning. Slide it out and discard crumbs. Wash in warm, soapy water, rinse, and dry thoroughly.
3. Oven Racks and Broiler Pan: Wash these accessories in warm, soapy water. For stubborn food residue, soak them before scrubbing. They are not dishwasher safe.
4. Interior: Wipe the interior walls with a damp cloth and mild detergent. Do not use abrasive cleaners or metal scouring pads, as they can damage the non-stick coating.
5. Exterior: Wipe the exterior surfaces with a damp cloth. Dry thoroughly.
6. Do not immerse the oven unit in water or any other liquid.

7. Troubleshooting

If you encounter issues with your BLACK+DECKER CT06160, refer to the following common problems and solutions:

• Oven does not turn on:
  • Ensure the power cord is securely plugged into a working electrical outlet.
  • Check if the timer dial is set to a cooking duration or 'Stay On'.
  • Verify that the circuit breaker has not tripped.
• Food is not cooking evenly:
  • Ensure the oven was preheated to the correct temperature.
  • Adjust rack position for better heat distribution.
  • Rotate food halfway through cooking time.
• Smoke or odor during initial use:
  • This is normal for the first few uses as manufacturing oils burn off. Ensure good ventilation.
  • If smoke persists, check for food spills or residue inside the oven and clean as per maintenance instructions.
• Timer does not advance or stops:
  • Ensure the timer dial is properly set. If the issue persists, contact customer support.

8. Product Specifications

9. Warranty Information

BLACK+DECKER warrants this product against any defects in material or workmanship for a specified period from the original date of purchase. This warranty does not cover damage caused by accident, misuse, abuse, commercial use, or unauthorized modification. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official BLACK+DECKER website.

10. Customer Support

For further assistance, product registration, or to order replacement parts, please visit the official BLACK+DECKER website or contact their customer service department. Contact information can typically be found on the product packaging or the official brand website.
