Mirro 15-PSI Pressure Control Weight User Manual

Introduction

This manual provides essential information for the proper use and maintenance of your Mirro 15-PSI Pressure Control Weight, Model 92115. This accessory is designed to regulate pressure in compatible Mirro pressure cookers and canners, including models 92112, 92116, 92122, and 92122A. Proper use ensures safe and efficient operation of your pressure cooking appliance.

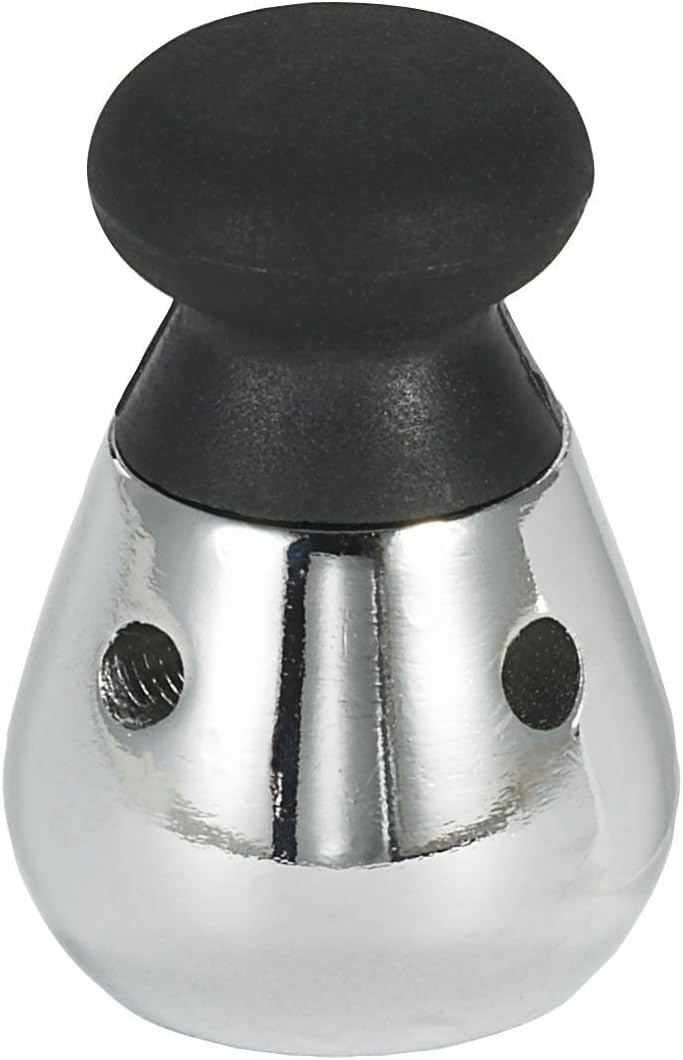

Image: Mirro 15-PSI Pressure Control Weight, a silver-colored, bell-shaped metal weight with a black knob on top, designed to fit onto a pressure cooker's vent pipe.

Setup

The Mirro 15-PSI Pressure Control Weight is designed for simple installation on compatible Mirro pressure cookers and canners.

1. Ensure Compatibility: Verify that your pressure cooker or canner model is listed as compatible (e.g., 92112, 92116, 92122, 92122A).
2. Inspect Vent Pipe: Before each use, ensure the vent pipe on your pressure cooker lid is clean and free from any food debris or blockages. A blocked vent pipe can lead to dangerous pressure buildup.
3. Place the Weight: Once the pressure cooker lid is securely in place and sealed, carefully place the 15-PSI Pressure Control Weight onto the vent pipe. It should fit snugly. Do not force it.
4. Initial Check: Before heating, confirm the weight is seated correctly on the vent pipe.

Operating Instructions

The 15-PSI Pressure Control Weight automatically regulates the internal pressure of your cooker once it reaches 15 pounds per square inch (PSI).

• Heating: Place the pressure cooker with the control weight on a heat source. Initially, steam will escape steadily from under the weight. This is normal and indicates that air is being vented from the cooker.
• Pressure Indication: As pressure builds, the weight will begin to "jiggle" or "rock" steadily. This indicates that the desired 15 PSI pressure has been reached.
• Adjust Heat: Once the weight begins to jiggle steadily, reduce the heat to the lowest setting that maintains a consistent, gentle jiggling motion. Excessive jiggling indicates too much heat and can lead to liquid loss.
• Timing: Begin timing your cooking or canning process only after the weight starts to jiggle steadily.
• Depressurizing: After cooking, remove the pressure cooker from the heat. Allow the pressure to drop naturally until the weight stops jiggling and no steam escapes. Do not attempt to remove the weight or open the lid until all pressure has been released.

Safety Note: Always follow the specific instructions provided with your Mirro pressure cooker or canner. Never leave a pressure cooker unattended while in operation.

Maintenance

Proper maintenance of your pressure control weight ensures its longevity and accurate performance.

• Cleaning: The Mirro 15-PSI Pressure Control Weight is dishwasher safe. For manual cleaning, wash with warm, soapy water and rinse thoroughly. Ensure no food particles are lodged in the vent holes or around the base.
• Inspection: Regularly inspect the weight for any signs of damage, cracks, or deformation. A damaged weight may not regulate pressure correctly.
• Storage: Store the weight in a clean, dry place when not in use, preferably with your pressure cooker.

Troubleshooting

If you encounter issues with your pressure control weight, consider the following:

Specifications

Warranty and Support

For information regarding warranty coverage or to obtain support for your Mirro product, please refer to the documentation included with your original Mirro pressure cooker or canner, or visit the official Mirro website. You may also contact Mirro customer service directly for assistance with replacement parts or product inquiries.
