Introduction
This manual provides essential information for the safe and effective use of your Arnold 19-Inch Universal 3-in-1 Mower Blade. This blade is designed to mulch, bag, and side discharge grass, offering versatility for various lawn care needs. It is compatible with many walk-behind mower brands, including Bolens, Craftsman, Huskee, Husqvarna, Lawn-Boy, MTD, Murray, Poulan, Snapper, Toro, Troy-Bilt, Weed Eater, Yard Machines, and Yard-Man.
Please read all instructions carefully before installation and operation to ensure personal safety and optimal performance of your equipment.
Safety Information
Always prioritize safety when working with lawn mower blades. Failure to follow these safety guidelines can result in serious injury.
- Disconnect Spark Plug: Before performing any maintenance or blade replacement, always disconnect the spark plug wire to prevent accidental engine starting.
- Wear Protective Gear: Always wear heavy-duty gloves and eye protection when handling mower blades. Blades are sharp and can cause cuts.
- Stable Surface: Ensure the lawn mower is on a flat, stable surface and cannot roll or tip over during blade replacement.
- Proper Tools: Use appropriate tools for blade removal and installation to prevent stripping bolts or causing damage.
- Inspect Blade: Before each use, inspect the blade for damage, cracks, or excessive wear. Replace damaged blades immediately.
- Keep Clear: Keep hands, feet, and clothing away from the blade area when the engine is running.
Setup and Installation
Follow these steps to safely install your new Arnold 19-Inch Universal 3-in-1 Mower Blade.
- Prepare the Mower:
- Ensure the mower engine is off and cool.
- Disconnect the spark plug wire and secure it away from the spark plug to prevent accidental starting.
- If your mower has a fuel shut-off valve, turn it to the "OFF" position.
- Tilt the mower onto its side with the carburetor and air filter facing upwards to prevent fuel or oil leakage.
- Remove Old Blade:
- Wear heavy-duty gloves.
- Use a block of wood to brace the old blade against the mower deck to prevent it from turning.
- Using a wrench, loosen the blade bolt(s) by turning counter-clockwise. Note that some bolts may have reverse threads.
- Carefully remove the old blade and any washers or spacers. Note their orientation for reinstallation.
- Install New Blade:
- Clean any grass clippings or debris from the blade mounting area on the mower deck.
- Position the new Arnold 19-Inch Universal 3-in-1 Mower Blade (Model 490-100-0100) onto the blade adapter. Ensure the cutting edges face the correct direction (usually towards the ground when the mower is upright). The curved "wings" of the blade should point upwards towards the mower deck.
- Reinstall any washers or spacers in their original orientation.
- Insert the blade bolt(s) and tighten them by turning clockwise. Use the block of wood to brace the blade again.
- Tighten the blade bolt(s) securely to the manufacturer's recommended torque specifications (refer to your mower's manual). Overtightening or undertightening can be dangerous.
- Final Checks:
- Ensure the blade is firmly attached and does not wobble.
- Reconnect the spark plug wire.
- Return the mower to its upright position.

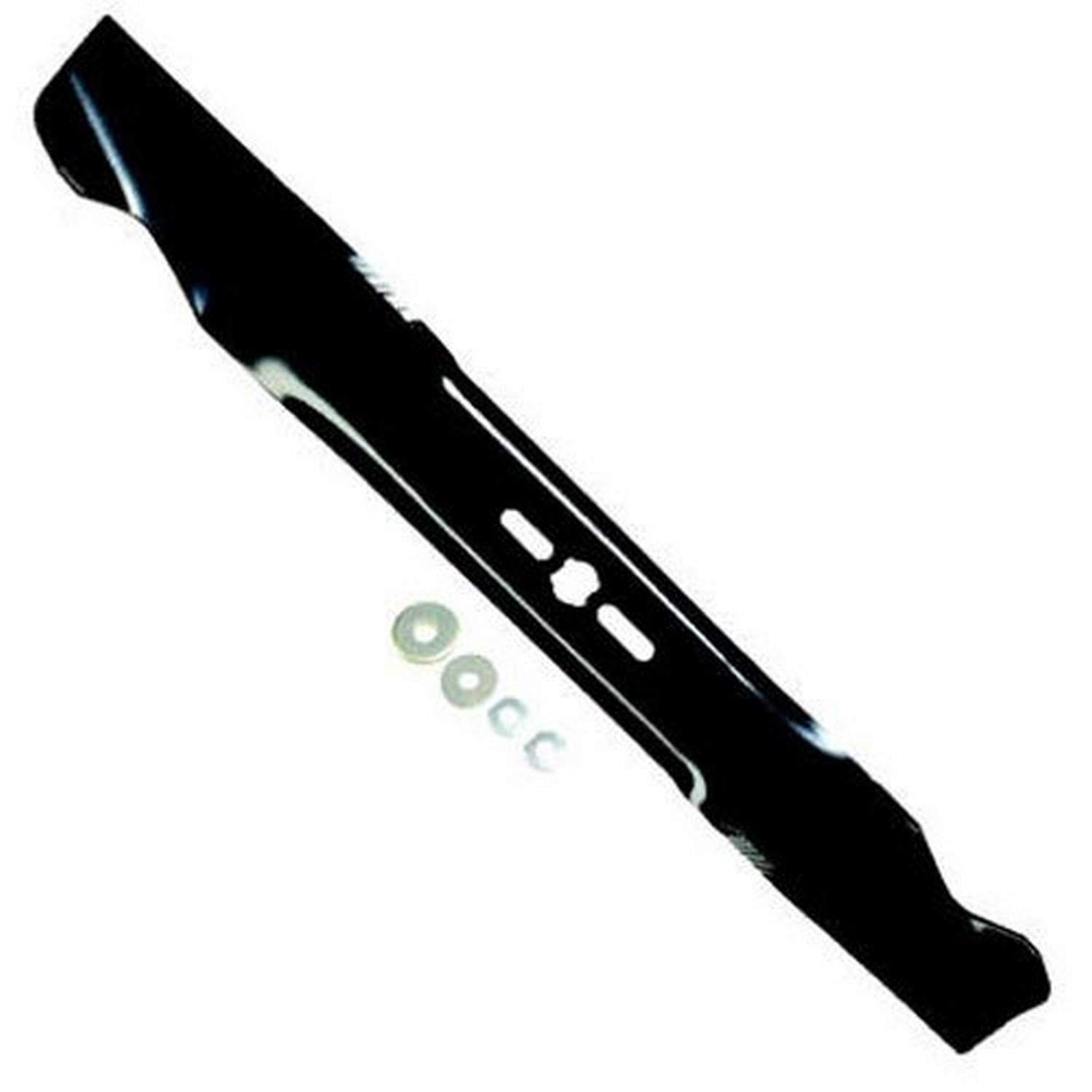

Image: The Arnold 19-Inch Universal 3-in-1 Mower Blade, showing its design for mulching, bagging, and side discharge.
Image: A typical walk-behind lawn mower, illustrating the type of equipment this blade is designed for.
Operating the Blade
The Arnold 19-Inch Universal 3-in-1 Mower Blade is designed for versatile grass cutting. Its unique design allows for three primary functions:
- Mulching: The blade's design creates a strong airflow that keeps grass clippings suspended longer, allowing them to be cut into finer pieces before falling back onto the lawn as natural fertilizer.
- Bagging: The blade's lift action helps to efficiently direct grass clippings into the mower's collection bag.
- Side Discharge: For areas where bagging or mulching is not desired, the blade effectively discharges clippings out of the side chute.
Always operate your mower according to its manufacturer's instructions. Ensure the grass is dry for best cutting results and to prevent clogging.
Maintenance
Regular maintenance of your mower blade ensures optimal cutting performance and extends its lifespan.
- Cleaning: After each use, disconnect the spark plug and carefully clean grass clippings and debris from the blade and underside of the mower deck. This prevents buildup that can reduce cutting efficiency and cause rust.
- Sharpening: Sharpen the blade regularly, typically after every 25 hours of use or at the start of each mowing season. A sharp blade provides a clean cut, which is healthier for your lawn. Ensure the blade remains balanced after sharpening to prevent excessive vibration. If you are unsure how to sharpen a blade, consult a professional.
- Inspection: Periodically inspect the blade for signs of wear, cracks, bends, or nicks. A damaged blade can be dangerous and should be replaced immediately.
- Balancing: An unbalanced blade can cause excessive vibration, leading to premature wear on mower components and an uneven cut. After sharpening or if you notice unusual vibration, check the blade's balance.
Troubleshooting
Here are some common issues and their potential solutions related to your mower blade:
| Problem | Possible Cause | Solution |
|---|---|---|
| Uneven Cut | Dull blade, bent blade, unbalanced blade, incorrect blade installation. | Sharpen or replace blade. Check blade for bends. Ensure blade is balanced and installed correctly. |
| Excessive Vibration | Unbalanced blade, bent blade, loose blade bolt. | Check blade balance. Inspect for bends and replace if necessary. Tighten blade bolt to specifications. |
| Poor Mulching/Bagging | Dull blade, wet grass, excessive grass height, clogged deck. | Sharpen blade. Mow when grass is dry. Cut tall grass in multiple passes. Clean underside of mower deck. |
| Blade Not Spinning Freely | Obstruction, seized blade adapter, bent crankshaft. | Disconnect spark plug and check for obstructions. If adapter or crankshaft are damaged, seek professional service. |
Specifications
- Model Number: 490-100-0100
- Blade Length: 19 inches
- Blade Type: Universal 3-in-1 (Mulching, Bagging, Side Discharge)
- Product Dimensions: 19 x 2.25 x 1.1 inches
- Item Weight: 1.7 pounds
- Manufacturer: Arnold
- ASIN: B001AH8HMA
Warranty Information
For specific warranty details regarding your Arnold 19-Inch Universal 3-in-1 Mower Blade, please refer to the packaging or visit the official Arnold website. Warranty terms typically cover manufacturing defects and vary by product and region.
Support and Contact
If you require further assistance or have questions not covered in this manual, please contact Arnold customer support. You can typically find contact information on the product packaging or the official Arnold website.
For additional resources and product information, you may visit the Arnold Store on Amazon.
