Wahl Professional Adjusto-Lock 3 Hole Clipper Blade #1026-001 Instruction Manual

Product Overview

The Wahl Professional Adjusto-Lock 3 Hole Clipper Blade #1026-001 is a high-precision replacement blade designed for specific Wahl clipper models. It is engineered for sharp, accurate performance and includes the blade, oil, screws, and installation instructions.

Image: The Wahl Professional Adjusto-Lock 3 Hole Clipper Blade #1026-001, showing the two blade pieces and three screw holes.

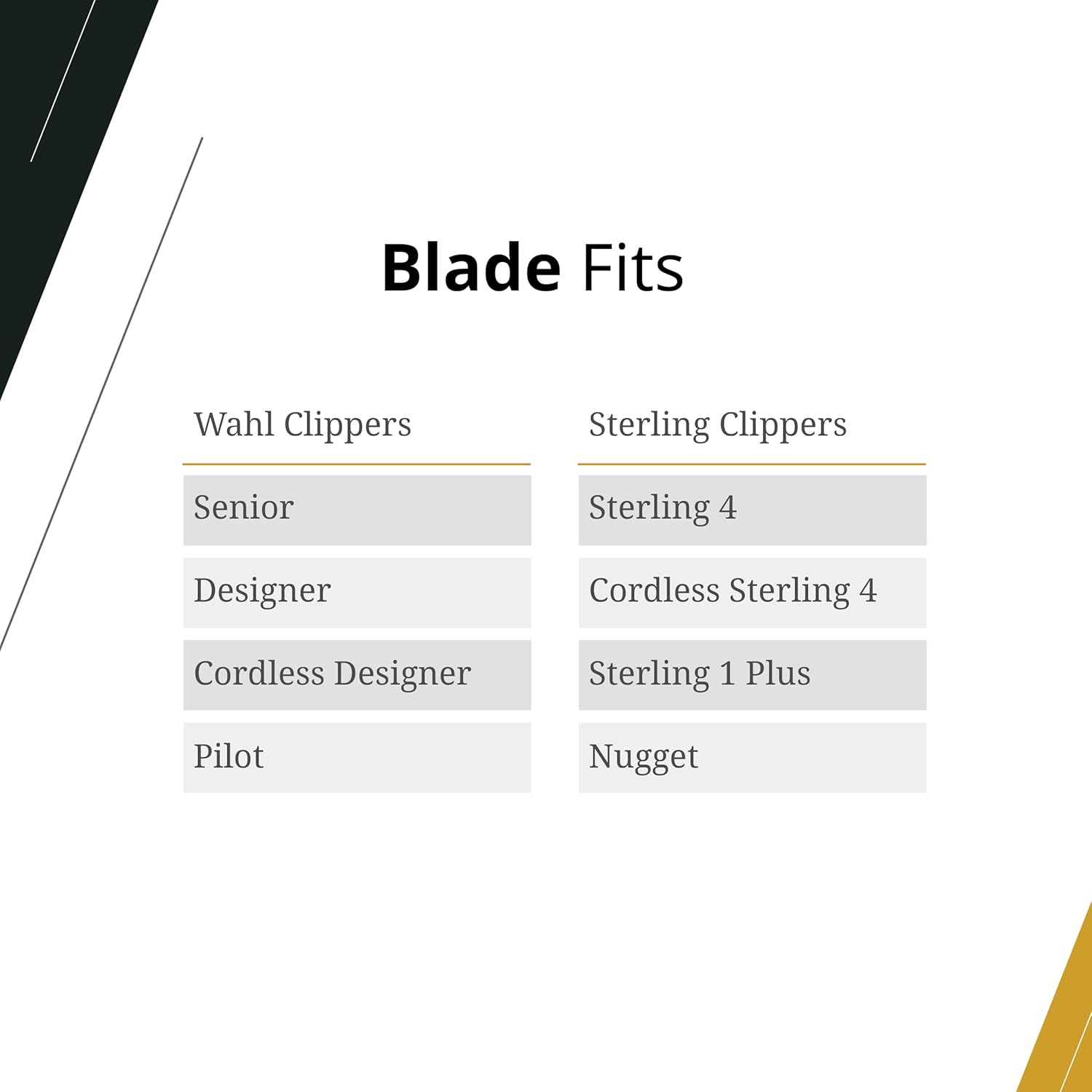

Compatible Clipper Models

This blade is compatible with the following Wahl clippers:

• Wahl Designer
• Wahl Senior
• Wahl Cordless Designer
• Wahl Pilot
• Wahl Sterling 4
• Wahl Nugget

Image: A visual representation of various Wahl clippers, indicating compatibility with the #1026-001 blade.

Setup and Installation

Proper installation of the clipper blade is crucial for optimal performance and safety. Follow these steps carefully:

1. Ensure the clipper is unplugged and turned off.
2. Move the blade adjustment lever to the full forward position.
3. Remove the existing blade by unscrewing the two screws holding it in place.
4. Position the small top blade over the clipper drive finger.
5. Place the large bottom blade on top of the small top blade.
6. Replace the screws and partially tighten them.
7. Align the blades: The extreme left-hand tooth of the top blade must be on the first small tooth of the bottom blade. The top blade should be 1/32" to 1/16" back and parallel to the points of the bottom blade teeth.
8. Once aligned, fully tighten the screws.
9. Plug the clipper in, turn the switch on and off a couple of times, then check the alignment of the blades again.

Image: A diagram illustrating the correct alignment of the top and bottom clipper blades, showing the recommended offset and parallelism.

Operating Instructions

This blade is designed for precision cutting and fading. It is ideal for clipper-over-comb work.

• Ensure blades are clean and oiled before each use.
• Use the clipper with appropriate guards for desired hair length.
• For close cutting and precision fading, the adjustable thin profile blade sits close to the scalp.

Image: A close-up of a Wahl clipper in use, demonstrating precision cutting and fading techniques.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your clipper blades.

• Oiling: Apply a few drops of clipper oil to the blades before and after each use. This lubricates the blades, reduces friction, and prevents rust.
• Cleaning: After each use, brush off any loose hair from the blades. For thorough cleaning, use a blade disinfectant and cleaner.
• Storage: Store the clipper and blades in a clean, dry place.

Image: A bottle of Wahl Clipper Oil, essential for maintaining blade lubrication.

Troubleshooting

If you encounter issues with your clipper blade, consider the following:

• Poor Cutting Performance: Ensure blades are clean and properly oiled. Check for correct blade alignment as described in the Setup section. Dull blades may require replacement.
• Snagging or Pulling Hair: This often indicates improper blade alignment or dull blades. Re-align the blades or consider replacement.
• Overheating Blades: Insufficient oiling can cause friction and heat. Apply more oil. If the issue persists, the motor may be overworked or the blades are excessively dull.
• Unusual Noise: Check for loose screws on the blade assembly. Ensure the blade drive finger is correctly seated.

For persistent issues, contact Wahl Professional customer support.

Specifications

Warranty and Support

For warranty information and customer support, please refer to the official Wahl Professional website or contact their customer service directly. Keep your purchase receipt as proof of purchase.

Wahl Professional Contact Information:

• Website: wahlpro.com
• Phone: (Refer to Wahl Professional website for current contact numbers)
