Introduction
This manual provides instructions for the installation, operation, and maintenance of the TOTO MS853113E Eco Ultra Max One-Piece Round Bowl Toilet. This model features a sleek, one-piece design for enhanced aesthetics and ease of cleaning. It incorporates TOTO’s E-Max® flushing system, designed for powerful and efficient flushing with 1.28 gallons per flush (GPF). The toilet is equipped with a SoftClose® seat and meets EPA WaterSense®, California CEC, and CALGreen requirements.
Front view of the TOTO MS853113E Eco Ultra Max One-Piece Toilet in Cotton White.
Safety Information
Before beginning installation or maintenance, please read all instructions carefully. Failure to follow these instructions could result in property damage or personal injury. Always consult local plumbing codes for compliance. Ensure the main water supply is shut off before performing any work on the toilet. If you are uncertain about any step, it is recommended to consult a qualified professional plumber.
Package Contents
Verify that all components are present before beginning installation:
- TOTO Eco Ultra Max One-Piece Round Front Toilet
- Tank Cover
- Fittings for installation
- Chrome Plated Trip Lever (pre-installed)
- TOTO SoftClose® Seat
Setup and Installation
This section outlines the general steps for installing your TOTO MS853113E toilet. A 12-inch rough-in is required for proper installation. Top-tightening mounting bolts are included for ease of installation.
Required Tools (Not Included):
- Adjustable Wrench
- Screwdriver
- Putty Knife
- Tape Measure
- Level
- Wax Ring with Flange
- Flexible Water Supply Line
Installation Steps:
- Prepare the Area: Ensure the floor flange is clean and free of debris. Remove any old wax ring material.
- Install Flange Bolts: Insert the T-bolts into the floor flange slots and secure them with washers and nuts, ensuring they are upright and parallel to the wall.
- Set the Wax Ring: Place the new wax ring onto the horn of the toilet bowl or directly onto the floor flange, ensuring a good seal.
- Position the Toilet: Carefully lift the toilet and align the bolt holes in the base with the T-bolts. Gently lower the toilet onto the wax ring, pressing down firmly and evenly to create a watertight seal. Do not rock the toilet.
- Secure the Toilet: Place washers and nuts onto the T-bolts. Hand-tighten the nuts, then use a wrench to tighten them incrementally, alternating between bolts to ensure even pressure. Do not overtighten, as this can crack the ceramic.
- Connect Water Supply: Attach the flexible water supply line from the shut-off valve to the toilet's fill valve connection. Hand-tighten, then use a wrench for a final snug turn. Do not overtighten.
- Restore Water Supply: Slowly turn on the main water supply and check for leaks at all connections. Allow the tank to fill.
- Install SoftClose Seat: Follow the separate instructions provided with the SoftClose seat for proper attachment to the toilet bowl. The top-tightening design simplifies this process.

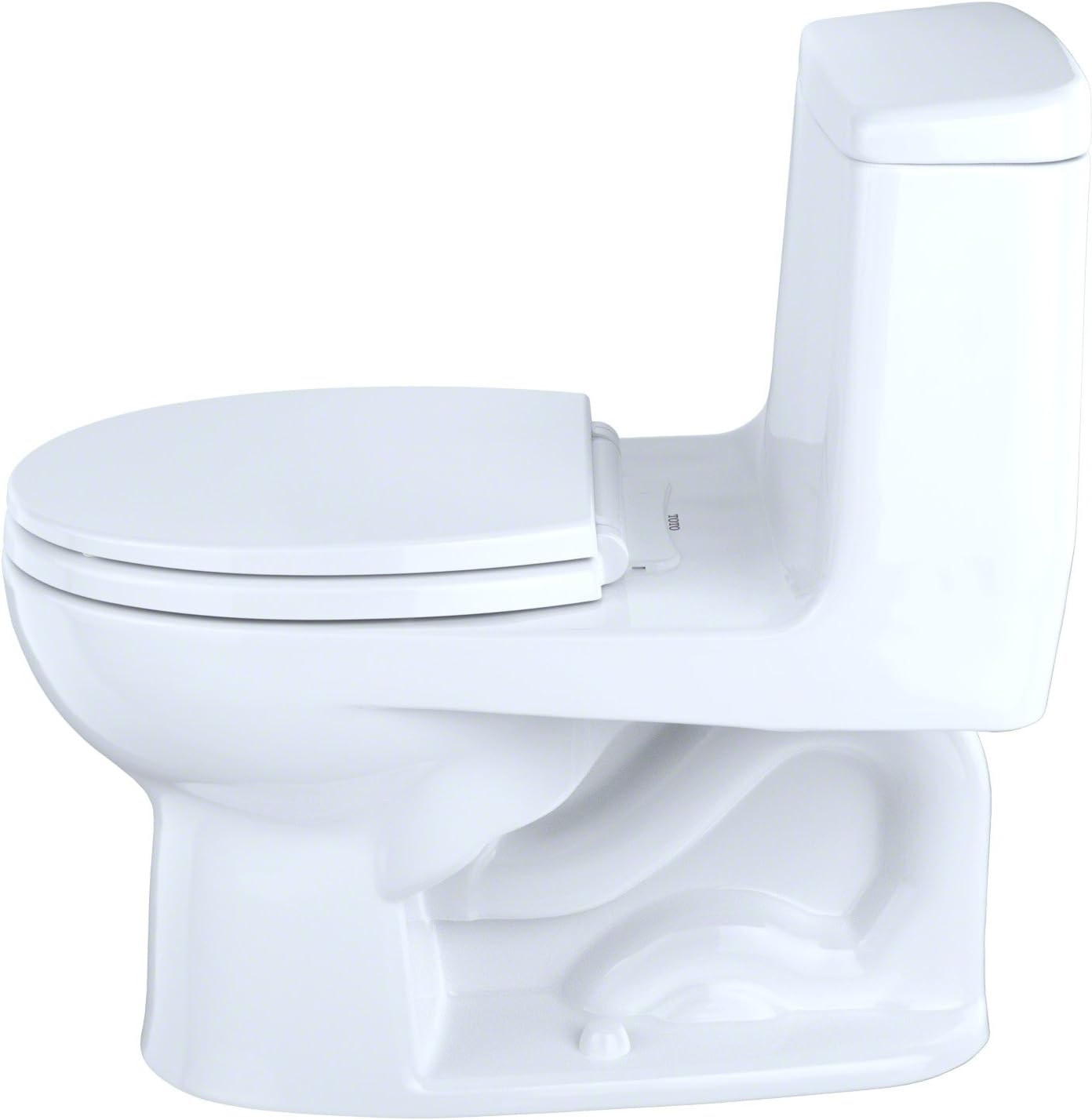

Side view of the TOTO MS853113E Eco Ultra Max One-Piece Toilet, illustrating its compact design.
Operating Instructions
Flushing the Toilet:
To flush the toilet, press down firmly on the chrome trip lever located on the left side of the tank. The E-Max flushing system will initiate a powerful siphon jet action, clearing the bowl efficiently with 1.28 gallons of water. Release the lever once flushing is complete.
Close-up of the chrome trip lever for flushing.
Using the SoftClose® Seat:
The TOTO SoftClose® seat is designed to lower gently and quietly, preventing slamming. To close the seat or lid, simply push it down slightly and release. The built-in hinge system will control the descent, ensuring a soft closure.
Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your TOTO toilet.
Cleaning the Toilet:
- Exterior: The one-piece design eliminates crevices, making the exterior easier to clean. Use a soft cloth and a mild, non-abrasive bathroom cleaner. Wipe down all ceramic surfaces, including the tank, bowl exterior, and base.
- Interior Bowl: Use a toilet brush and a non-abrasive toilet bowl cleaner. Apply cleaner, let it sit for the recommended time, then scrub thoroughly and flush.
- SoftClose® Seat: Clean the seat and lid with a soft cloth and mild soap and water. Avoid harsh chemicals or abrasive cleaners, as these can damage the finish and the SoftClose mechanism.
- Chrome Trip Lever: Wipe with a soft, damp cloth. Avoid abrasive cleaners that can scratch the chrome finish.
General Maintenance Tips:
- Periodically check the water supply line connection for any signs of leaks.
- Ensure the tank cover is properly seated to prevent foreign objects from falling into the tank mechanism.
Top-down view of the toilet, highlighting the tank and seat for cleaning access.
Troubleshooting
This section addresses common issues you might encounter with your toilet.
| Problem | Possible Cause | Solution |
|---|
| Weak Flush / Multiple Flushes Required | Low water level in tank; obstructed trapway; faulty flush valve seal. | Check water level and adjust if necessary. Inspect the trapway for blockages. Examine the flush valve seal for wear or debris. |
| Continuous Running Water | Fill valve not shutting off; flush valve seal not seating properly. | Check the fill valve for proper operation and adjustment. Inspect the flush valve seal for debris or damage and replace if needed. |
| Leaking at Base | Improperly seated wax ring; loose mounting bolts; cracked ceramic. | Tighten mounting bolts evenly (do not overtighten). If leaking persists, the wax ring may need replacement. Inspect for ceramic cracks. |
| Noisy Operation (e.g., Water Hammer) | Faulty fill valve; high water pressure. | Inspect or replace the fill valve. Consider installing a water hammer arrestor if the issue persists and is related to water pressure. |
Specifications
- Model Number: MS853113E#01
- Color: Cotton White
- Product Dimensions (D x W x H): 26.5" x 16.5" x 27.13"
- Material: Ceramic, Plastic
- Item Weight: 65 Pounds
- Installation Type: Floor Mounted
- Shape: Round
- Seat Material Type: Plastic
- Water Consumption: 1.28 Gallons per Flush (GPF)
- Flush Type: Gravity Flush Toilets (E-Max System)
- Certification: WaterSense, CALGreen, CEC Compliant
- Included Components: ECO ULTRAMAX ROUND FRONT 1-PC TOILET, Tank Cover, Fittings, Chrome Plated Trip Lever, SoftClose Seat
- UPC: 739268117617, 738759692954
Warranty and Support
Warranty Information:
This TOTO toilet is covered by a Manufacturer One Year Limited Warranty. Please refer to the warranty documentation included with your product for specific terms, conditions, and limitations.
Customer Support:
For technical assistance, replacement parts, or warranty claims, please contact TOTO customer service. You can find contact information and additional resources on the official TOTO website: www.totousa.com
