1. Product Overview
The Walker Heavy Duty 41224 Exhaust Elbow is a critical component designed for exhaust systems, providing a 90-degree bend for optimal exhaust flow. Manufactured with durable aluminized-steel, it is engineered to inhibit corrosion and ensure long-lasting performance. This universal fit elbow is suitable for various applications, connecting pipes at the correct angle for efficient exhaust routing.

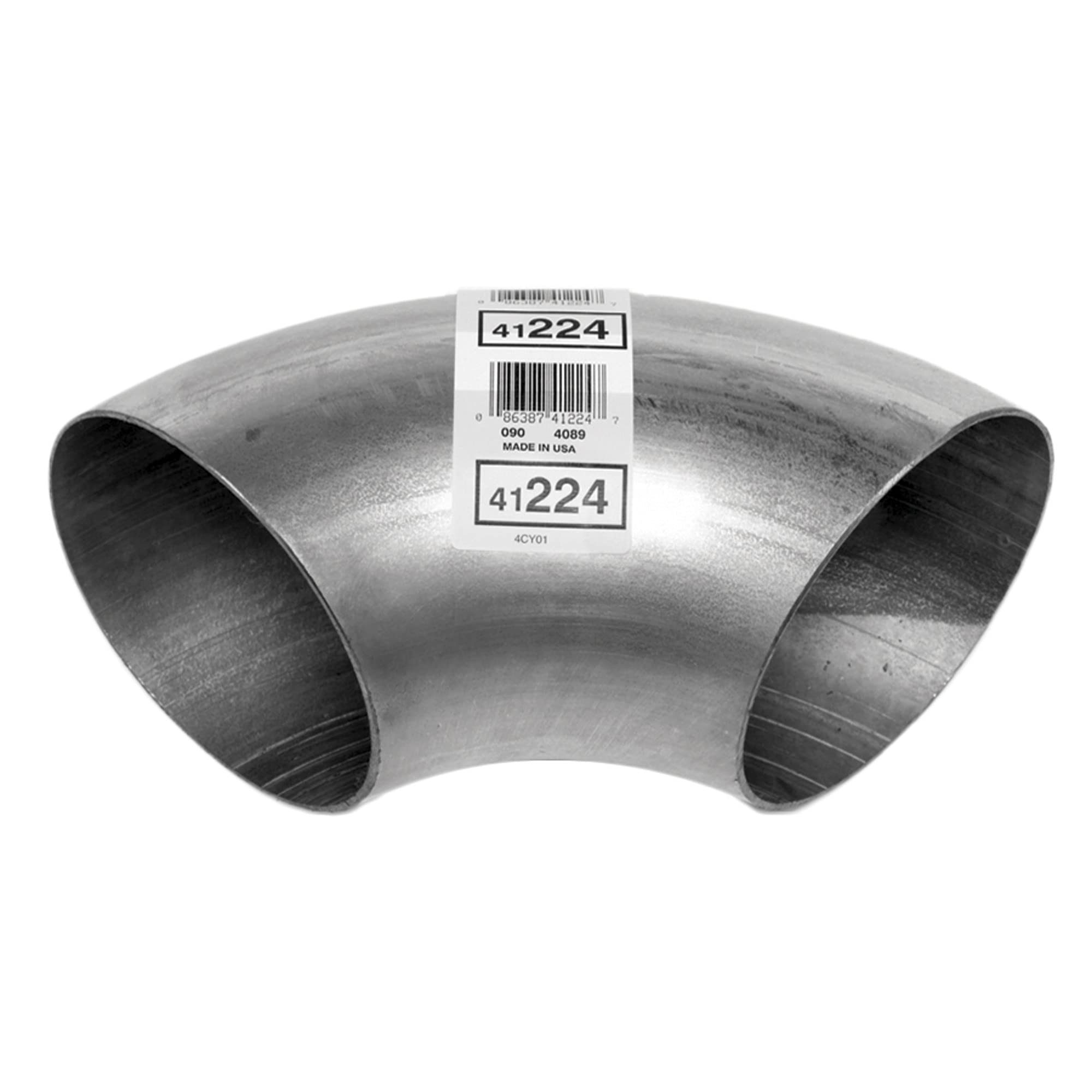

Image: The Walker Heavy Duty 41224 Exhaust Elbow, showing its 90-degree bend and aluminized finish. The product label with model number 41224 and UPC 086387412247 is visible.
2. Compatibility
The Walker 41224 Exhaust Elbow is designed for universal fit applications. To ensure proper fitment for your specific vehicle, it is crucial to verify product dimensions and compare them with your vehicle's requirements. This elbow is ideal for weld or clamp installations within an exhaust system.
- Universal Fit: Designed to be compatible with a wide range of exhaust systems.
- Dimension Verification: Always check the product dimensions (5" Inlet OD, 5" Outlet OD) against your vehicle's specifications before purchase.
- Installation Type: Suitable for both weld-on and bolt-on/clamp-on installations.
Image: A welder working on an exhaust system, illustrating the compatibility for weld installations.
3. Key Features
- Durable Construction: Made from aluminized-steel to inhibit corrosion and promote long-term performance.
Image: Illustration of various exhaust components, highlighting the use of premium materials for durability.
- Optimal Exhaust Flow: Connects pipes at the correct angle (90-degree) to ensure efficient exhaust gas flow.
- Easy to Install: Designed with precision bends and OE-style routings for straightforward installation.
- Variety of Sizes: Walker offers a range of exhaust components in different diameters and lengths to meet diverse vehicle repair needs.
Image: An assortment of exhaust pipes and elbows, demonstrating the variety of sizes available from Walker.
- System Integration: Works seamlessly with other Walker exhaust system components like catalytic converters and mufflers for a complete upgrade.
Image: Various Walker exhaust system components, including a muffler and catalytic converter, illustrating how they work together for a complete system.
4. Installation Guide
The Walker 41224 Exhaust Elbow is designed for straightforward installation, typically involving welding or clamping. Professional installation is recommended for optimal performance and safety.
4.1 Pre-Installation Checks
- Verify Compatibility: Double-check that the elbow's dimensions (5" Inlet OD, 5" Outlet OD) match your existing exhaust piping.
- Inspect Components: Ensure all parts are free from damage or defects before beginning installation.
- Gather Tools: Have all necessary tools ready, which may include wrenches, exhaust pipe cutters, welders (if welding), clamps, and safety gear.
4.2 Installation Steps (General)
- Safety First: Ensure the vehicle is securely lifted and supported. Allow the exhaust system to cool completely before handling. Wear appropriate personal protective equipment (PPE), including gloves and eye protection.
- Remove Old Component: Carefully remove the existing elbow or section of pipe that is being replaced. This may involve cutting or unbolting.
- Prepare Surfaces: Clean and deburr the ends of the pipes where the new elbow will connect to ensure a tight fit.
- Position the Elbow: Slide the Walker 41224 Exhaust Elbow onto the existing pipes, ensuring correct alignment for optimal exhaust flow.
- Secure Connections:
- For Clamp-On Installation: Use appropriate exhaust clamps to secure the elbow firmly to the pipes. Tighten clamps evenly to prevent leaks.
- For Weld-On Installation: Tack weld the elbow into place, then perform a full, continuous weld around the circumference of the joint. Ensure welds are strong and leak-free.
- Check for Leaks: After installation, start the engine and check for any exhaust leaks around the newly installed elbow. Leaks can be identified by sound or by using a smoke machine.
- Final Inspection: Ensure all connections are secure and there is adequate clearance from other vehicle components.
Note: Specific installation procedures may vary based on vehicle make, model, and existing exhaust system configuration. Consult a professional mechanic if you are unsure about any step.
Image: A detailed diagram illustrating the various components of a complete exhaust system, including catalytic converters, mufflers, and pipes, providing context for elbow placement.
5. Maintenance
The Walker 41224 Exhaust Elbow is designed for durability with its aluminized-steel construction. Regular inspection is key to ensuring the longevity and proper function of your exhaust system.
- Regular Visual Inspection: Periodically inspect the exhaust elbow and surrounding components for signs of corrosion, cracks, dents, or loose connections.
- Check for Leaks: Listen for unusual noises (hissing, tapping) that might indicate an exhaust leak. Leaks can also be detected by a strong exhaust smell.
- Secure Connections: If using clamps, ensure they remain tight. Over time, vibrations can loosen connections.
- Cleanliness: While not typically required, keeping the exterior free of excessive dirt and debris can help prevent premature corrosion.
- Address Damage Promptly: Any signs of damage or significant corrosion should be addressed immediately by a qualified mechanic to prevent further system degradation or safety issues.
6. Troubleshooting
This section provides general guidance for common issues related to exhaust system components. For complex problems, consult a professional.
| Problem | Possible Cause | Solution |
|---|---|---|
| Loud Exhaust Noise / Hissing Sound | Exhaust leak at the elbow connection or a crack in the elbow. | Inspect connections for tightness. If clamped, tighten clamps. If welded, check for cracks in the weld. Replace elbow if cracked or severely corroded. |
| Vibration from Exhaust System | Loose mounting, contact with vehicle frame, or damaged hangers. | Check all hangers and mounting points for security. Ensure the elbow is not touching other vehicle components. |
| Exhaust Fumes in Cabin | Significant exhaust leak. | Immediately inspect the entire exhaust system for leaks. This is a serious safety concern. Repair or replace affected components. |
7. Product Specifications
| Attribute | Detail |
|---|---|
| Model Number | 41224 |
| Product Name | Exhaust Elbow 5" Inlet (OD) 5" Outlet (OD) |
| Brand | Walker |
| Material | Aluminized Steel / Alloy Steel |
| Finish Type | ALUMINIZED |
| Inlet Diameter | 5 inches (OD) |
| Outlet Diameter | 5 inches (OD) |
| Bend Angle | 90 degrees |
| Item Weight | 1.94 pounds |
| Product Dimensions | 11 x 2 x 2 inches |
| Installation Type | Bolt-On (also compatible with weld-on) |
| UPC | 086387412247 |
8. Warranty & Support
Walker products are manufactured to high standards. For specific warranty information regarding the Walker 41224 Exhaust Elbow, please refer to the official Walker website or contact their customer support directly. Warranty terms typically cover manufacturing defects.
For technical assistance, installation queries, or warranty claims, please contact Walker customer service or visit their official website:
- Official Website: www.walkerexhaust.com
- Customer Support: Refer to the website for contact numbers or support forms.
Note: Always retain your proof of purchase for warranty purposes.
