1. Product Overview
The Furman RL-LED Rack Light is a sturdy, 1RU (Rack Unit) rack-mountable plate designed to provide illumination for your equipment rack. It features two gooseneck LED lights, offering cool, energy-efficient, and long-lasting lighting. A convenient dimmer switch on the front panel allows for precise adjustment of light intensity. The unit is powered by a detachable 6-foot cord with an enclosed 12 VAC power supply, connecting via a 2.1 mm barrel connection at the rear.

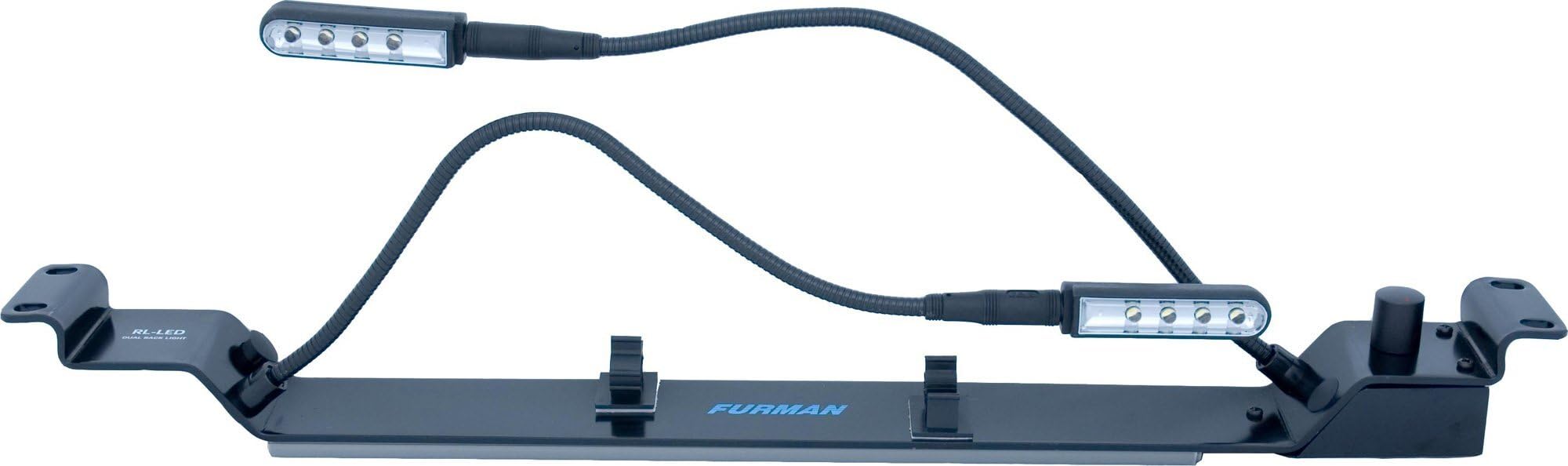

Figure 1: Furman RL-LED Rack Light showing the main unit with two gooseneck LED lamps attached, and the power supply cable.
2. Setup and Installation
- Mounting: Install the RL-LED unit into a standard 19-inch equipment rack, occupying 1RU of space. Secure it using appropriate rack screws (not included).
- Gooseneck LED Lamp Connection: The unit is designed to accommodate two gooseneck LED lamps. These lamps connect to dedicated ports on the unit. Ensure a secure connection for stable operation.
- Power Connection: Connect the detachable 6-foot power cord to the 2.1 mm barrel connection located on the rear of the RL-LED unit. Plug the 12 VAC power supply (wall wart) into a suitable AC outlet.
3. Operating Instructions
- Power On/Off: Locate the power switch on the front panel of the RL-LED unit. Flip the switch to the "ON" position to activate the LED lights. Flip to "OFF" to turn them off.
- Brightness Adjustment: Use the dimmer switch on the front panel to adjust the intensity of the LED lights. Rotate the knob clockwise to increase brightness and counter-clockwise to decrease it.
- Positioning the Gooseneck Lamps: The gooseneck design allows for flexible positioning of the LED lamps. Adjust them to direct light precisely where needed within your rack.
4. Maintenance
- Cleaning: Regularly clean the unit and LED lamps with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
- Inspection: Periodically inspect the power cord and connections for any signs of wear or damage. Ensure all connections are secure.
- LED Lifespan: The LED lights are designed for an extremely long lifespan and rarely require replacement.
5. Troubleshooting
- No Power:
- Ensure the power cord is securely connected to both the RL-LED unit and the AC outlet.
- Verify that the AC outlet is functional.
- Check the power switch on the front panel is in the "ON" position.
- Lights Not Illuminating:
- Confirm the gooseneck LED lamps are properly connected to their respective ports.
- Adjust the dimmer switch to ensure brightness is not set to minimum.
- Inconsistent Brightness:
- Check the dimmer switch for smooth operation.
- Ensure the power supply is providing stable voltage.
6. Specifications
| Brand | Furman |
| Model Number | RL-LED |
| Item Weight | 0.01 Ounces |
| Number of Items | 1 |
| Unit Count | 1.00 Count |
| Assembly Required | No |
| Manufacturer | Furman Pro |
| UPC | 654061011811 |
| Item Type Name | Power Conditioner (Note: This is a categorization; the product itself is a rack light.) |
7. Warranty Information
The Furman RL-LED Rack Light comes with a 3-year limited warranty. Please refer to the official Furman website or contact customer support for detailed terms and conditions regarding warranty claims and service.
8. Customer Support
For further assistance, technical support, or inquiries regarding your Furman RL-LED Rack Light, please visit the official Furman website or contact their customer service department. Contact information can typically be found on the manufacturer's website or product packaging.
