Rocktile MG-3008 Warhead Electric Guitar User Manual

Introduction

The Rocktile MG-3008 Warhead Electric Guitar is designed for musicians seeking a distinctive instrument with reliable performance. This manual provides essential information for setting up, operating, and maintaining your guitar, ensuring optimal playability and longevity.

The guitar features a unique body shape, two humbucker pickups, 24 frets, and a tremolo bridge, making it suitable for various musical styles, particularly those requiring powerful, distorted tones.

Setup

1. Unpacking and Initial Inspection

Carefully remove the guitar and all accessories from its packaging. Inspect the instrument for any signs of damage that may have occurred during shipping. The package should include the guitar, a 6.35mm jack cable, a tremolo arm, and Allen keys for adjustments.

Included Accessories: Allen key, 6.35mm jack cable, and tremolo arm.

2. String Action Adjustment

The string action (height of strings above the fretboard) may need adjustment to suit your playing style. Use the provided Allen keys to adjust the bridge saddles. Lowering the saddles reduces the action, while raising them increases it. Adjust incrementally to avoid fret buzz.

3. Tuning the Guitar

Before playing, ensure your guitar is in tune. Use an electronic tuner for accuracy. The guitar features closed die-cast tuning machines for stable tuning. Turn the tuning pegs to adjust the pitch of each string. Standard tuning is E-A-D-G-B-e (from thickest to thinnest string).

Tuning Machines: Closed die-cast tuning machines for stable tuning.

4. Connecting to an Amplifier

Connect one end of the 6.35mm jack cable to the guitar's output jack and the other end to the input of your guitar amplifier. Ensure your amplifier is turned off or on standby before connecting or disconnecting the cable to prevent sudden loud noises.

Operating

The Rocktile MG-3008 Warhead Electric Guitar is equipped with controls to shape your sound. Familiarize yourself with these components for optimal performance.

Guitar Controls: Volume knob, tone knobs for neck and bridge pickups, and a 3-way pickup selector switch.

1. Volume Control

The volume knob adjusts the overall output level of the guitar. Turn clockwise to increase volume and counter-clockwise to decrease it.

2. Tone Controls

The two tone knobs allow you to adjust the treble frequencies of your sound. One tone knob typically controls the neck pickup, and the other controls the bridge pickup. Turning a tone knob clockwise increases treble, while turning it counter-clockwise reduces treble, resulting in a warmer sound.

3. Pickup Selector

The 3-way toggle switch selects which pickup(s) are active:

• Position 1 (Neck): Activates the neck pickup, producing a warmer, fuller tone.
• Position 2 (Middle): Activates both the neck and bridge pickups, offering a balanced sound.
• Position 3 (Bridge): Activates the bridge pickup, providing a brighter, more aggressive tone.

Pickup Selector Function: Illustrates the positions for activating different pickups.

4. Tremolo Bridge

The tremolo bridge allows for pitch modulation effects. Gently push or pull the tremolo arm to lower or raise the pitch of the notes. Excessive use or aggressive manipulation can affect tuning stability.

Maintenance

Proper maintenance ensures the longevity and performance of your electric guitar.

• Cleaning: Regularly wipe down the guitar body, neck, and strings with a soft, lint-free cloth after each use. For the body, a guitar-specific polish can be used. For the fretboard, especially if it's rosewood, use a specialized fretboard conditioner periodically to prevent drying and cracking.
• String Replacement: Strings should be replaced regularly, depending on usage, as old strings can lose their tone and intonation. Replace one string at a time to maintain neck tension.
• Storage: Store the guitar in a stable environment, away from extreme temperature changes, humidity fluctuations, and direct sunlight. A guitar case or gig bag provides protection.
• Hardware Check: Periodically check all screws and nuts (tuning machines, bridge, strap buttons) to ensure they are snug. Do not overtighten.

Troubleshooting

Here are solutions to common issues you might encounter:

• No Sound:
  • Ensure the guitar's volume knob is turned up.
  • Check that the amplifier is on and its volume is up.
  • Verify that the instrument cable is securely connected at both ends and is not faulty.
  • Test with a different cable or amplifier if possible.
• Fret Buzz:
  • Fret buzz can be caused by low string action. Adjust the bridge saddles slightly higher using the provided Allen keys.
  • Check the neck relief. If the neck is too straight or bowed, it may require truss rod adjustment (recommended to be done by a qualified technician).
  • Ensure frets are level. Uneven frets can cause buzzing.
• Poor Tuning Stability:
  • Ensure strings are properly installed and stretched. New strings often require stretching to hold tune.
  • Check the tuning machines for any looseness.
  • Excessive use of the tremolo arm can temporarily affect tuning.
  • Ensure the nut slots are not binding the strings.

Specifications

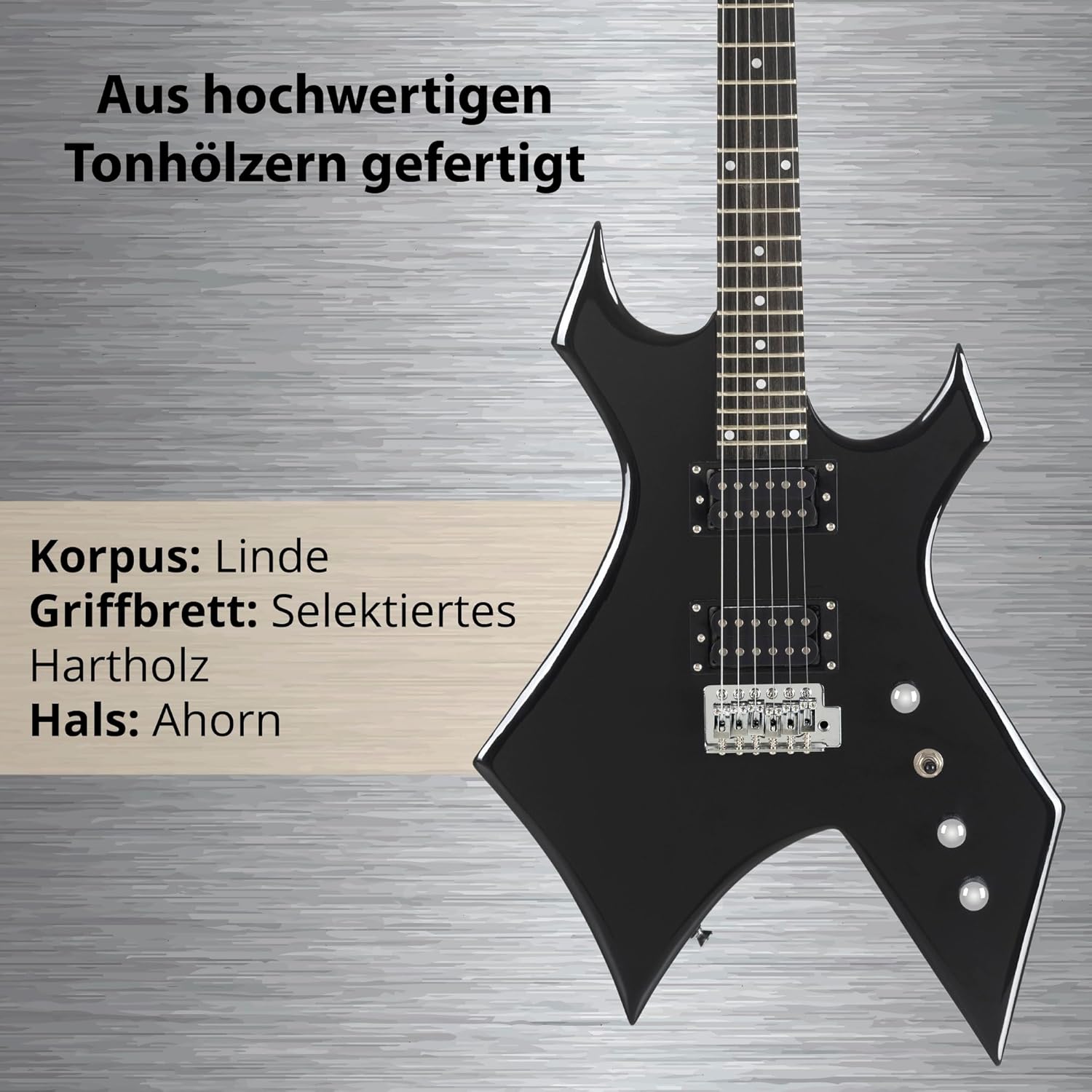

Construction Materials: Body made of Basswood, fretboard of selected hardwood, and maple neck.

Warranty and Support

Information regarding specific warranty terms and spare parts availability for the Rocktile MG-3008 Warhead Electric Guitar is not provided in the available product data. For warranty claims or technical support, please refer to the retailer or manufacturer's official website for the most current information.
