Tefal Toast N' Egg TT5500 Instruction Manual

Introduction

The Tefal Toast N' Egg TT5500 is a versatile kitchen appliance designed to prepare toast and eggs simultaneously, offering convenience for breakfast or quick meals. This manual provides detailed instructions for safe operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your appliance.

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

Read all instructions thoroughly before operating the appliance.
Do not touch hot surfaces. Use handles or knobs.
To protect against electrical shock, do not immerse cord, plugs, or appliance in water or other liquid.
Close supervision is necessary when any appliance is used by or near children.
Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
Do not use outdoors.
Do not let cord hang over edge of table or counter, or touch hot surfaces.
Do not place on or near a hot gas or electric burner, or in a heated oven.
Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to 'off', then remove plug from wall outlet.
Do not use appliance for other than intended use.
Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

Product Overview

The Tefal Toast N' Egg TT5500 combines a 2-slice toaster with an integrated egg cooking station, allowing you to prepare a complete breakfast with ease. The appliance features a control panel for browning settings and egg cooking functions.

Tefal Toast N' Egg TT5500 with toast and a fried egg in the egg cooker — Front view of the Tefal Toast N' Egg TT5500, showcasing two slices of toast in the toaster slots and a fried egg in the egg cooking compartment.

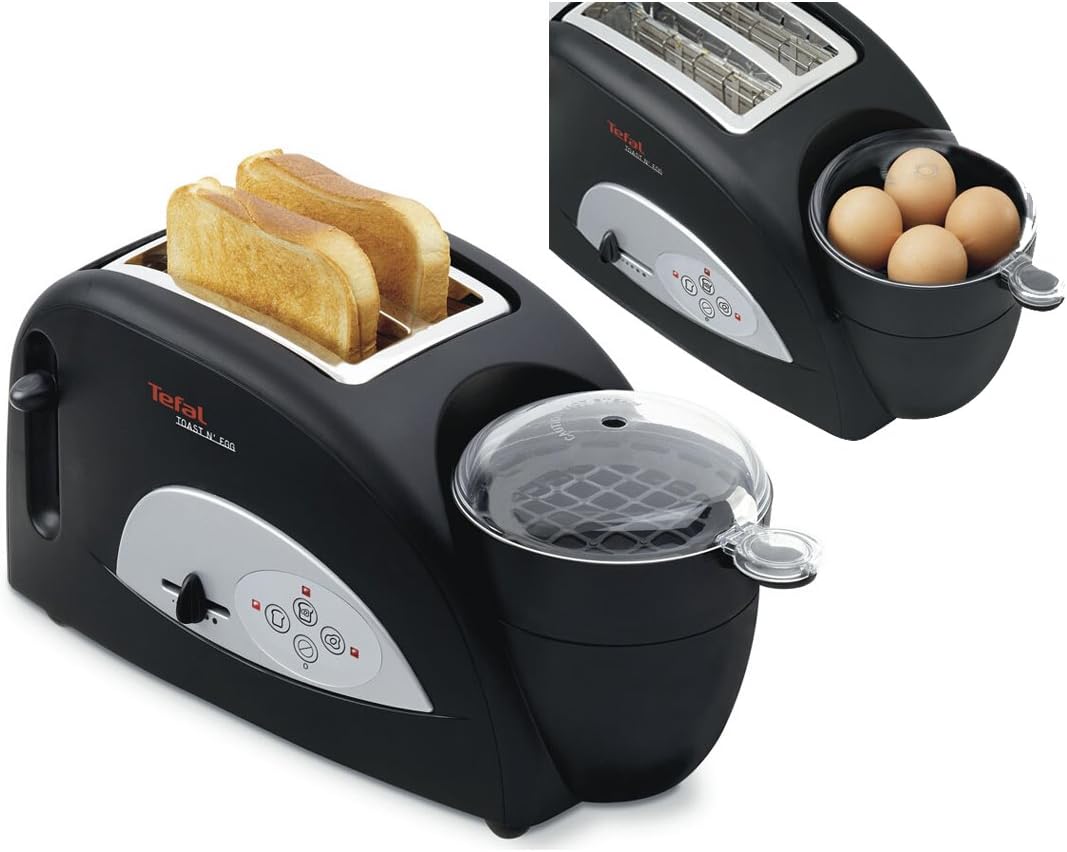

Tefal Toast N' Egg TT5500 with boiled eggs and a poached egg — The Tefal Toast N' Egg TT5500 demonstrating its egg cooking capabilities, with four boiled eggs in the steamer tray and a single poached egg in its dedicated tray.

Tefal Toast N' Egg TT5500 with dimensions labeled — Diagram showing the dimensions of the Tefal Toast N' Egg TT5500: 40cm length, 22.8cm depth, and 23.4cm height.

Setup

Unpack: Carefully remove the appliance and all accessories from the packaging. Retain packaging for future storage or transport.
Placement: Place the appliance on a stable, flat, heat-resistant surface, away from walls or cabinets to allow for adequate ventilation.
Initial Cleaning: Before first use, wipe the exterior with a damp cloth. Wash the egg cooking accessories (steamer tray, poaching tray, lid) in warm, soapy water, rinse, and dry thoroughly. Do not immerse the main unit in water.
Power Connection: Ensure the voltage indicated on the appliance matches your local power supply. Plug the power cord into a grounded electrical outlet.

Operating Instructions

Toasting Bread

Insert up to two slices of bread into the toaster slots.
Select your desired browning level using the browning control dial. The appliance offers 5 browning settings, from light to dark.
Press the toast lever down until it locks into place. The toasting cycle will begin.
Once the selected browning level is reached, the toast will automatically pop up.
To stop the toasting cycle at any time, press the 'Cancel' button.

Cooking Eggs

The egg cooking function can be used independently or simultaneously with the toaster.

For Boiled Eggs (Soft, Medium, Hard)

Using the provided measuring cup, add the appropriate amount of water to the heating plate in the egg cooking compartment. The measuring cup has markings for different egg consistencies (soft, medium, hard) and number of eggs.
Place the steamer tray onto the heating plate.
Carefully place up to four eggs into the steamer tray. It is recommended to pierce the larger end of each egg with the egg piercer located at the bottom of the measuring cup to prevent cracking during cooking.
Cover the egg cooking compartment with the transparent lid.
Press the 'Egg Cook' button to start the cooking cycle. The indicator light will illuminate.
The appliance will automatically turn off when all the water has evaporated, indicating the eggs are cooked.
Carefully remove the lid and eggs, as steam and surfaces will be hot.

For Poached Eggs

Using the provided measuring cup, add the appropriate amount of water to the heating plate for one poached egg.
Lightly grease the poaching tray with a small amount of oil or butter to prevent sticking.
Crack one egg directly into the greased poaching tray.
Place the poaching tray onto the heating plate.
Cover the egg cooking compartment with the transparent lid.
Press the 'Egg Cook' button to start the cooking cycle.
The appliance will automatically turn off when the water has evaporated.
Carefully remove the lid and poached egg.

Cleaning and Maintenance

Regular cleaning ensures the longevity and hygienic operation of your appliance.

Before Cleaning: Always unplug the appliance from the power outlet and allow it to cool completely before cleaning.
Crumb Tray: Pull out the crumb tray located at the bottom of the toaster. Empty crumbs and wipe the tray clean with a damp cloth. Reinsert the crumb tray securely.
Egg Cooking Compartment: Remove the steamer tray, poaching tray, and lid. Wash these parts in warm, soapy water using a soft sponge. Rinse thoroughly and dry. For stubborn residue on the heating plate, use a damp cloth or a non-abrasive scrubber. Avoid abrasive cleaners or metal scouring pads.
Exterior: Wipe the exterior of the appliance with a soft, damp cloth. Do not use abrasive cleaners or immerse the main unit in water.
Storage: Ensure the appliance is clean and dry before storing. Wrap the power cord around the cord storage area at the base of the unit. Store in a cool, dry place.

Troubleshooting

Problem	Possible Cause	Solution
Toaster does not operate.	Appliance not plugged in; power outage; toast lever not fully depressed.	Check power connection; ensure toast lever is locked down.
Bread is burnt or too dark.	Browning control set too high.	Adjust browning control to a lower setting. Use the 'Cancel' button if necessary.
Eggs are undercooked or overcooked.	Incorrect water amount; lid not properly closed.	Ensure correct water level is used according to the measuring cup markings. Ensure lid is securely placed. Experiment with water levels based on egg size and desired consistency.
Egg shells crack during boiling.	Eggs not pierced; cold eggs placed directly into hot steam.	Always pierce the larger end of the egg with the provided piercer. Allow very cold eggs to warm slightly at room temperature before cooking.
Egg sticks to poaching tray.	Tray not greased sufficiently.	Lightly grease the poaching tray with oil or butter before adding the egg.

Specifications

Brand: Tefal
Model: TT5500
Power Output: 1200 Watts
Voltage: 240 Volts
Material: Aluminium, Stainless Steel
Product Dimensions: 22.8 cm (Depth) x 40 cm (Width) x 23.4 cm (Height)
Item Weight: 998 Grams
Number of Slices: 2
Special Features: Cancel Function, 5 Browning Control Settings

Warranty and Support

This Tefal appliance is covered by a manufacturer's warranty, typically for a period of one year from the date of purchase, against defects in material or workmanship under normal household use. Please retain your proof of purchase for warranty claims.

For technical assistance, spare parts, or warranty service, please contact Tefal customer support in your region. You can usually find contact details on the official Tefal website or through your retailer.

Tefal TT5500
