1. Product Overview
The Quoizel Hillcrest 1-Light Imperial Bronze Outdoor Hanging Lantern (Model HC1913IB) is designed to provide illumination for outdoor spaces. Its design complements various architectural styles, from classic Arts & Crafts to contemporary homes. The fixture features translucent linen glass to soften light and reduce glare.
Key Features:
- Imperial bronze finish for enhanced aesthetics.
- White linen textured glass diffuses light, minimizing glare.
- Constructed from durable aluminum for longevity.
- Adaptable styling suitable for diverse outdoor environments.
- Compatible with sloped ceiling installations.

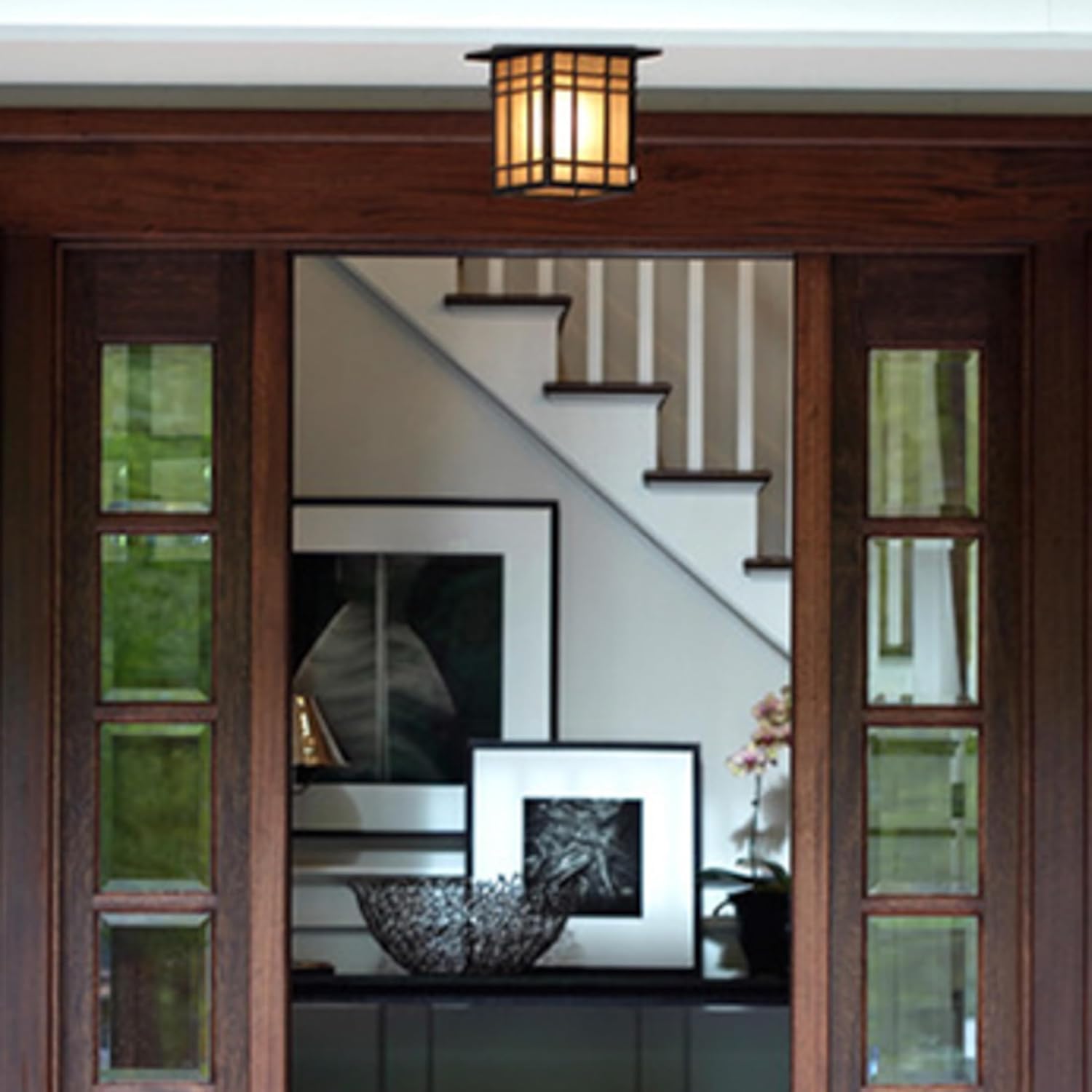

Figure 1: Quoizel Hillcrest 1-Light Imperial Bronze Outdoor Hanging Lantern installed on a porch ceiling.
2. Safety Information
Please read and understand all instructions before beginning installation. Failure to do so may result in electric shock, fire, or other injuries that could be fatal or cause property damage.
- WARNING: To avoid electric shock, disconnect power at the circuit breaker or fuse box before installation.
- All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC).
- Consult a qualified electrician if you are unsure about wiring procedures.
- Use only the specified bulb type and wattage. Do not exceed the maximum wattage.
- This fixture is rated for outdoor damp locations. Ensure all connections are properly sealed to prevent water intrusion.
- Do not install this fixture near flammable materials.
3. Package Contents
Verify that all components are present before proceeding with installation. If any parts are missing or damaged, do not attempt to assemble or install the fixture. Contact customer service for assistance.
- Lantern Fixture (1)
- Mounting Plate/Canopy (1)
- Mounting Hardware (screws, wire nuts)
- Chain (for hanging)
- Instruction Manual (this document)
4. Setup and Installation
This fixture is designed for semi-flush mount installation and can be installed on sloped ceilings. Professional installation is recommended.
Installation Steps:
- Turn off Power: Locate the circuit breaker or fuse box and turn off the power to the junction box where the fixture will be installed.
- Prepare Mounting: Attach the mounting plate to the junction box using the provided screws. Ensure it is securely fastened.
- Adjust Chain Length: Determine the desired hanging height for the lantern. Adjust the chain length by removing links as needed.
- Wiring: Connect the fixture's wires to the corresponding house wires using the provided wire nuts. Connect the black wire (live) to the black wire, the white wire (neutral) to the white wire, and the ground wire to the ground wire. Ensure all connections are tight and secure.
- Secure Fixture: Carefully lift the lantern and connect the chain to the mounting plate. Ensure the fixture is properly supported and all wires are tucked into the junction box.
- Install Bulb: Insert one E26 base bulb (maximum 150 watts, not included) into the socket.
- Restore Power: Turn the power back on at the circuit breaker or fuse box.
Figure 2: Dimensional diagram for Quoizel Hillcrest HC1913IB outdoor lantern, showing 13 inch square base and 18 inch height, with adjustable chain length from 23.25 to 111 inches.
Figure 3: Close-up view of the Imperial Bronze finish and white linen textured glass panels.
5. Operating Instructions
The Quoizel Hillcrest lantern is designed for straightforward operation once installed.
- Power On/Off: The fixture is controlled by a standard wall switch (push button type) or a remote control, depending on your home's electrical setup.
- Dimming: This fixture is dimmable. If connected to a compatible dimmer switch, you can adjust the light output. Ensure your bulb is also dimmable.
- Light Source: The lantern uses one socketed E26 base bulb. For optimal performance and light quality, use a warm white bulb.
6. Maintenance
Regular maintenance ensures the longevity and appearance of your outdoor lantern.
- Cleaning: To clean the fixture, turn off the power and allow it to cool. Wipe the aluminum finish with a soft, damp cloth. For the glass panels, use a mild glass cleaner and a soft cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish or glass.
- Bulb Replacement: Ensure power is off before replacing the bulb. Allow the old bulb to cool completely. Unscrew the old bulb and screw in a new E26 base bulb, not exceeding 150 watts.
- Inspection: Periodically inspect the wiring and mounting hardware for any signs of wear, corrosion, or looseness. Address any issues promptly.
7. Troubleshooting
If you encounter issues with your lantern, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power to the fixture Loose wiring connection Faulty bulb | Check circuit breaker/fuse Verify all wire connections are secure (power off first) Replace bulb |
| Light flickers or is dim | Loose bulb Incompatible dimmer switch Low voltage | Tighten bulb Ensure dimmer is compatible with LED/incandescent bulbs Consult an electrician |
| Fixture is loose | Mounting hardware not secure | Tighten mounting screws (power off first) |
If these steps do not resolve the issue, contact a qualified electrician or Quoizel customer support.
8. Specifications
| Specification | Detail |
|---|---|
| Brand | Quoizel |
| Model Number | HC1913IB |
| Color | Imperial Bronze |
| Material | Aluminum (Fixture), Glass (Shade) |
| Style | Mission |
| Indoor/Outdoor Usage | Outdoor (Damp Location Rated) |
| Power Source | AC/DC |
| Control Method | Remote, Push Button |
| Light Source | Socketed (E26 Base) |
| Number of Light Sources | 1 |
| Voltage | 120 Volts |
| Wattage (Max) | 150 watts |
| Brightness (Max) | 2600 Lumens |
| Water Resistance Level | Water Resistant |
| Mounting Type | Semi Flush Mount, Ceiling Mount |
| Dimensions (L x W x H) | 13"L x 13"W x 18"H |
| Item Weight | 13.5 Pounds |
| Required Assembly | No (Minor installation required) |
| Certification | ETL |
9. Warranty and Support
This Quoizel product comes with a 3-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical support, or to purchase replacement parts, please contact Quoizel customer service or visit the official Quoizel website.
You can find more information about Quoizel products and support at the Quoizel Store on Amazon.
