Tristar SZ-1903 Vacuum Cleaner User Manual

1. Introduction

Thank you for purchasing the Tristar SZ-1903 Vacuum Cleaner. This manual provides important information regarding the safe operation, assembly, maintenance, and troubleshooting of your appliance. Please read this manual thoroughly before using the vacuum cleaner and keep it for future reference.

Safety Instructions

• Always ensure the power supply matches the voltage specified on the rating label.
• Do not use the vacuum cleaner to pick up water or other liquids, hot ashes, sharp objects, or flammable substances.
• Do not operate the appliance with a damaged cord or plug. Contact qualified service personnel for repair.
• Unplug the appliance from the power outlet before cleaning or performing any maintenance.
• This appliance is for household use only. Do not use it outdoors or for commercial purposes.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• Ensure the dust bag is correctly installed before use.

2. Product Overview

The Tristar SZ-1903 is a compact and efficient cylinder vacuum cleaner designed for effective cleaning of hard floors and laminate. It features a powerful 1400 Watt motor with adjustable suction power and uses dust bags for collection.

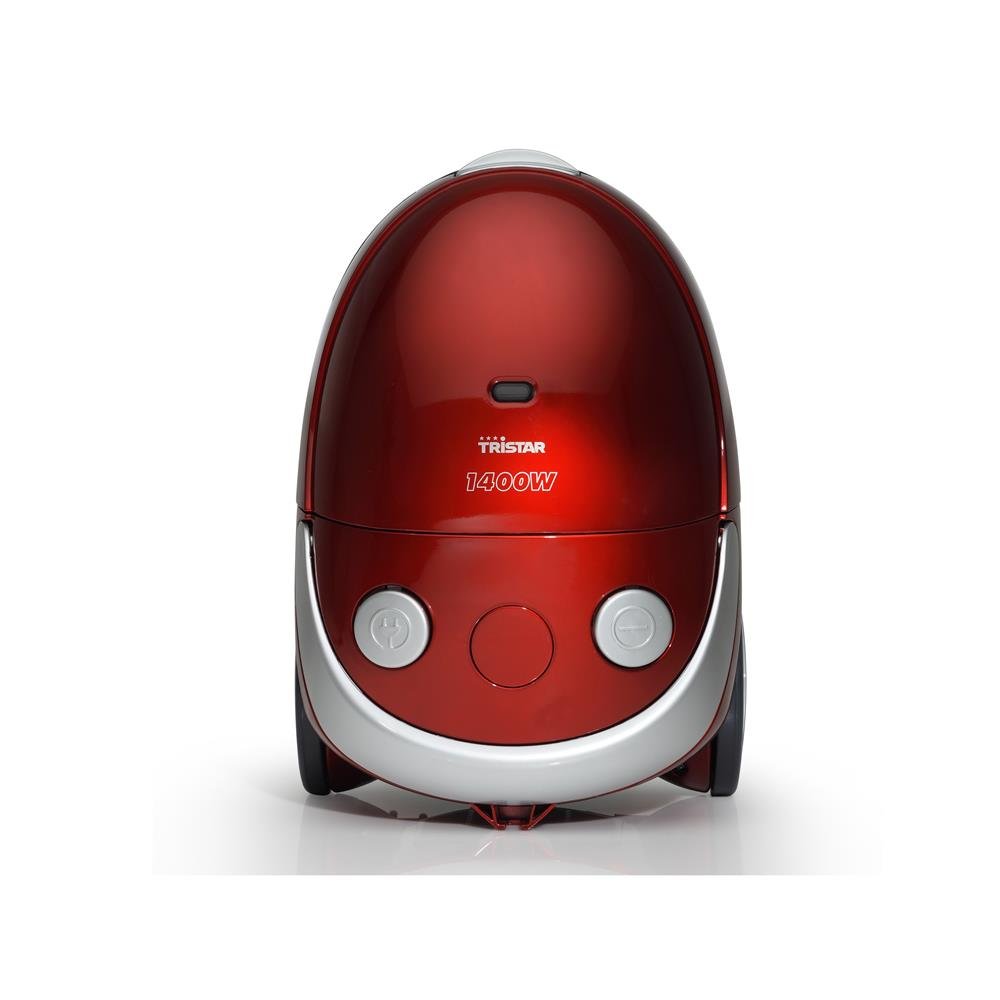

Figure 1: Tristar SZ-1903 Vacuum Cleaner. This image shows the main unit, flexible hose, telescopic tube, and floor nozzle.

Key Features:

• Powerful 1400 Watt motor for excellent suction.
• Adjustable suction power for various cleaning tasks.
• Suitable for use with standard dust bags, including Swirl dust bags.
• Compact design for easy storage.
• Designed for hard floors and laminate.

3. Setup and Assembly

Follow these steps to assemble your Tristar SZ-1903 vacuum cleaner before first use.

1. Attach the Flexible Hose: Insert the large end of the flexible hose into the suction inlet on the main unit until it clicks securely into place.
2. Connect the Telescopic Tube: Attach the handle end of the flexible hose to the wider end of the telescopic tube.
3. Attach the Floor Nozzle: Connect the desired floor nozzle (e.g., for hard floors) to the narrow end of the telescopic tube. Ensure it is firmly attached.
4. Install Dust Bag: Open the dust bag compartment cover. Insert a new dust bag, ensuring the cardboard collar is properly seated in the holder. Close the cover firmly until it latches.
5. Power Connection: Extend the power cord from the appliance and plug it into a suitable electrical outlet (230V).

4. Operating Instructions

Operating your Tristar SZ-1903 vacuum cleaner is straightforward. Follow these guidelines for optimal cleaning performance.

1. Power On/Off: Press the power button located on the main unit to turn the vacuum cleaner on or off.
2. Adjust Suction Power: Use the suction control slider or dial (if present) on the main unit or hose handle to adjust the suction power according to the surface being cleaned. Lower suction is suitable for delicate fabrics, while higher suction is for hard floors and heavily soiled areas.
3. Vacuuming: Guide the floor nozzle over the surface to be cleaned. For best results, move the nozzle slowly and steadily.
4. Cord Rewind: After use, unplug the vacuum cleaner from the wall outlet. Press the cord rewind button (if present) to automatically retract the power cord into the unit. Guide the cord manually to prevent tangling.
5. Storage: Store the vacuum cleaner in a dry place. The telescopic tube can be collapsed for compact storage.

5. Maintenance and Cleaning

Regular maintenance ensures the longevity and optimal performance of your vacuum cleaner. Always unplug the appliance before performing any maintenance.

Dust Bag Replacement

• The dust bag should be replaced when the dust bag full indicator (if present) illuminates, or when suction power noticeably decreases.
• Open the dust bag compartment cover.
• Carefully remove the full dust bag from its holder. Dispose of it responsibly.
• Insert a new dust bag, ensuring the cardboard collar is correctly positioned in the bag holder.
• Close the dust bag compartment cover firmly until it latches.

Filter Cleaning/Replacement

Your vacuum cleaner is equipped with motor protection filters and possibly an exhaust filter. These should be checked regularly and cleaned or replaced as needed.

• Motor Protection Filter: This filter is usually located near the dust bag compartment. Remove it and tap out any loose dust. If washable, rinse under cold water and allow to air dry completely before reinserting.
• Exhaust Filter: This filter is typically located at the rear or side of the vacuum cleaner. Check its condition and replace it if it appears heavily soiled or damaged.
• Note: Never operate the vacuum cleaner without all filters properly installed.

General Cleaning

• Wipe the exterior of the vacuum cleaner with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Check the hose, telescopic tube, and nozzles for blockages. Remove any debris that may be obstructing airflow.

6. Troubleshooting

If you encounter problems with your Tristar SZ-1903 vacuum cleaner, refer to the following table for common issues and solutions.

If the problem persists after trying these solutions, please contact Tristar customer support.

7. Technical Specifications

8. Warranty and Customer Support

Tristar products are manufactured to high quality standards. In the unlikely event of a defect, your product is covered by the terms and conditions of the warranty applicable in your country of purchase. Please refer to the official Tristar website or your purchase documentation for detailed warranty information.

For technical assistance, spare parts, or any questions regarding your Tristar SZ-1903 vacuum cleaner, please contact Tristar customer support through their official website or the contact information provided with your product.
